Land Rover
>>
2002
>>
Discovery II (LT) V8-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>
Power Heated
Power Heated

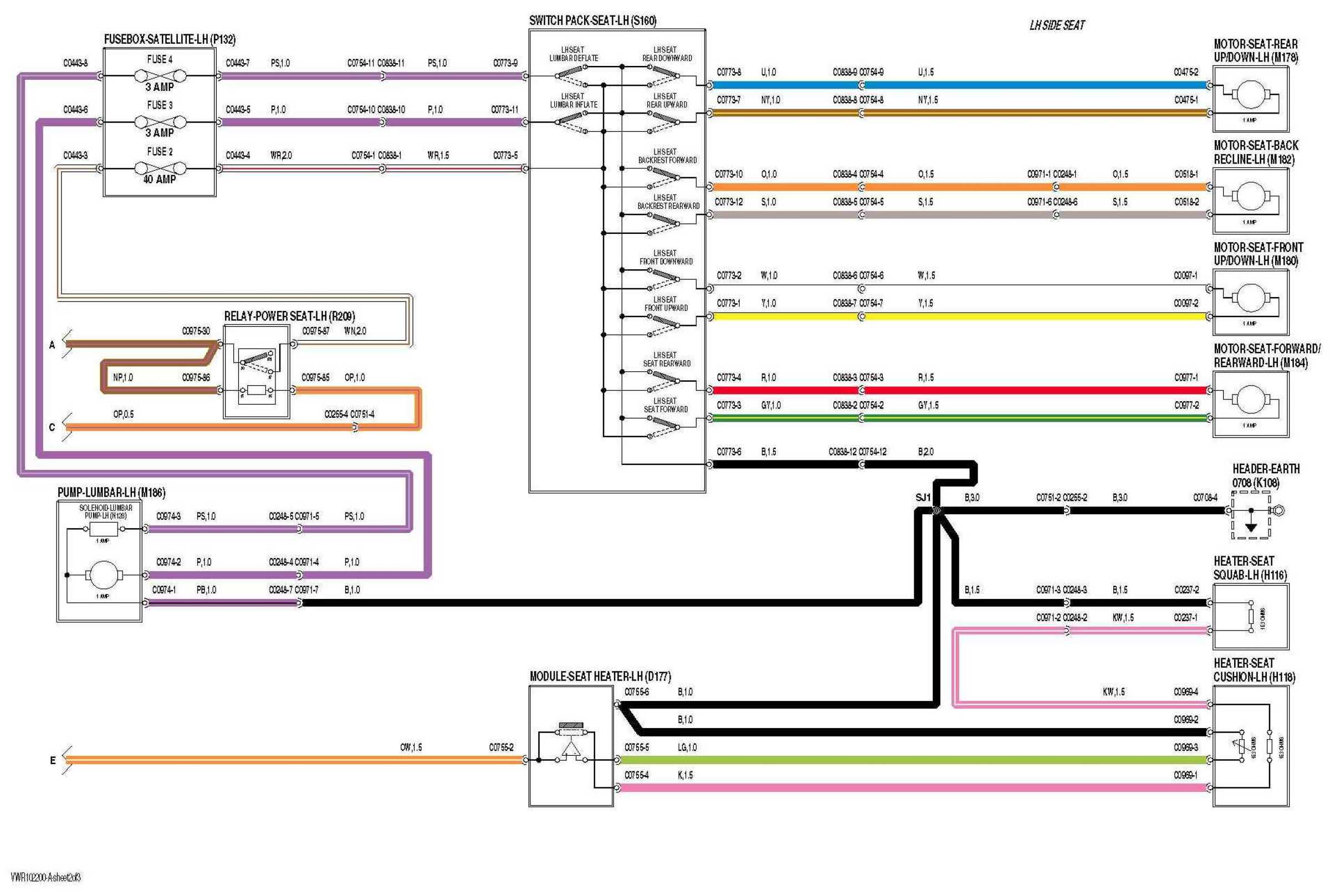

Power Heated Seats - Part 1:

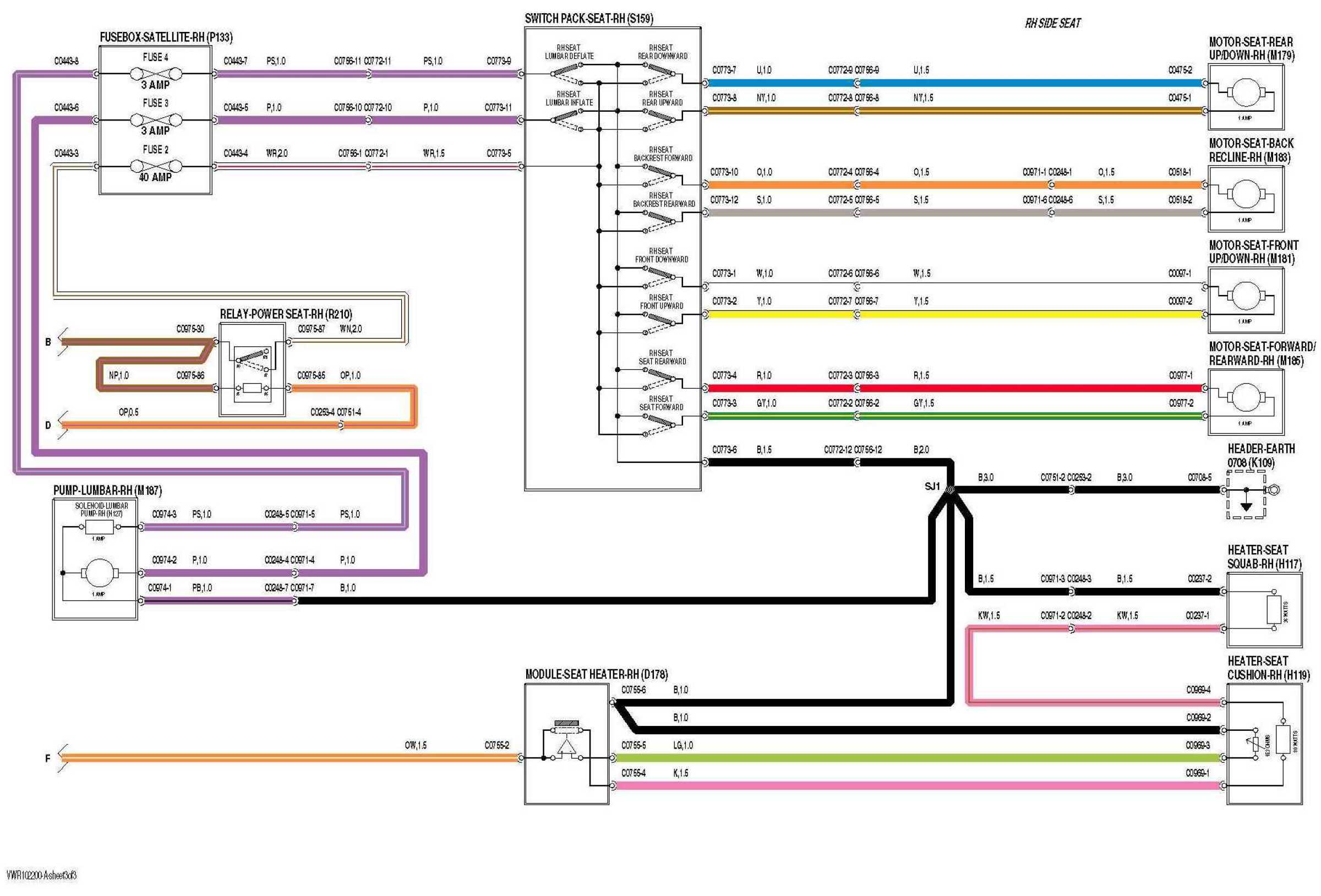

Power Heated Seats - Part 2:

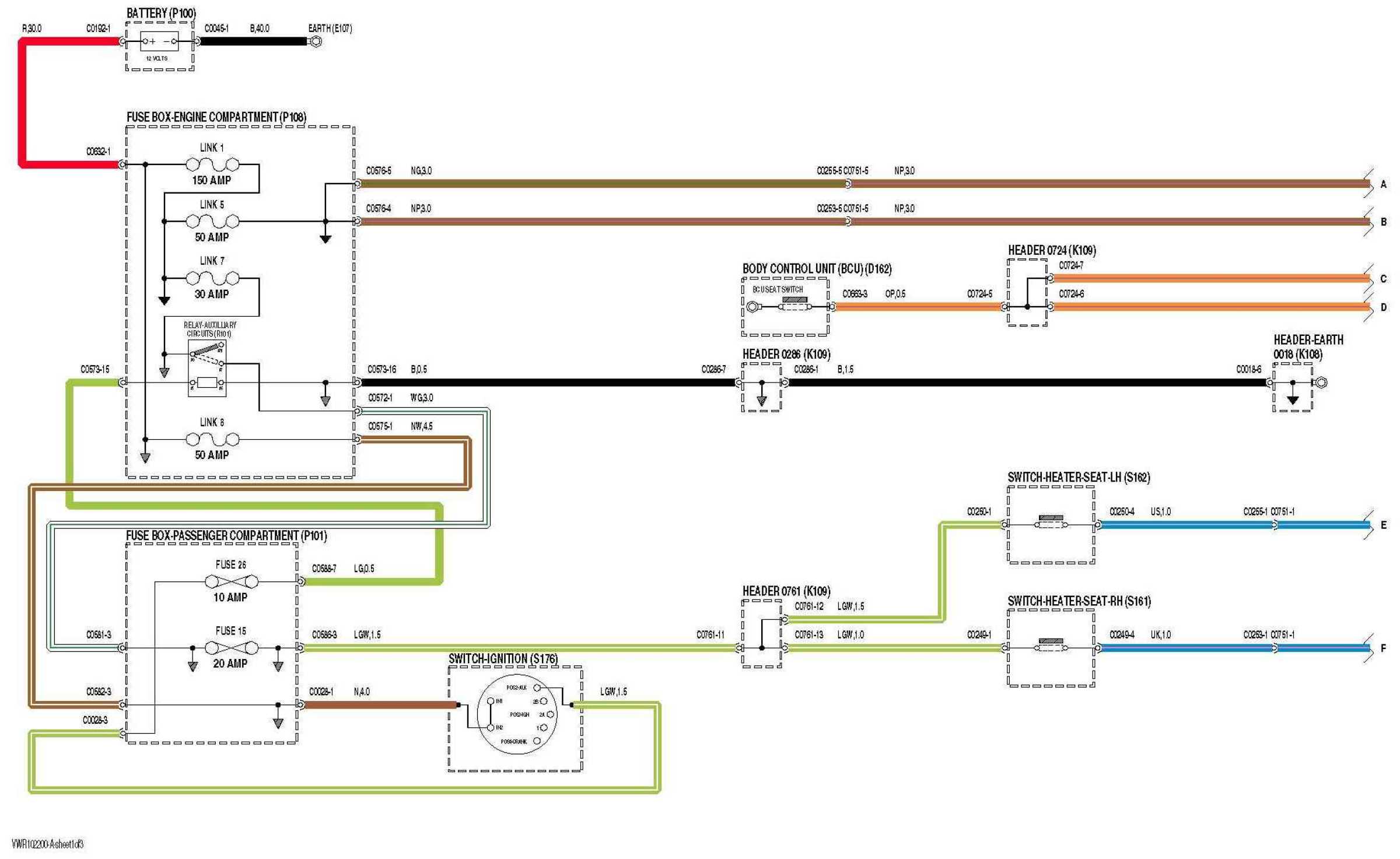

Power Heated Seats - Part 3:
