Anti-Lock Brake System (ABS)



Anti-Lock Brake System - Part 1

Anti-Lock Brake System - Part 1:

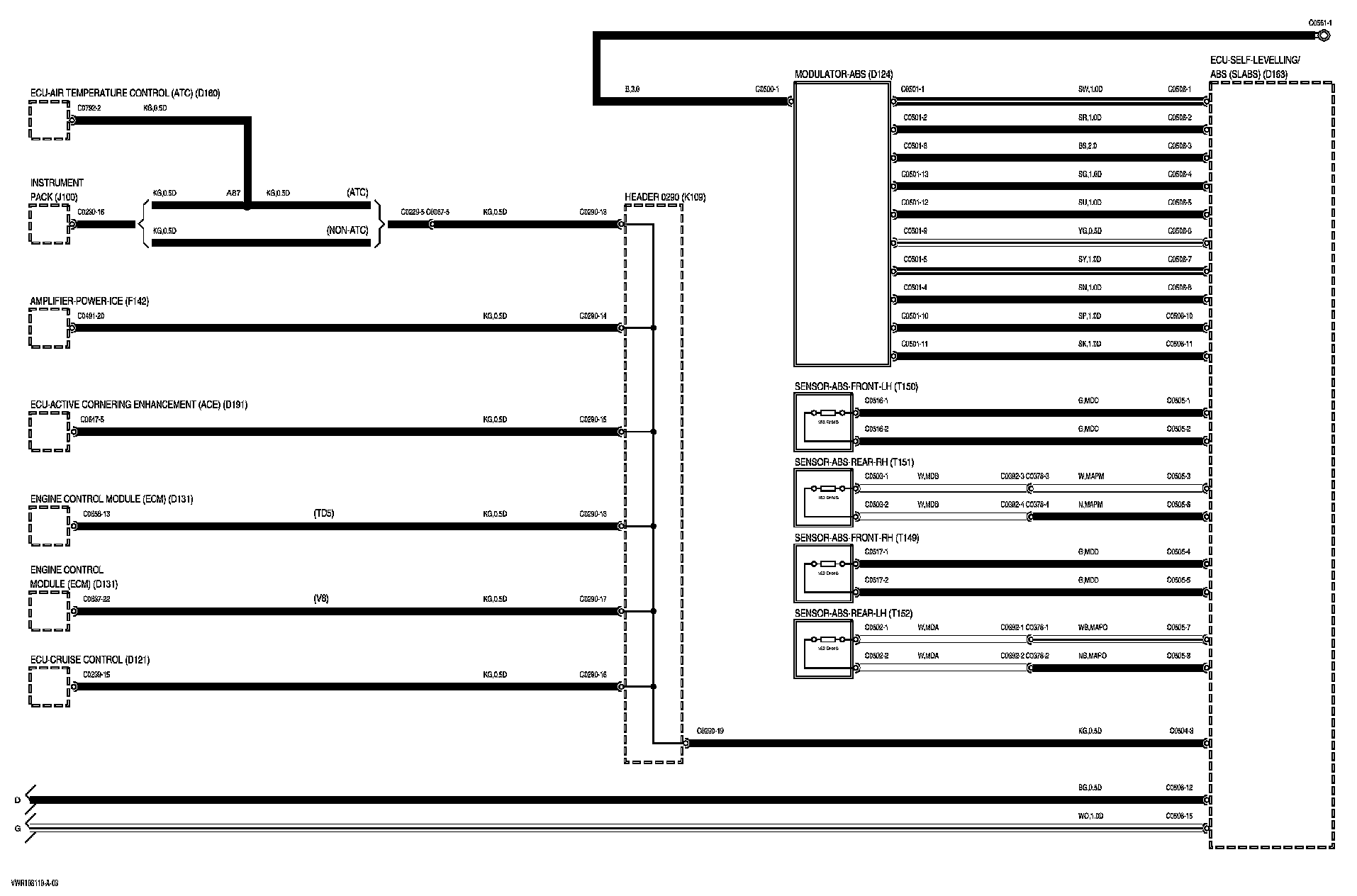

Anti-Lock Brake System - Part 2

Anti-Lock Brake System - Part 2:





Anti-Lock Brake System - Part 3

Anti-Lock Brake System - Part 3:
