Switch - Clutch Pedal - Cruise Control

Switch - Clutch Pedal - Cruise Control

Remove

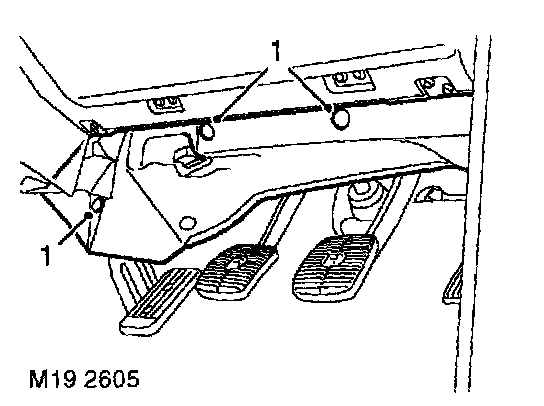

1. Remove 3 fasteners and move driver's side lower closing panel aside.

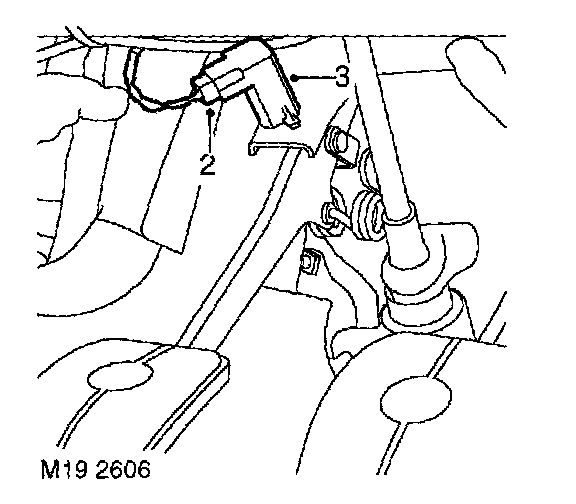

2. Disconnect multiplug from clutch pedal switch.
3. Remove switch from pedal bracket.

Refit
1. Engage switch fully into pedal bracket location and connect multiplug.
2. Position lower closing panel and secure with fasteners.
