Trunk / Liftgate Shock / Support: Service and Repair

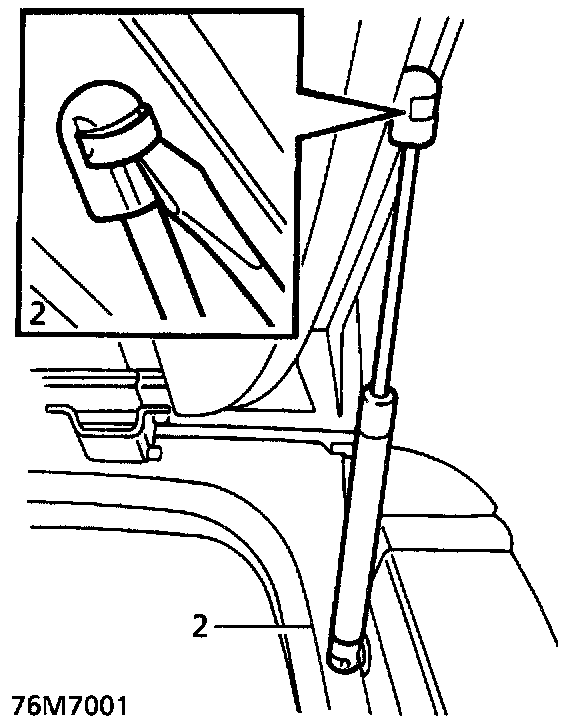

Tailgate Strut

Service Repair No - 76.40.33

Remove
1. Secure tailgate in open position using suitable support.
2. Release clips securing strut to ball joints. Remove strut.





Refit
3. Reverse removal procedure.
