Tailgate Latch

Tailgate Latch

Service Repair No - 76.37.17

Remove

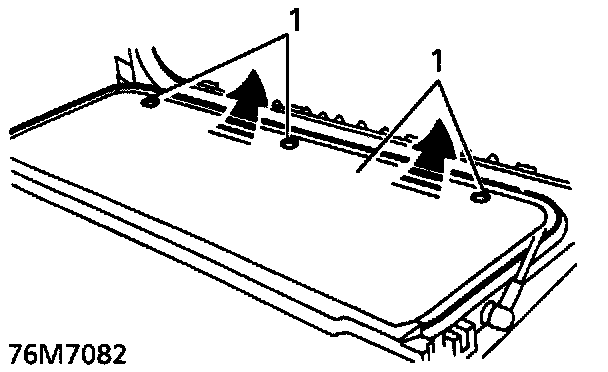

1. Release studs securing tailgate board. Remove board.

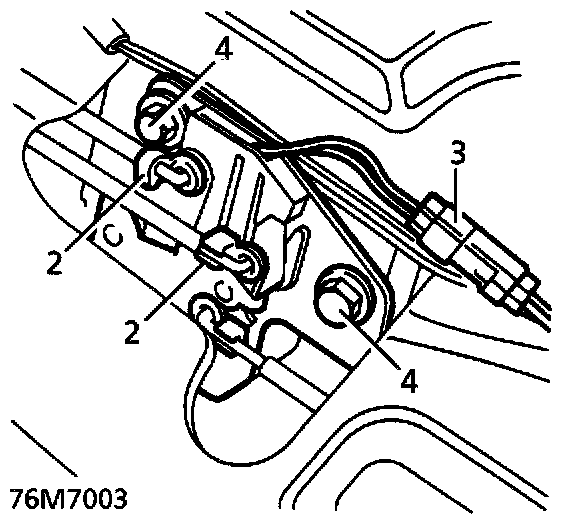

2. Release clips securing operating rods to tailgate center latch. Release rods.





3. Disconnect latch multiplug.
4. Remove 2 bolts securing latch to tailgate. Remove latch.

Refit
5. Reverse removal procedure.
