Parking Brake Lever: Service and Repair

PARK BRAKE LEVER

70.45.01


Remove
1. Raise vehicle on four post lift.
2. Disconnect battery negative lead.
3. Remove center console.

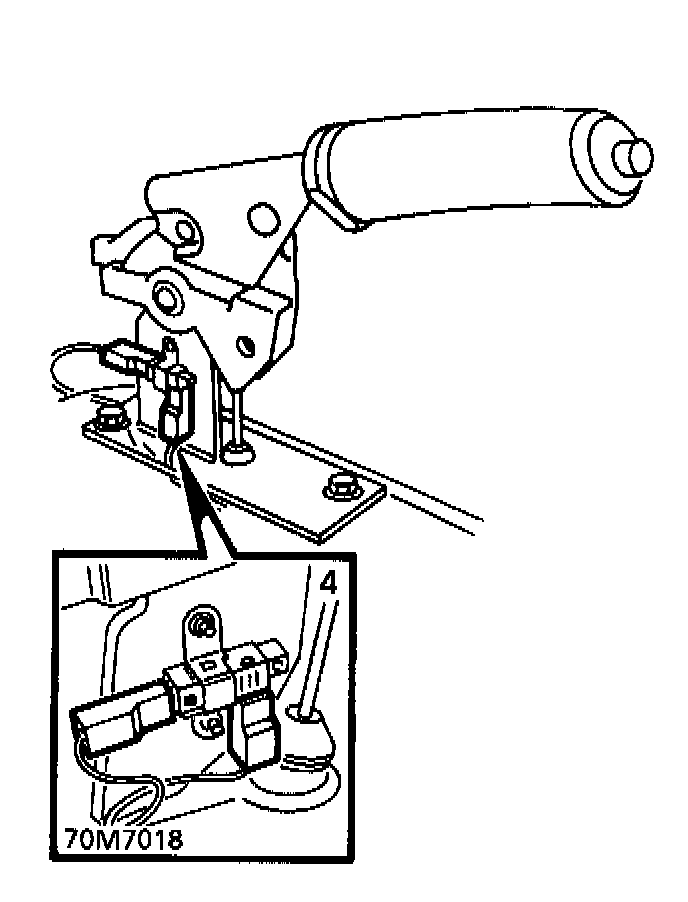

4. Disconnect 2 Lucars from parking brake warning switch.
5. Raise lift.

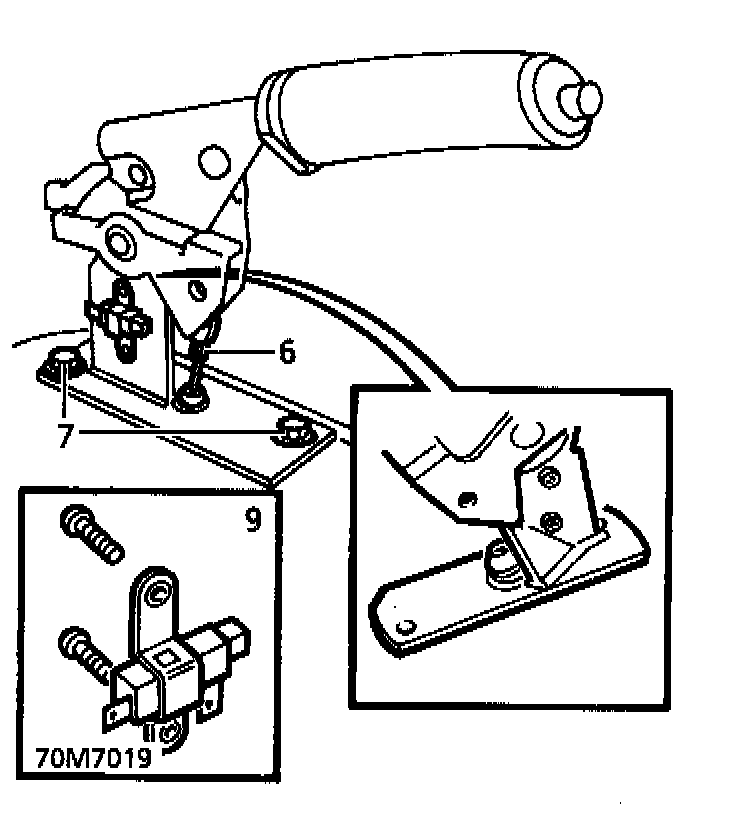

6. Pull brake cable through grommet in base of lever.





7. Remove 2 bolts securing lever. Remove lever.
8. Remove grommet from lever.
9. Remove 2 screws securing warning switch. Remove switch.


Refit
10. Reverse removal procedure.
11. Adjust parking brake. See Adjustment.
