Parking Brake Cable: Service and Repair

PARKING BRAKE CABLE

70.35.25


Remove
1. Raise vehicle on four post lift.
2. Remove master switch pack from center console.

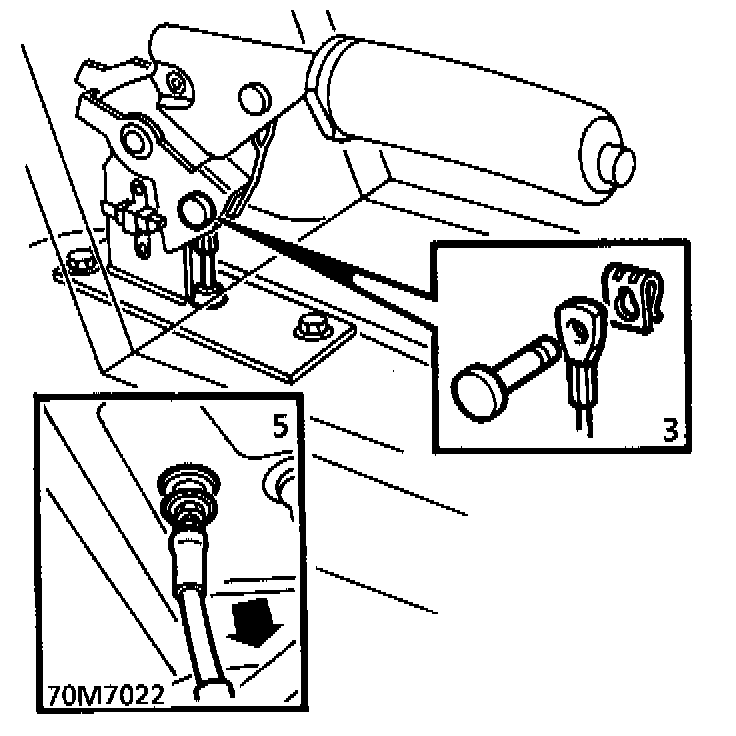

3. Remove clevis pin securing brake cable to lever.
4. Raise lift.
5. From under vehicle pull cable through grommet in floor. Refit grommet to floor.
6. Remove brake shoes.

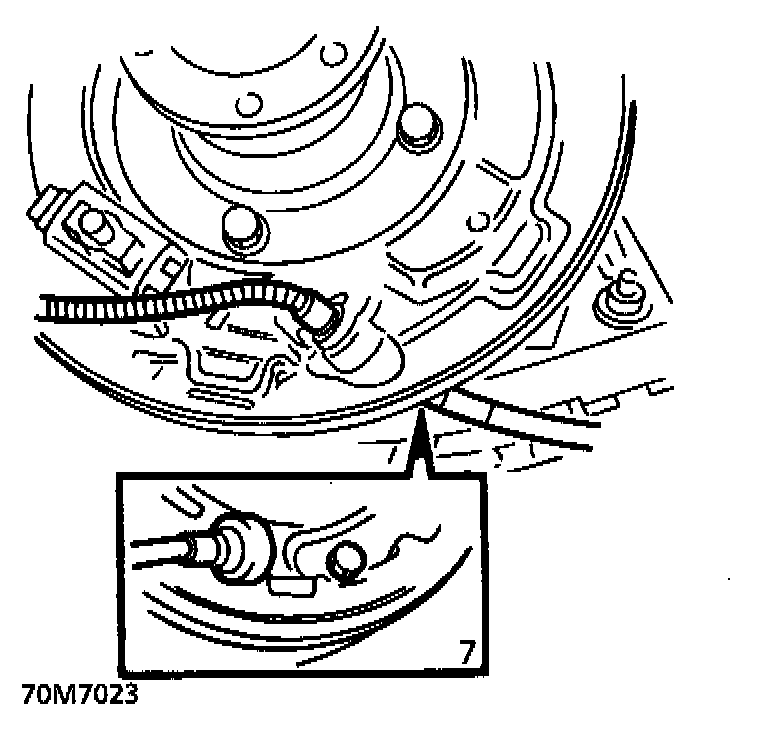

7. Release cable from backplate.


Refit
8. Fit cable to backplate.
9. Fit brake shoes and drum.
10. Feed brake cable through grommet into vehicle.
11. From inside vehicle, align cable to handbrake lever. Secure with clevis pin and clip.
12. Fit master switch pack.
13. Adjust parking brake.
