Rear Seat Belt - Right Hand

REAR SEAT BELT - RIGHT HAND

Service repair no - 76.73.24

Remove

1. Remove parcel shelf support trim.
2. Remove 'D' post lower trim.
3. Remove cover and nut securing seat belt to upper anchorage point.
4. Remove bolt securing seat belt reel.







5. Remove seat belt reel.
6. Remove right hand rear seat.

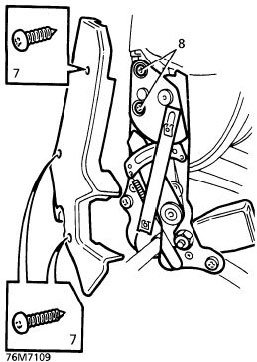

7. Remove 3 screws securing squab hinge cover. Remove cover.







8. Remove 2 bolts securing squab to cushion assembly. Remove squab.
9. Release beaded edge of cushion cover from seat pan flange. Remove cushion cover/foam assembly.
