Rear Seat Belt - Left Hand

REAR SEAT BELT - LEFT HAND

Service repair no - 76.73.23

Remove

1. Remove parcel shelf support trim.
2. Remove 'D' post lower trim.
3. Remove cover and nut securing seat belt to upper anchorage point.
4. Remove bolt securing seat belt reel.







5. Remove seat belt reel.
6. Remove left hand rear seat.

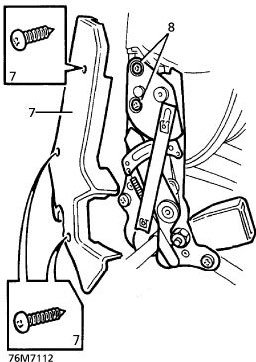

7. Remove 3 screws securing squab hinge cover. Remove cover.







8. Remove 2 bolts securing squab to cushion assembly.
9. Remove squab from cushion assembly.
10. Remove bolt and wave washer securing stalk to squab hinge.
11. Remove stalk. Collect plain washer.

Refit

12. Fit stalk to squab hinge. Secure with bolt.
Tighten to 35 Nm. (26 lbf.ft)

13. Position seat squab to cushion assembly.
Secure with bolts. Tighten to 45 Nm. (33 lbf.ft)

14. Refit squab hinge cover. Secure with screws.
15. Refit rear seat assembly.
16. Position belt to upper anchorage point. Secure with nut. Tighten to 25 Nm. (18 lbf.ft). Fit cover.
17. Position seat belt reel. Secure with bolt. Tighten to 35 Nm. (26 lbf.ft)
18. Fit 'D' post lower trim.
19. Fit parcel shelf support trim.
