Seat Belt Tensioner: Service and Repair

Pre-Tension - Seat Belt - Front

Service Repair No - 76.73.75

Remove


WARNING: See SRS safety precautions before commencement of repair. See SUPPLEMENTARY RESTRAINT SYSTEM, Precautions.


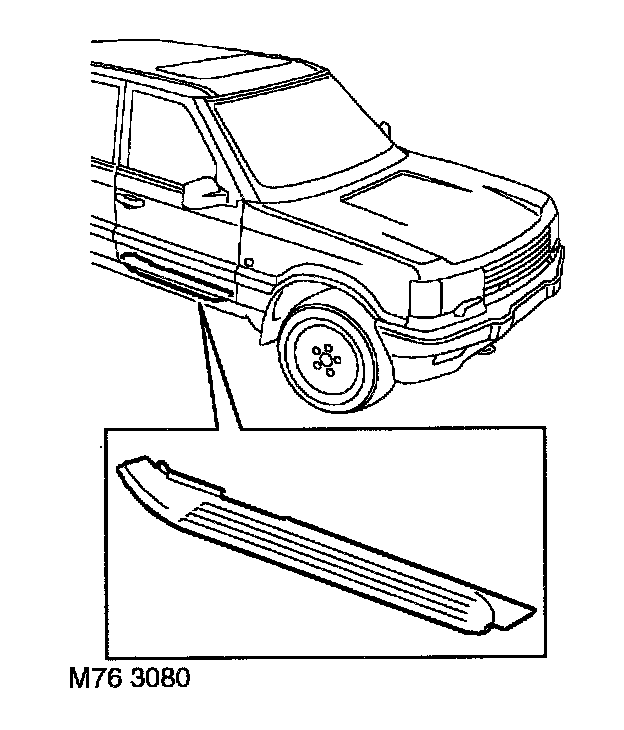

1. Remove 'B' post lower finisher.

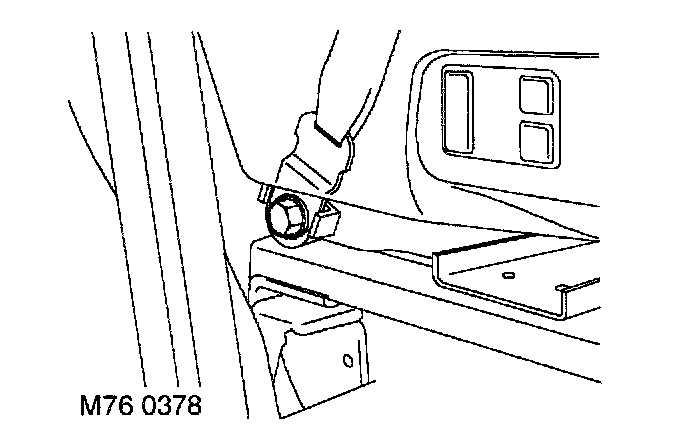

2. Remove bolt securing seat belt to seat and release belt from seat.

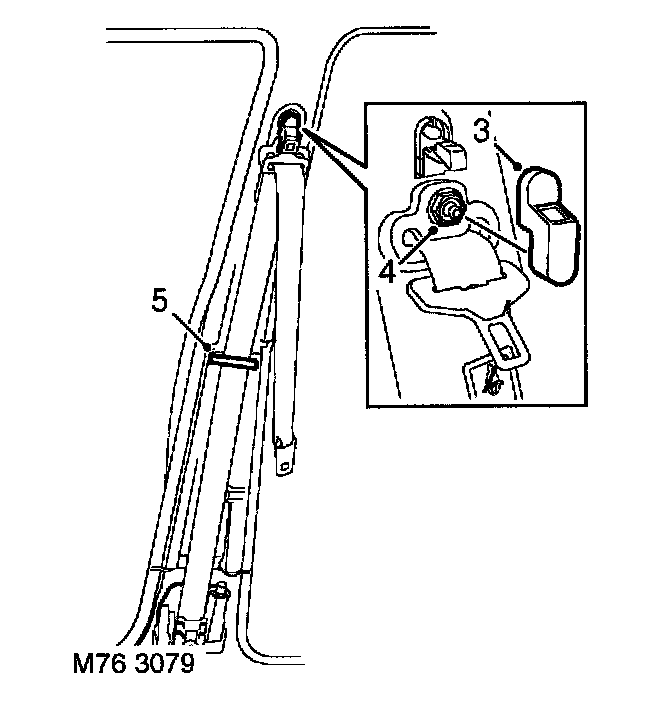

3. Remove cover from upper mounting.
4. Remove nut from upper mounting.
5. Release seat belt guide from 'B' post.







6. Remove front carpet retainer.

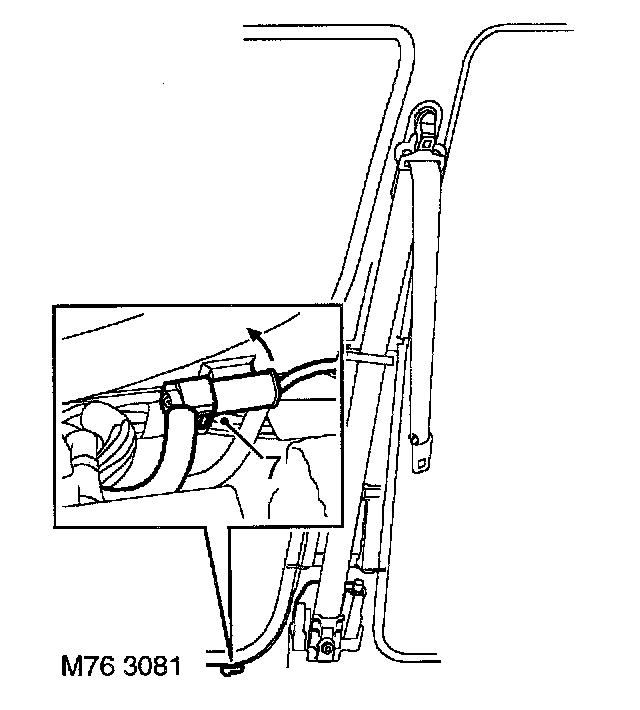

7. Release pre-tensioner multiplug from inner sill and disconnect multiplug.

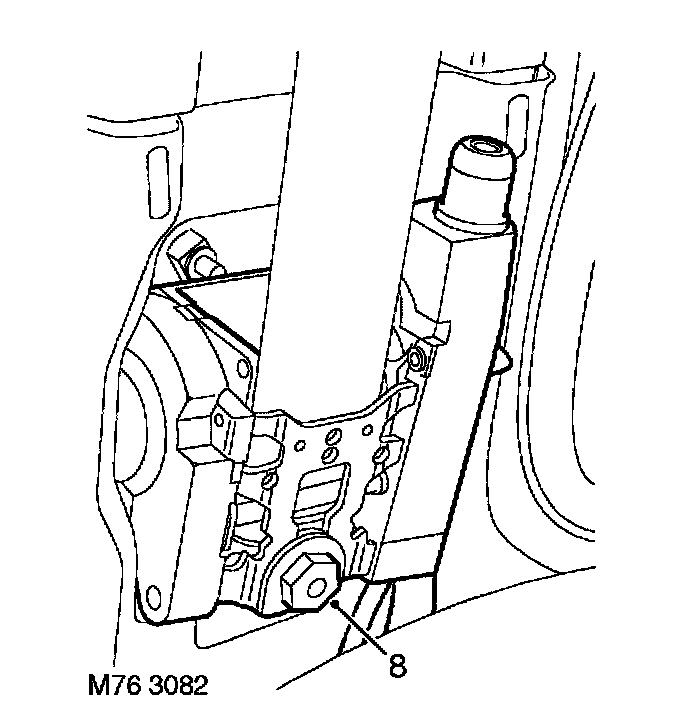

8. Remove bolt securing belt reel to 'B' post. Remove reel.


WARNING: Store pre-tensioner in accordance with storage procedures. See SUPPLEMENTARY RESTRAINT SYSTEM, Precautions.


Refit
9. Fit reel, fit bolt and tighten to 32 Nm (24 lbf. ft).
10. Connect pre-tensioner multiplug and secure to inner sill.
11. Fit front carpet retainer.
12. Extend belt and secure belt guide to 'B' post.
13. Locate belt to upper mounting, fit nut and tighten to 22 Nm (16 lbf. ft)
14. Fit cover to upper mounting.
15. Position belt to seat mounting, fit bolt and tighten to 32 Nm (24 lbf. ft)
16. Fit 'B' post lower finisher.
17. Connect battery, earth lead last.
18. Check SRS using TestBook.
