Evaporative Emission Control Canister: Service and Repair

Service repair no - 17.15.13

Remove
1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.
3. Raise vehicle on lift.

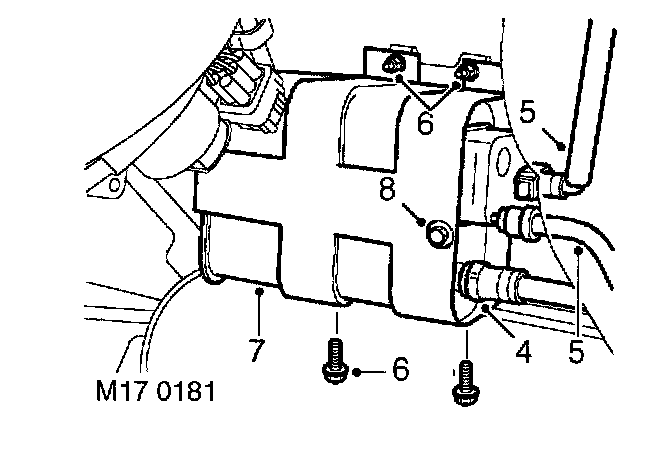

4. Release clip and disconnect air hose from canister.
5. Release and remove purge and tank pipes from canister.
6. Remove 2 nuts and 2 bolts securing charcoal canister to chassis.
7. Remove charcoal canister.
8. Remove bolt securing bracket to canister and remove canister.


! CAUTION: Plug the connections.


Refit
9. Fit bracket to canister and secure with bolt.
10. Fit canister to chassis and secure with nuts and bolts.
11. Ensure all connections are clean.
12. Connect purge and tank pipes to canister.
13. Connect air hose to canister and secure hose with clip.
14. Lower vehicle.
15. Connect battery earth lead.
16. Fit battery cover and secure with fixings.
