Rear Engine Mounting

REAR ENGINE MOUNTING
Service repair no - 12.45.08


Remove
1. Raise vehicle on 4 post ramp.
2. Support transmission using a suitable stand.

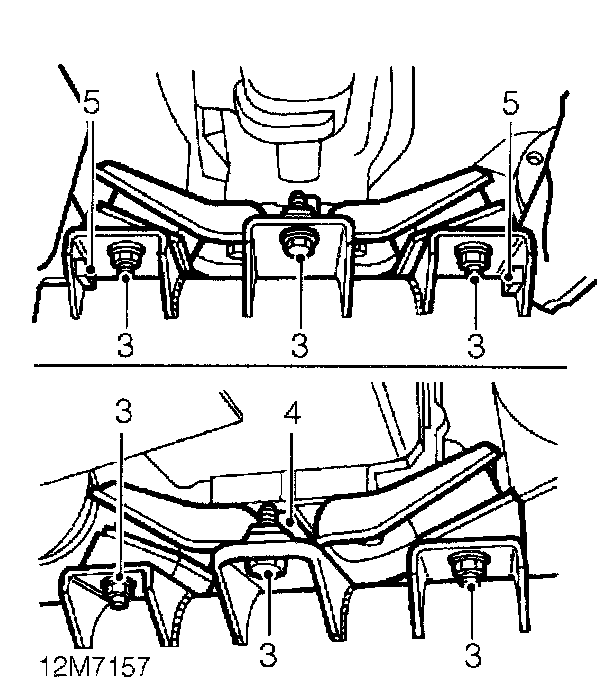

3. Remove 4 nuts and 2 bolts securing mounting to crossmember and discard nuts.
4. Remove transmission snubber bar.
5. If applicable, remove 2 bolts securing rear of gearbox side acoustic covers to crossmember.

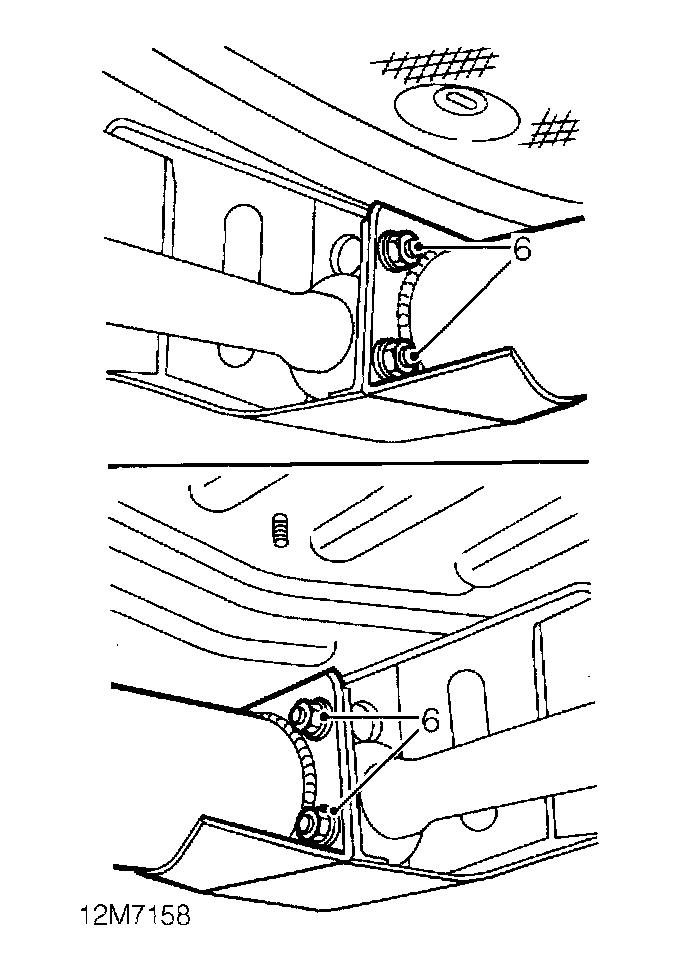

6. Remove 3 of 4 nuts and bolts securing each side of crossmember to chassis.
7. With assistance, remove remaining bolt securing crossmember and remove crossmember.

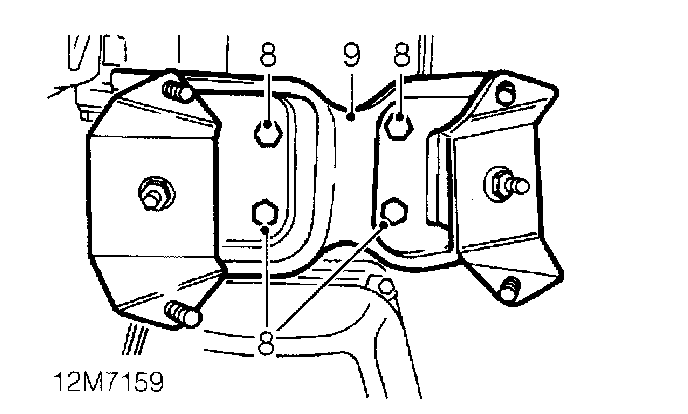

8. Remove 4 bolts securing mounting to gearbox.
9. Remove mounting assembly.


Refit

CAUTION: Ensure all under body wax is removed from mating surfaces of fixings before fitting.

10. Fit mounting to gearbox, fit bolts and tighten to 45 Nm (33 ft. lbs.)
11. Using assistance, fit crossmember to chassis.
12. Fit nuts and bolts and tighten to 45 Nm (33 ft. lbs.)
13. Fit transmission snubber bar.
14. Fit NEW flange nuts and bolts securing transmission mount to crossmember and tighten to 45 Nm (33 ft. lbs.)
15. Remove transmission stand.
16. If applicable, align rear of side acoustic covers to crossmember and secure with bolts.
