Engine Mountings

ENGINE MOUNTINGS
Service repair no - 12.45.11 - LH
Service repair no -12.45.12 - RH


Remove
1. With assistance, release bonnet struts and retain bonnet in vertical position with stay clips.
2. Release fixings and remove battery cover.
3. Disconnect battery earth lead.

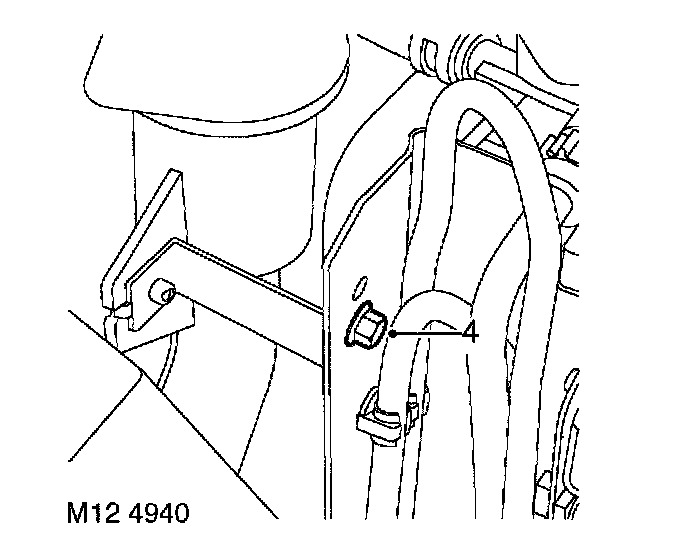

4. Remove bolt securing screen washer filler tube.

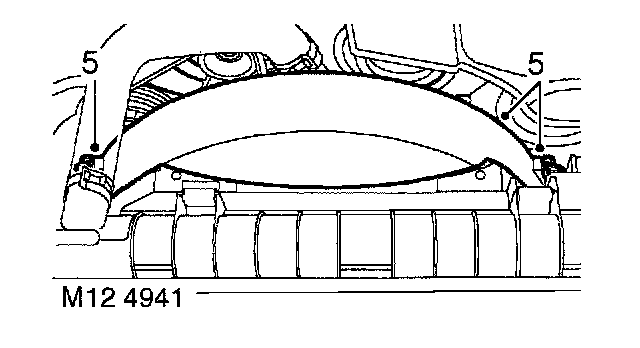

5. Release 2 clips and remove cooling fan cowl.





6. Remove ties securing harness to support bracket at rear of engine and move harness clear of bracket.
7. Remove bolt securing harness support bracket and remove bracket.
8. Right hand engine mounting: Fit suitable lifting eye to alternator fixing bolt.
9. RHD - Right hand engine mounting: Remove steering column intermediate shaft.
10. Raise vehicle on 4 post ramp.

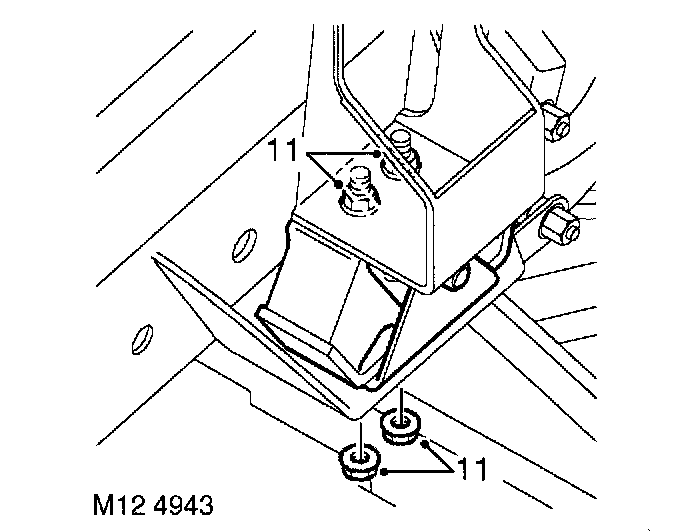

11. Remove and discard 4 nuts securing engine mounting.
12. Connect hoist to lifting eye and raise relevant side of engine.
13. Remove engine mounting.


Refit
14. Fit engine mounting. Ensure domed head of center bolt faces towards chassis.
15. Carefully lower engine onto mounting and disconnect hoist.
16. Fit new engine mounting nuts and tighten to 45 Nm (33 ft. lbs.).
17. Lower vehicle.
18. RHD - Right hand engine mounting: Fit steering column intermediate shaft.
19. Right hand mounting: Remove lifting eye from alternator fixing bolt.
20. Fit harness support bracket and secure with bolt.
21. Lay harness onto bracket and secure with cable ties.
22. Fit cooling fan cowl and secure with clips.
23. Fit bolt to secure screen washer reservoir filler tube.
24. Connect battery earth lead.
25. Fit battery cover and secure with fixings.
26. With assistance, release bonnet stay clips and engage bonnet struts.
