Land Rover
>>
2000
>>
Range Rover (LP) V8-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Seat Temperature Element

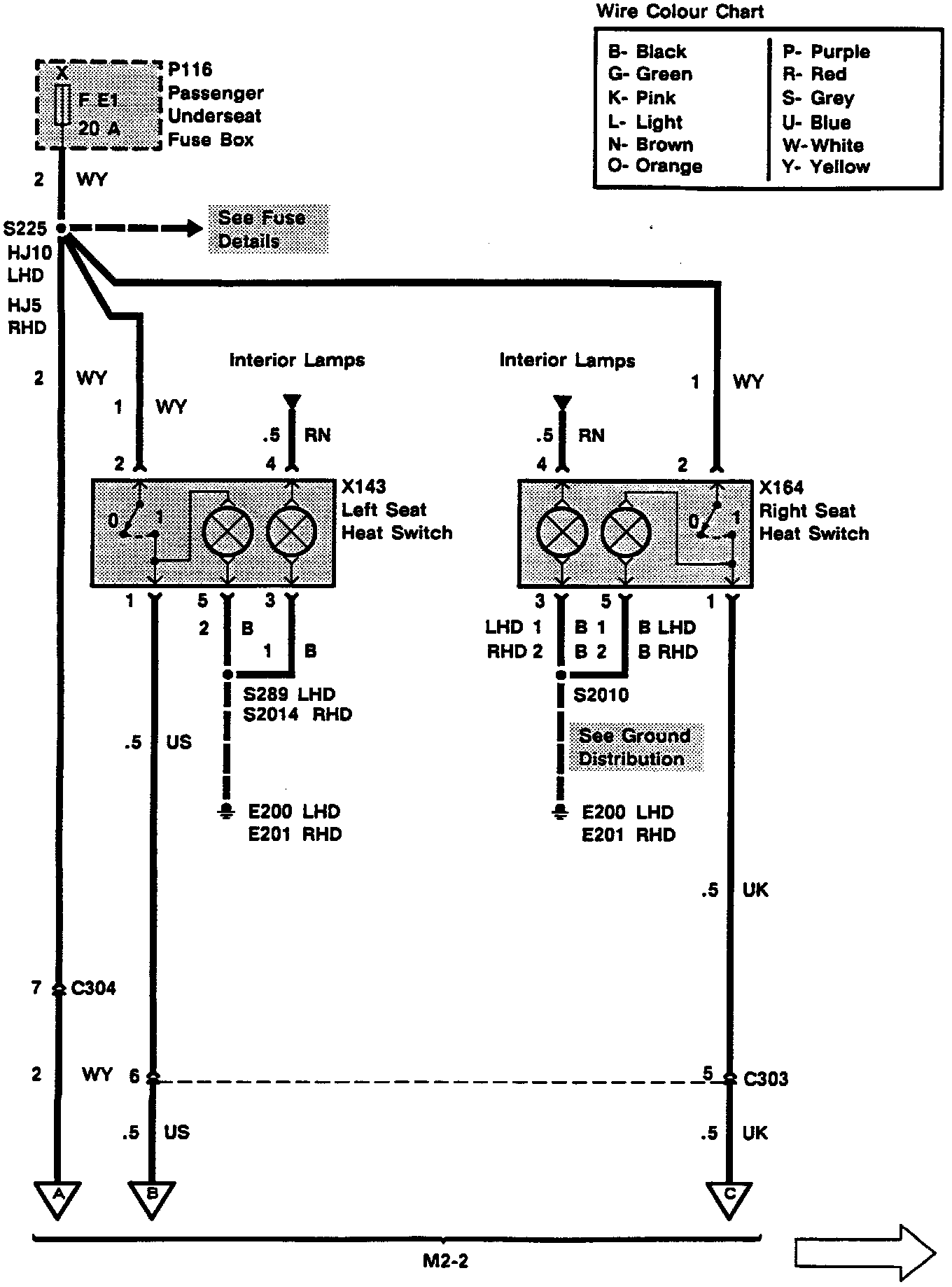

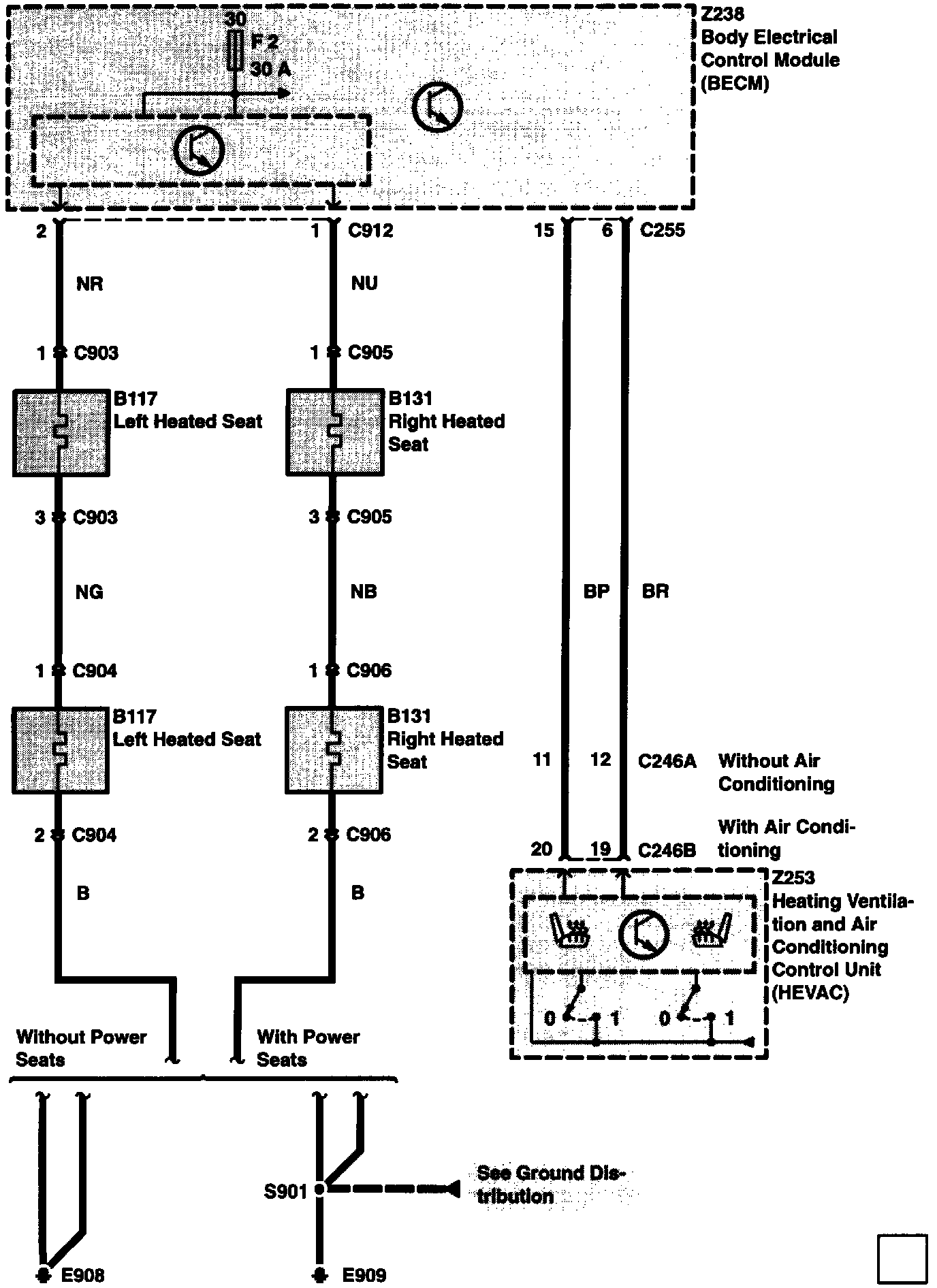

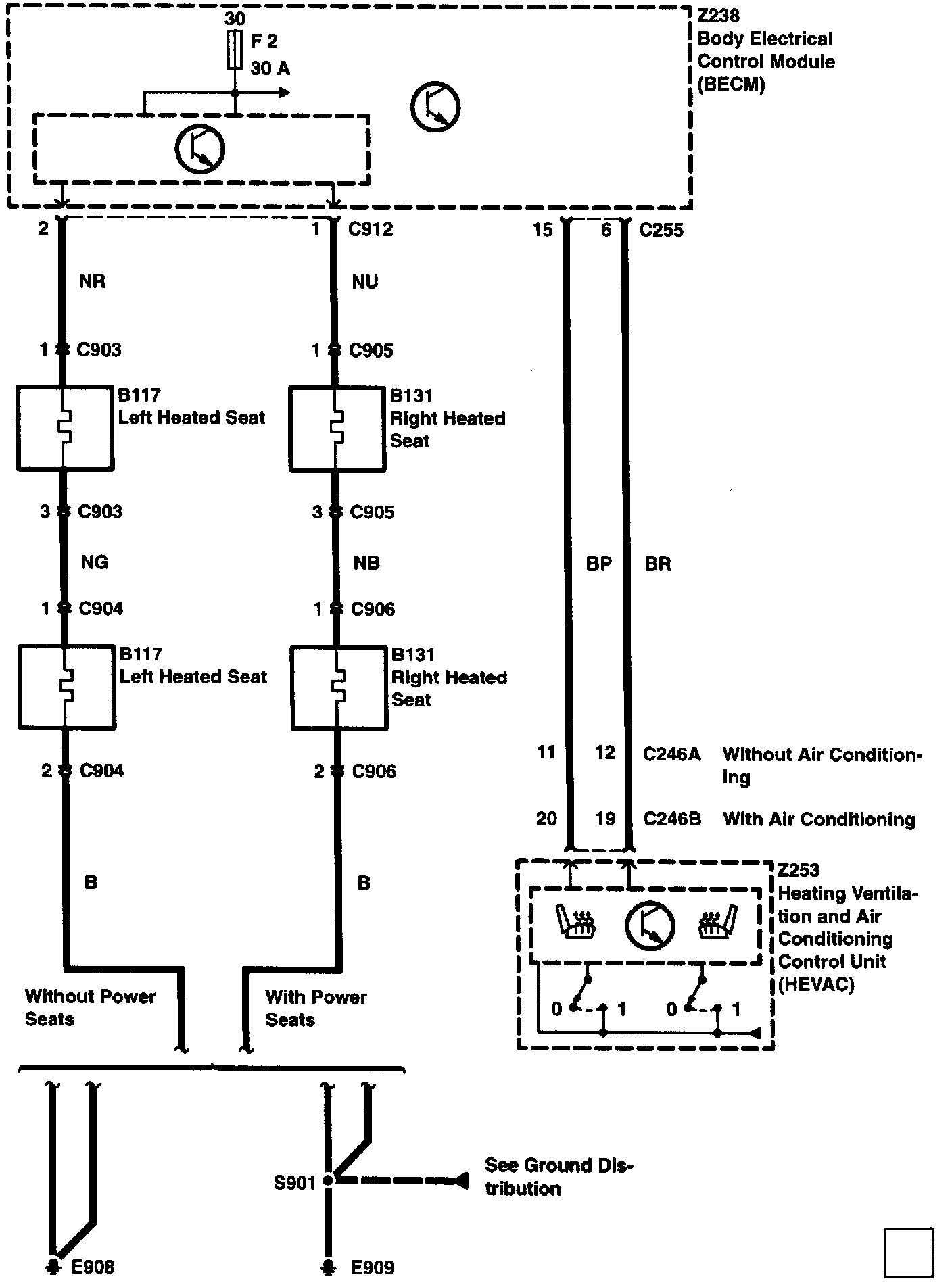

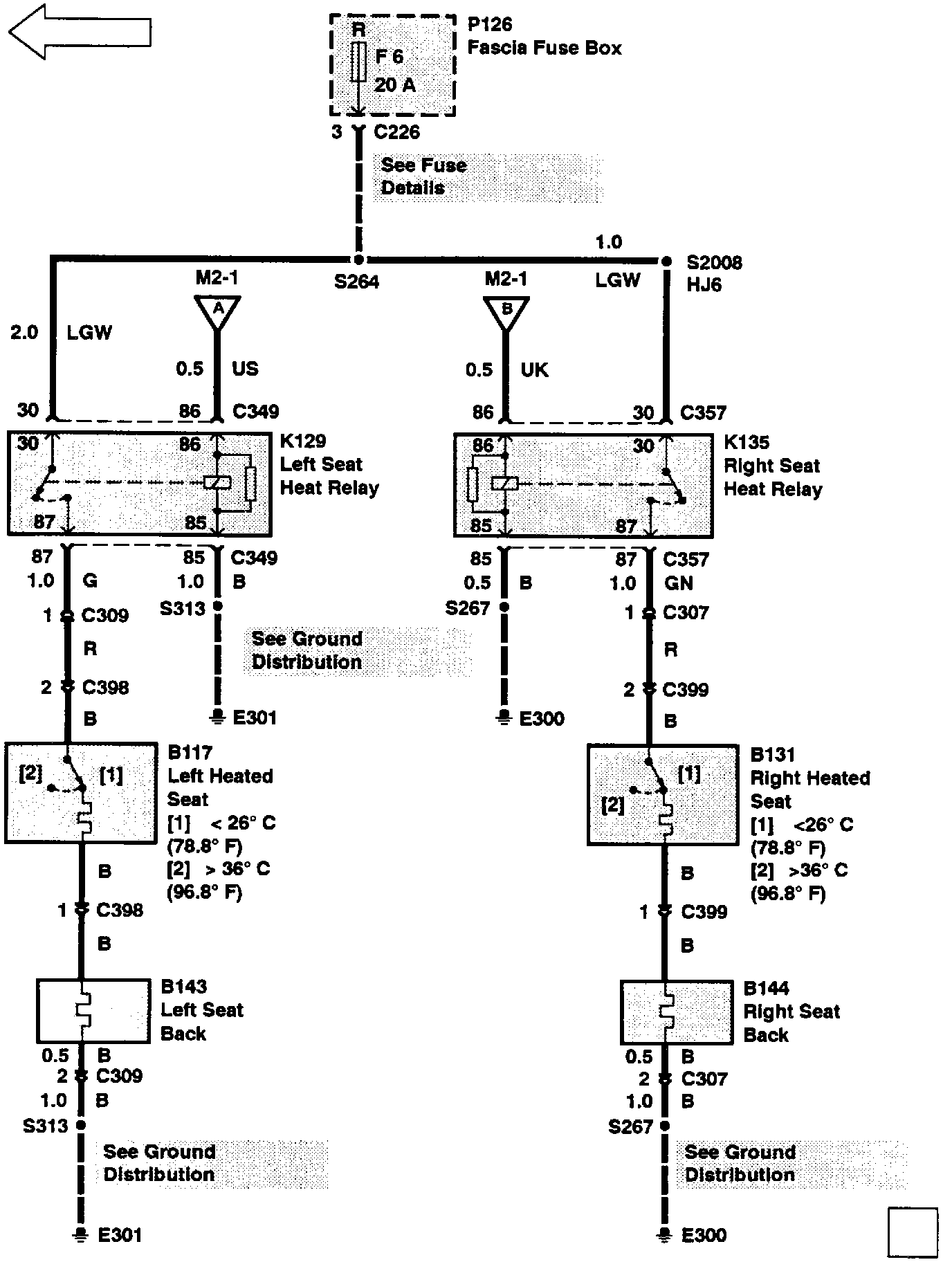

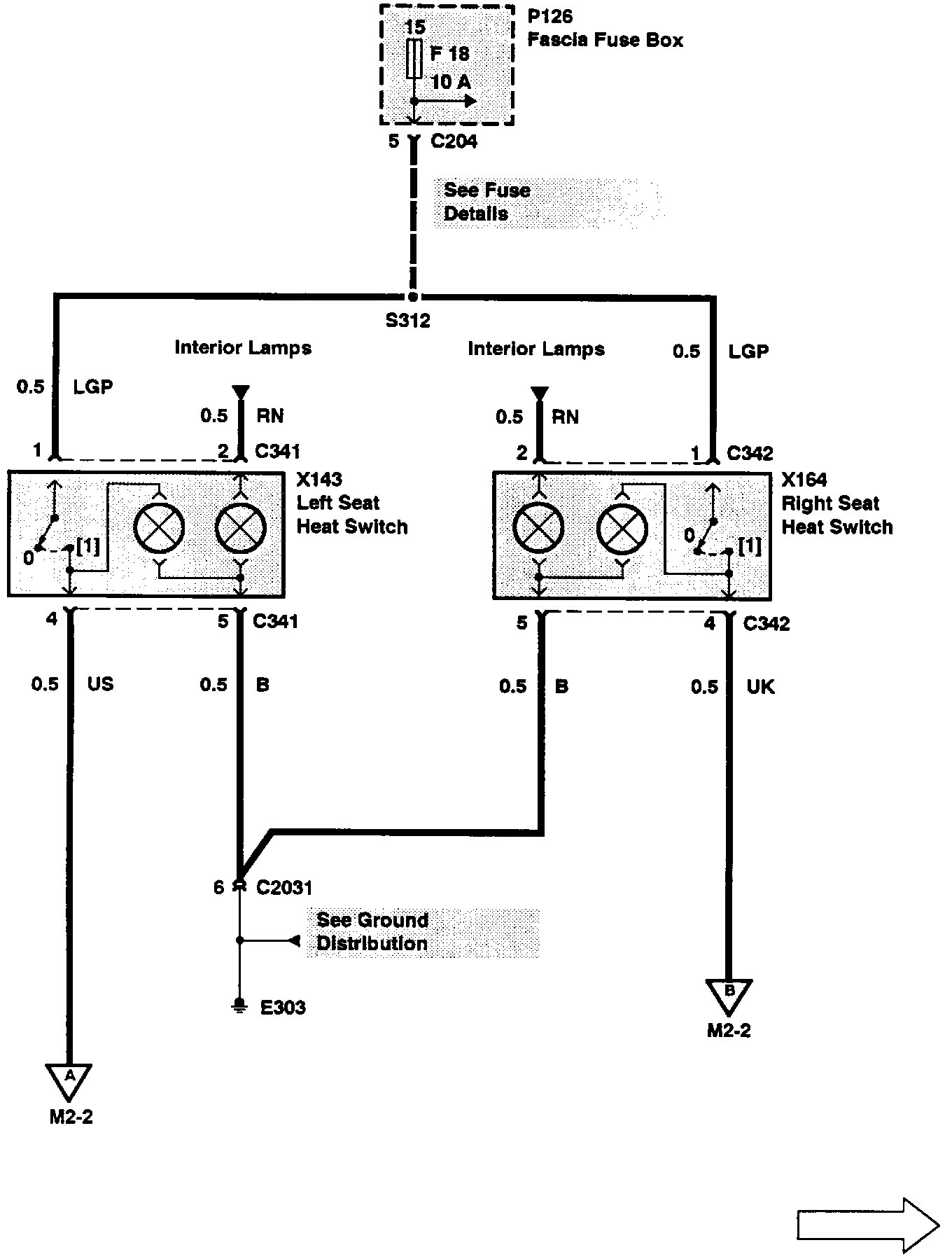

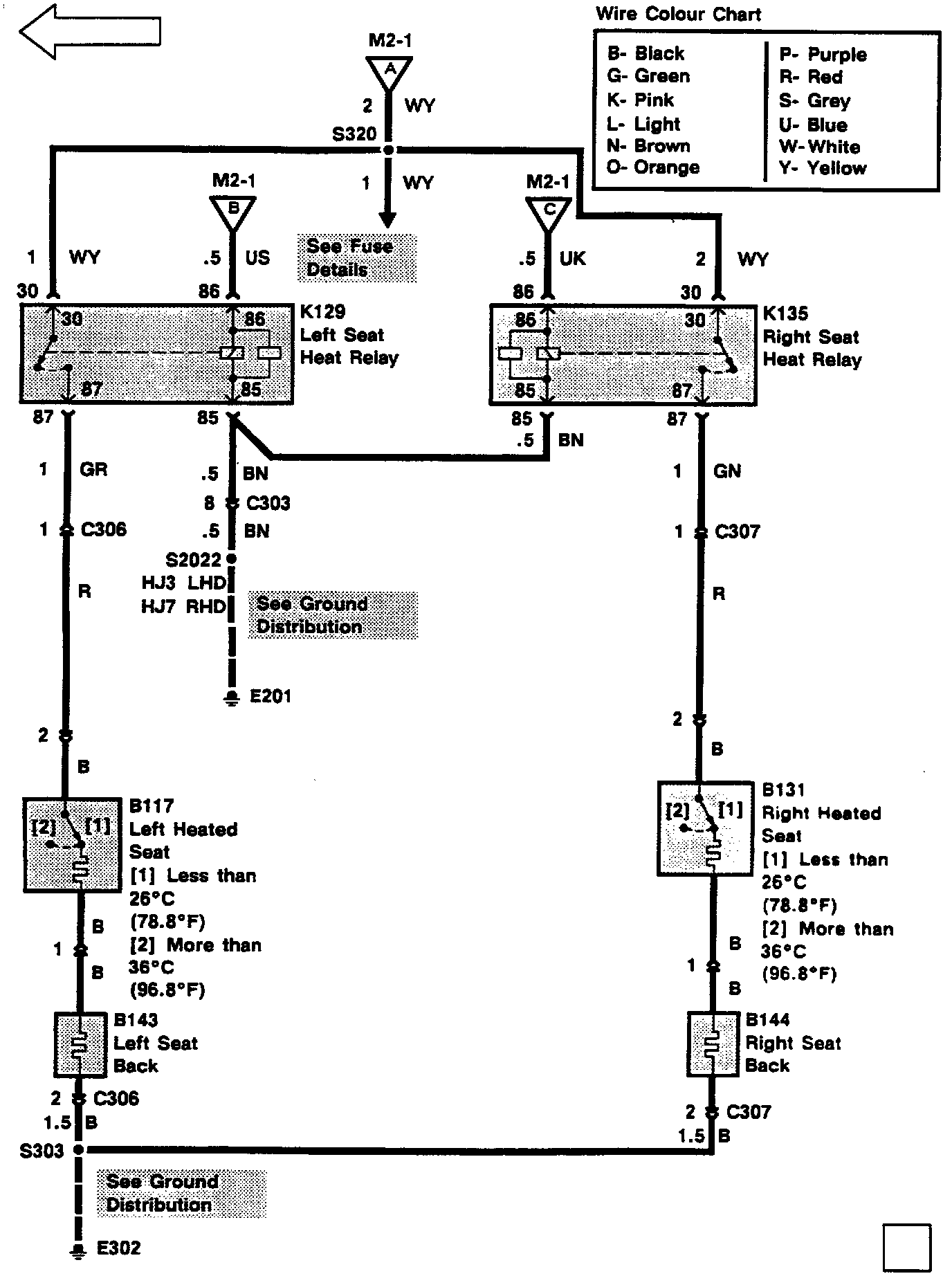

Seat Temperature Element
M6-2:
M2-1:
M2-2:
M6-2:
M2-1:
M2-2:
M6-2:
M6-2:
