Bushes - Panhard Rod

Bushes - Panhard Rod

Service Repair No - 60.10.07

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by one jack. Always support the vehicle on safety stands.

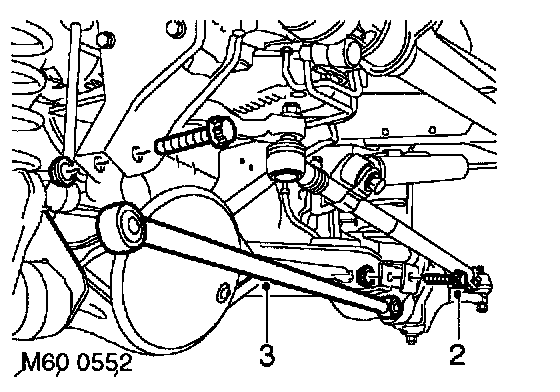

2. Remove 2 nuts and bolts securing Panhard rod to axle and chassis.
3. Remove Panhard rod from vehicle.

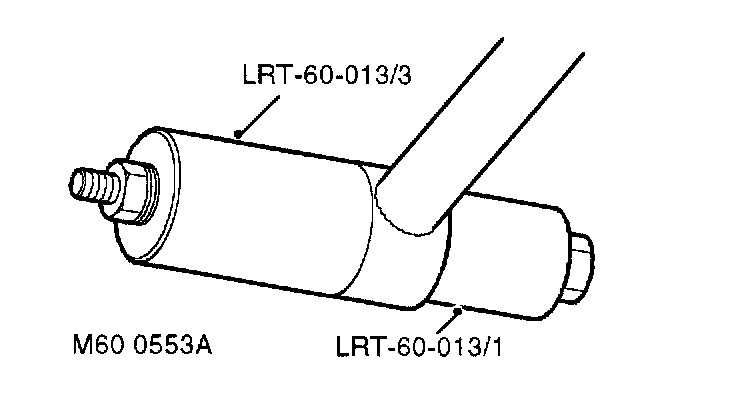

4. Use LRT-60-013 fitted with LRT-60-013/1 and LRT-60-013/3 to press out bushes from Panhard rod.

Refit

1. Clean bush locations in Panhard rod.

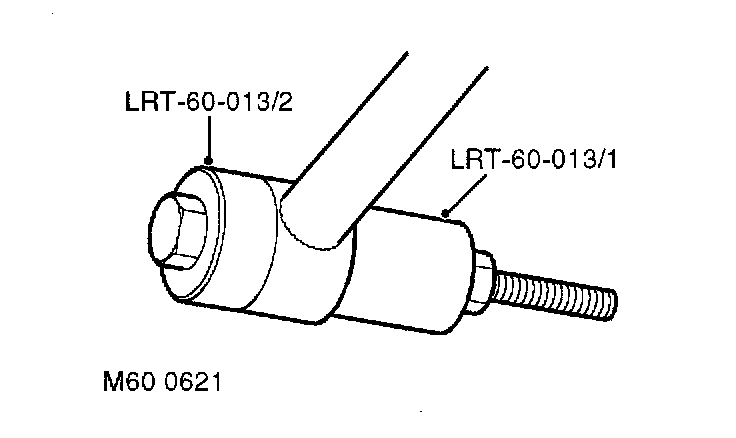

2. Use LRT-60-013 fitted with LRT-60-013/1 and LRT-60-103/2 to press new bushes into Panhard rod. Ensure pressure is applied to the outer edge of the bush, not the rubber inner.
3. Position Panhard rod to axle and chassis.
4. Fit bolts securing Panhard rod but do not tighten at this stage.
5. Remove stand(s) and lower vehicle.
6. Tighten bolts securing Panhard rod to 230 Nm (170 ft. lbs.).
