Engine Compartment Fuse Box

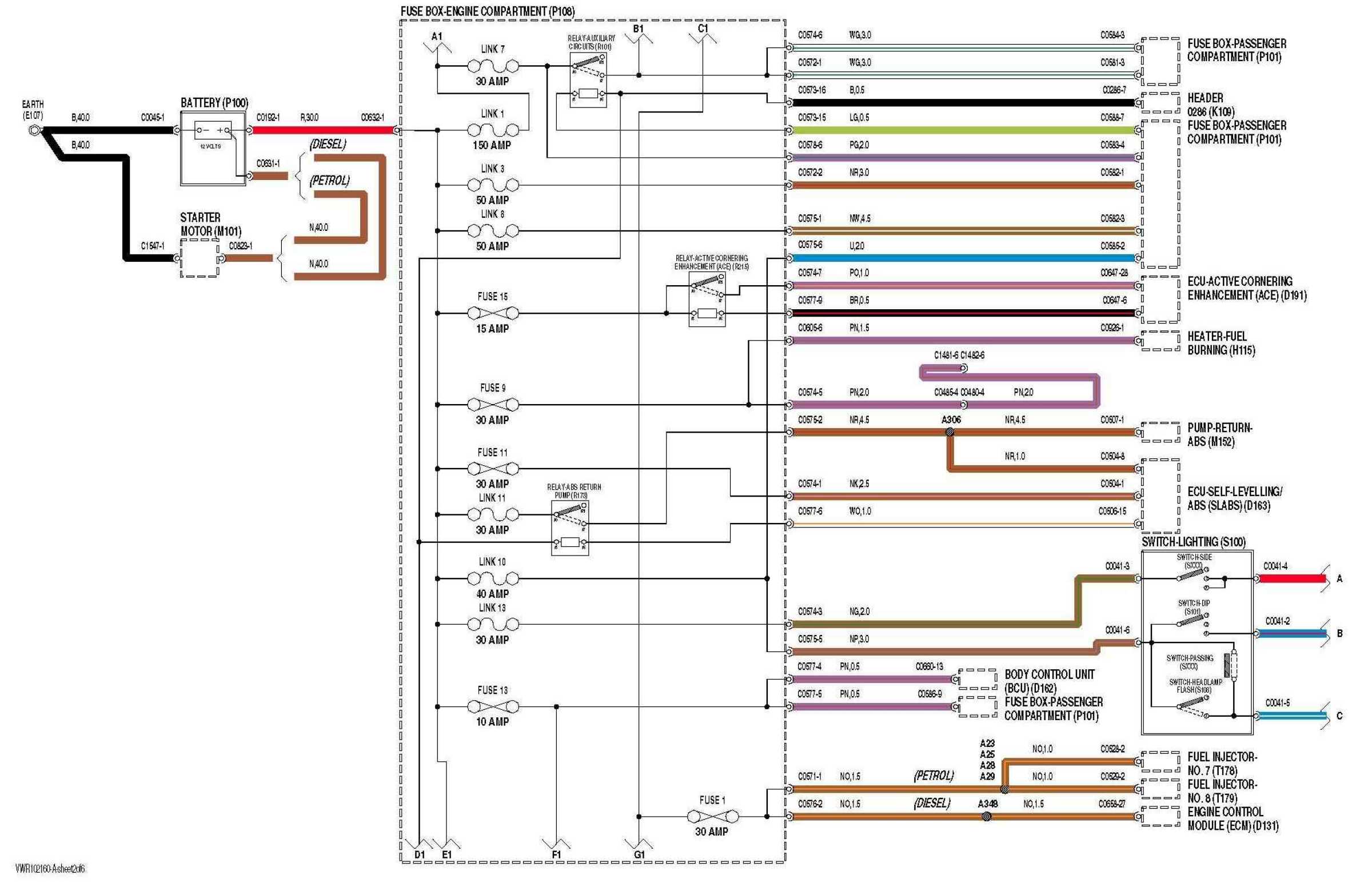

Power Distribution Engine Compartment Fuse Box - Part 1

Power Distribution Engine Compartment Fuse Box - Part 1:





Power Distribution Engine Compartment Fuse Box - Part 2

Power Distribution Engine Compartment Fuse Box - Part 2:





Power Distribution Engine Compartment Fuse Box - Part 3

Power Distribution Engine Compartment Fuse Box - Part 3:
