Expansion Valve - (TXV) - Rear

Expansion Valve - (TXV) - Rear

Service Repair No - 82.26.01

Remove

1. Depressurise air conditioning system.
2. Remove rear lower trim casing.







3. Remove 5 bolts securing seat support bracket and remove bracket.

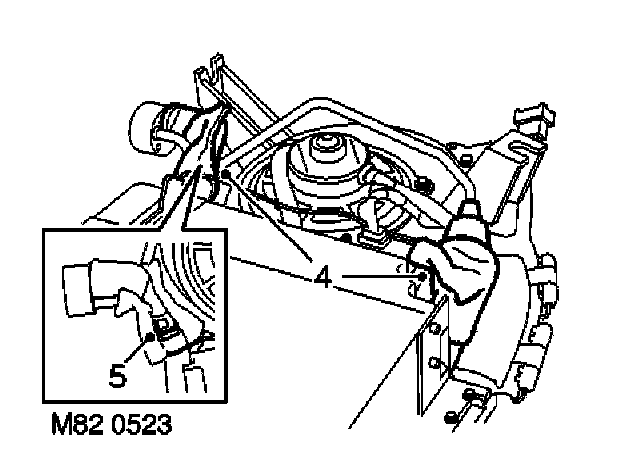

4. Release insulation from TXV pipe unions and sensor.
5. Remove clip securing sensor to pipe and release sensor.

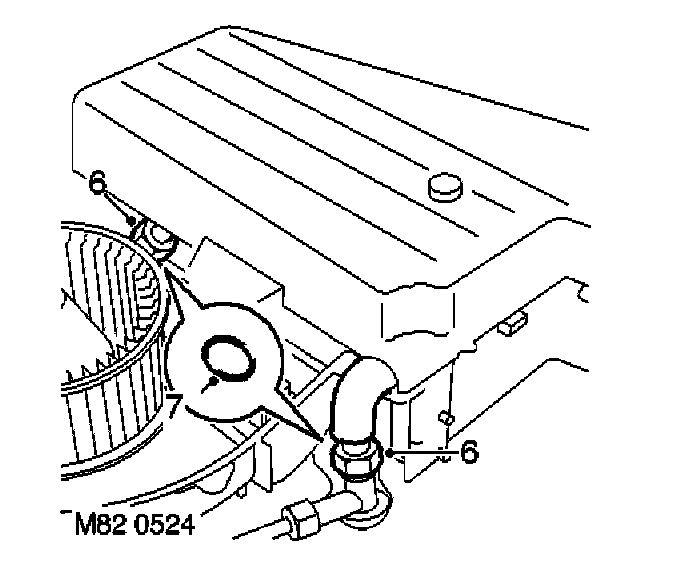

6. Loosen TXV pipe unions, release pipes and remove TXV.
7. Remove and discard '0' rings.

Refit

1. Lubricate new 'O' rings with clean refrigerant oil and fit to TXV pipes.
2. Position TXV, align pipes and tighten unions.
3. Connect sensor and secure with clip.
4. Fit insulation to TXV valve and sensor.
5. Position seat support bracket, fit bolts and tighten to 24 Nm (18 ft. lbs.).
6. Repressurise air conditioning system.
7. Fit rear lower trim casing.
