Evaporator and Motor Assembly - Rear

Evaporator and Motor Assembly - Rear

Service Repair No - 82.26.21

Remove

1. Depressurise air conditioning system.

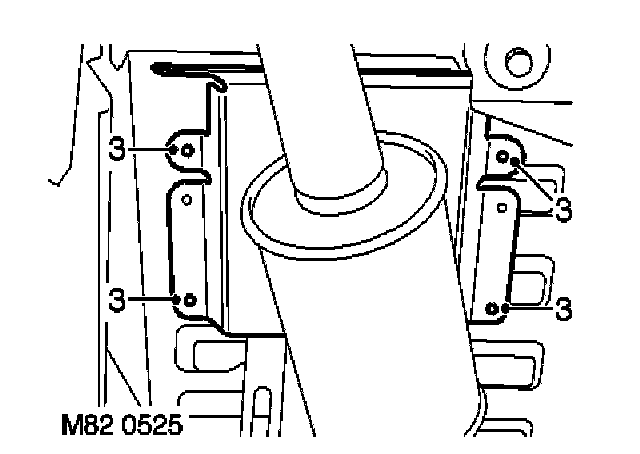

2. V8 models: Remove 4 clips securing rear exhaust heat shield and remove heat shield.

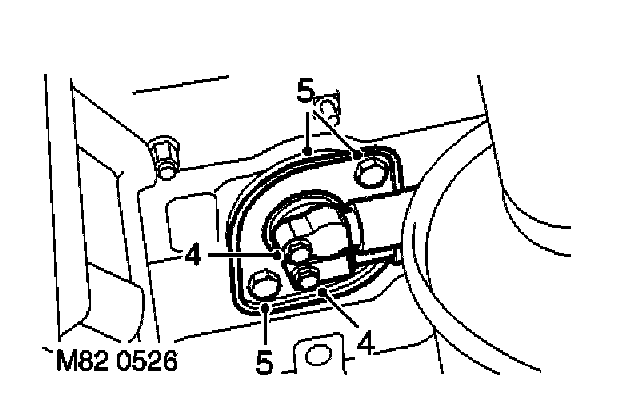

3. Remove 2 bolts securing high and low pressure pipes, release pipes and discard '0' rings.

CAUTION: Always fit plugs to open connections to prevent contamination.







4. Remove 2 bolts securing grommet flange to body and remove flange.
5. Remove LH rear lower trim casing.

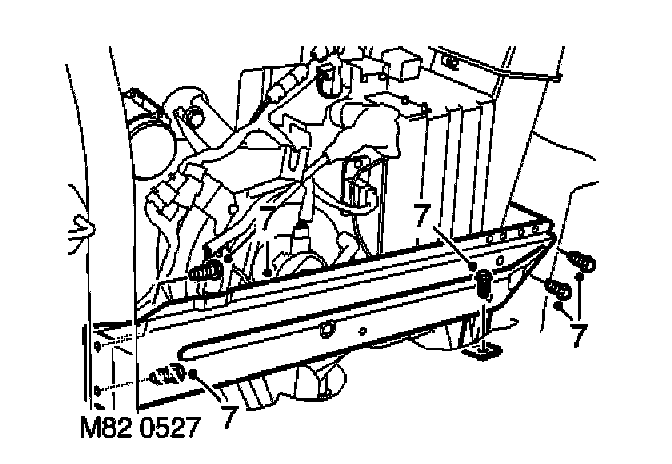

6. Remove 5 bolts securing seat support bracket and remove bracket.

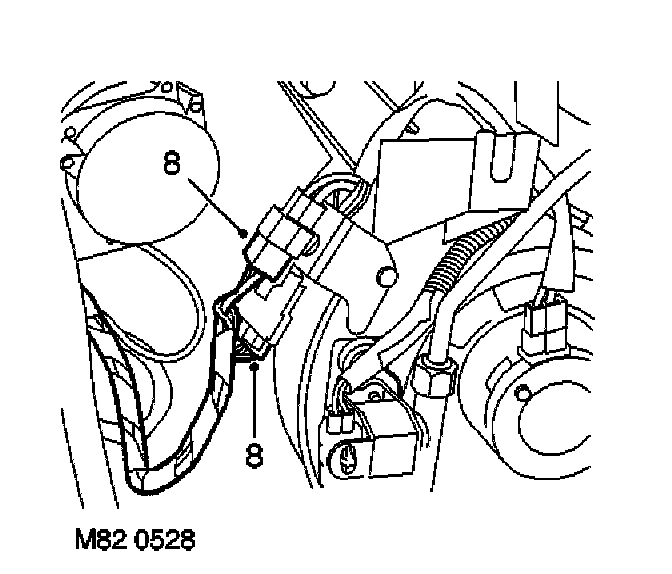

7. Disconnect A/C harness multiplugs from body harness.







8. Remove 2 clips securing dueling to A/C assembly and release dueling.

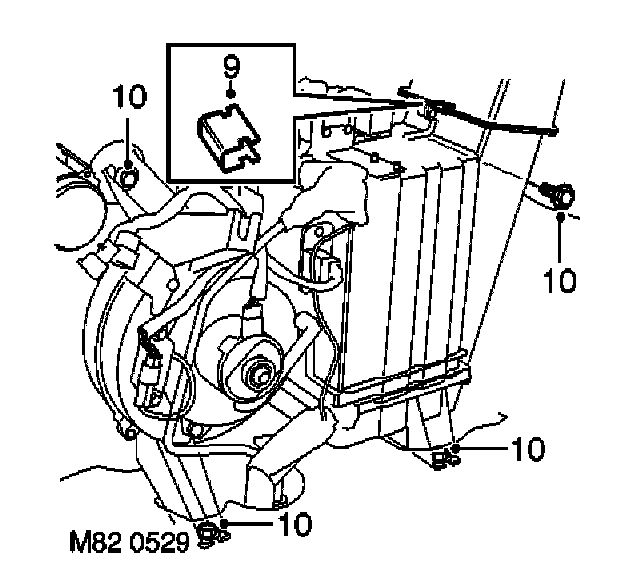

9. Remove 4 bolts securing evaporator assembly and remove assembly.

Refit

1. Position evaporator assembly to body fit bolts and tighten to 16 Nm (12 ft. lbs.).
2. Position dueling to evaporator assembly and secure with clips.
3. Connect harness multiplugs.
4. Position seat support bracket, fit bolts and tighten to 24 Nm (18 ft. lbs.).
5. Fit LH rear lower trim casing.
6. Position grommet flange and tighten bolts.
7. Lubricate new '0' rings with clean refrigerant oil and fit to high and low pressure pipes.
8. Position high and low pressure pipes, fit bolts and tighten to 10 Nm (7 ft. lbs.).
9. V8 models: Position exhaust heat shield and secure with clips.
10. Repressurise air conditioning system.
