Audio System - High Line
Audio System - High Line

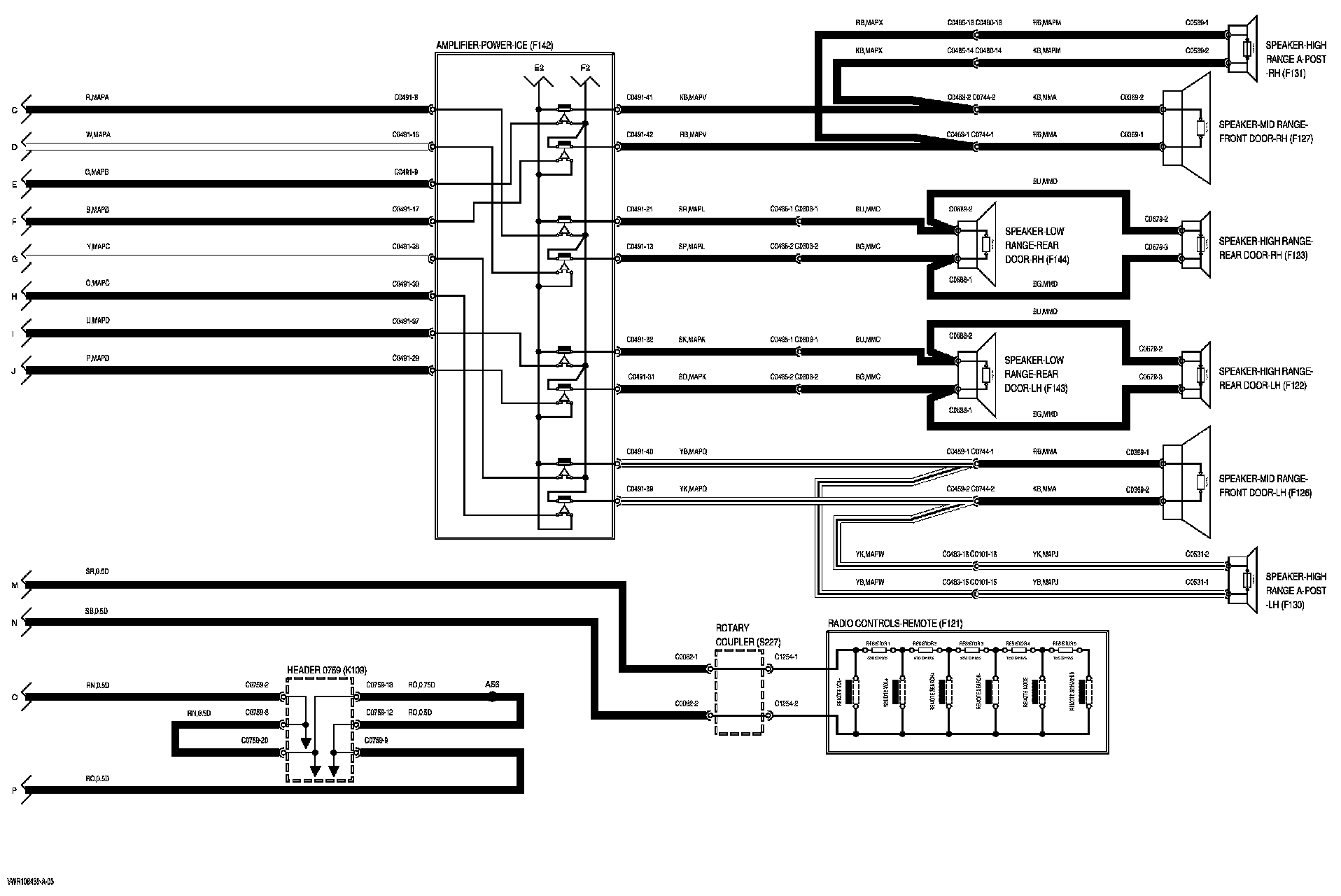

Audio System-High Line - Part 1:

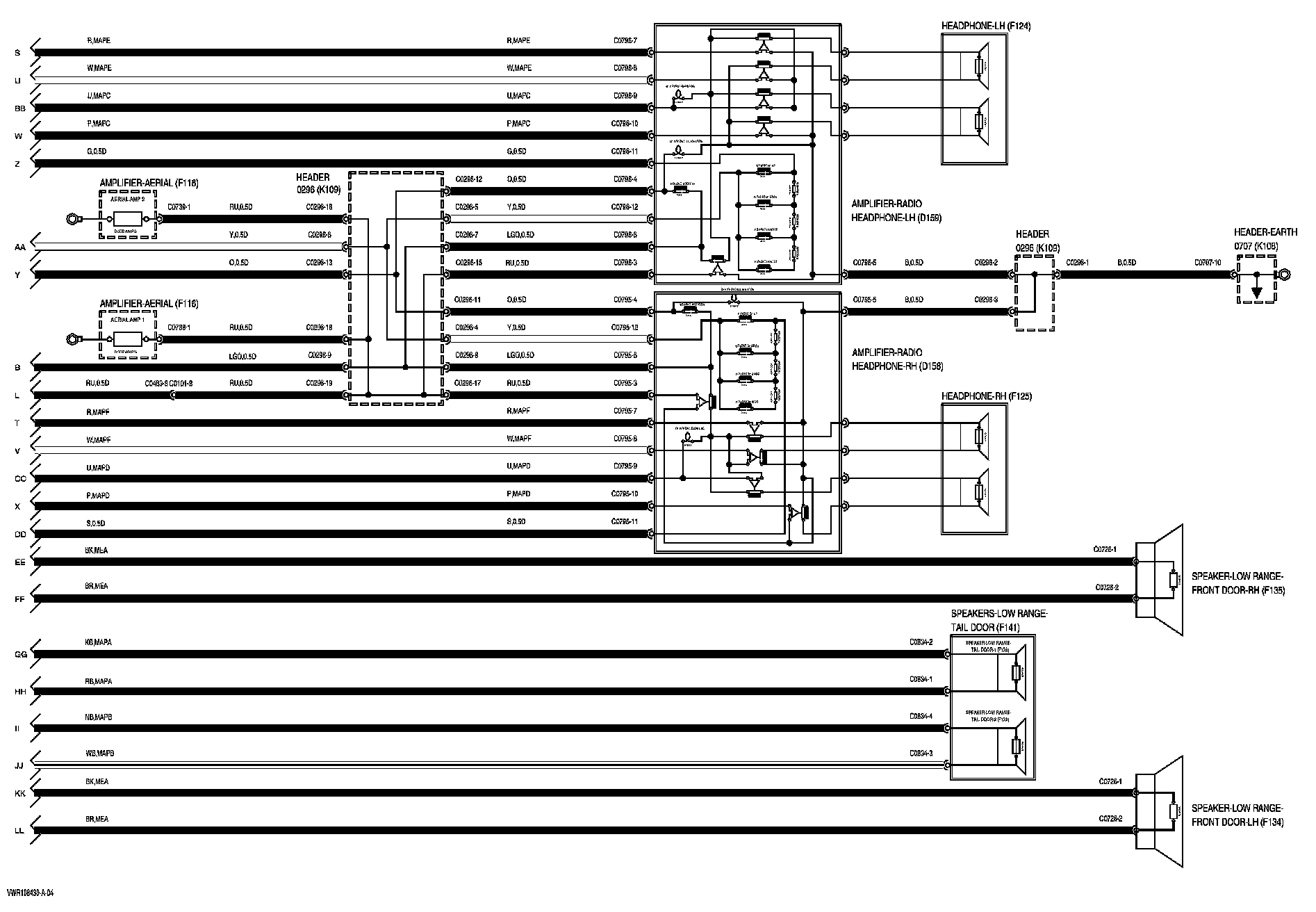

Audio System-High Line - Part 2:

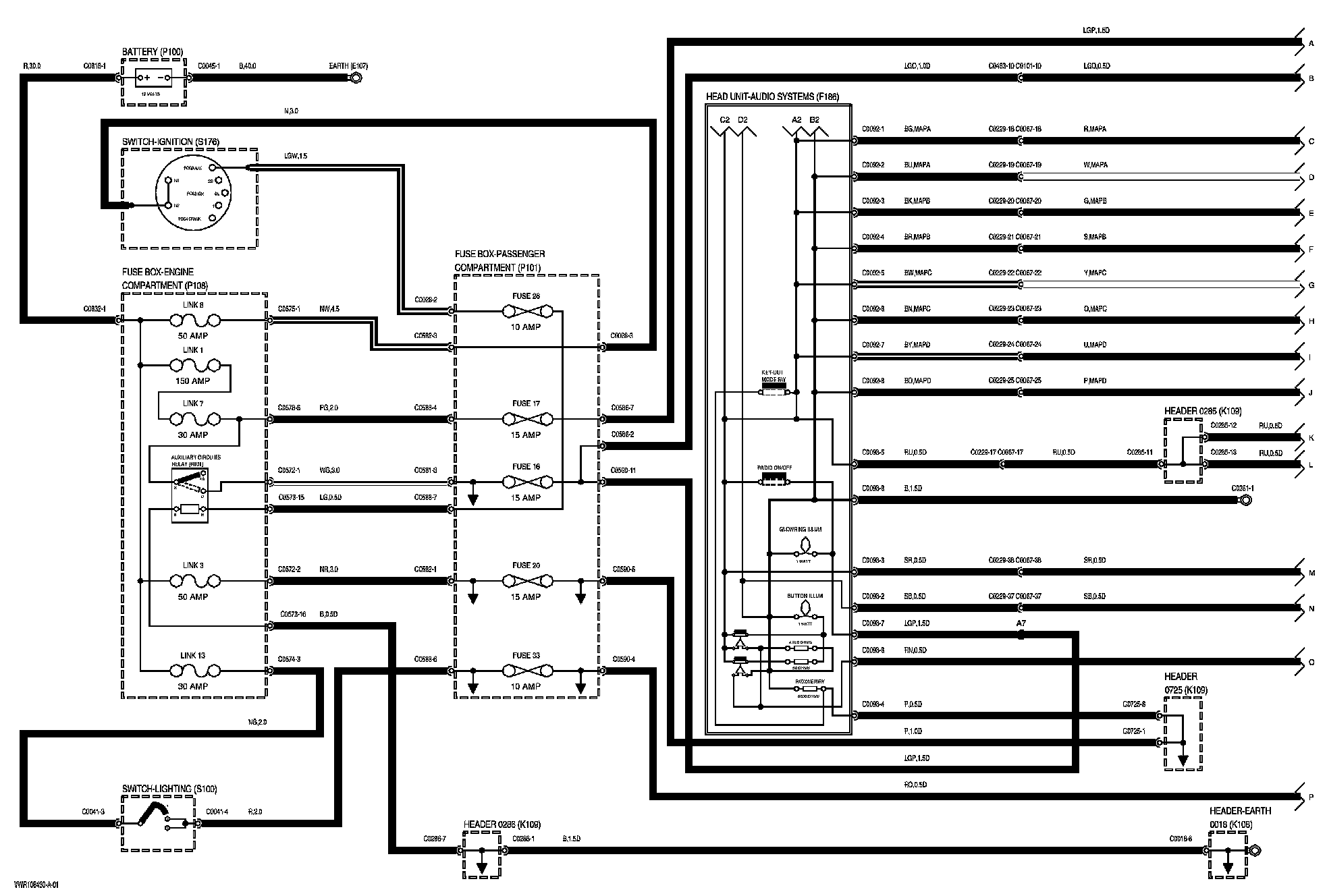

Audio System-High Line - Part 3:

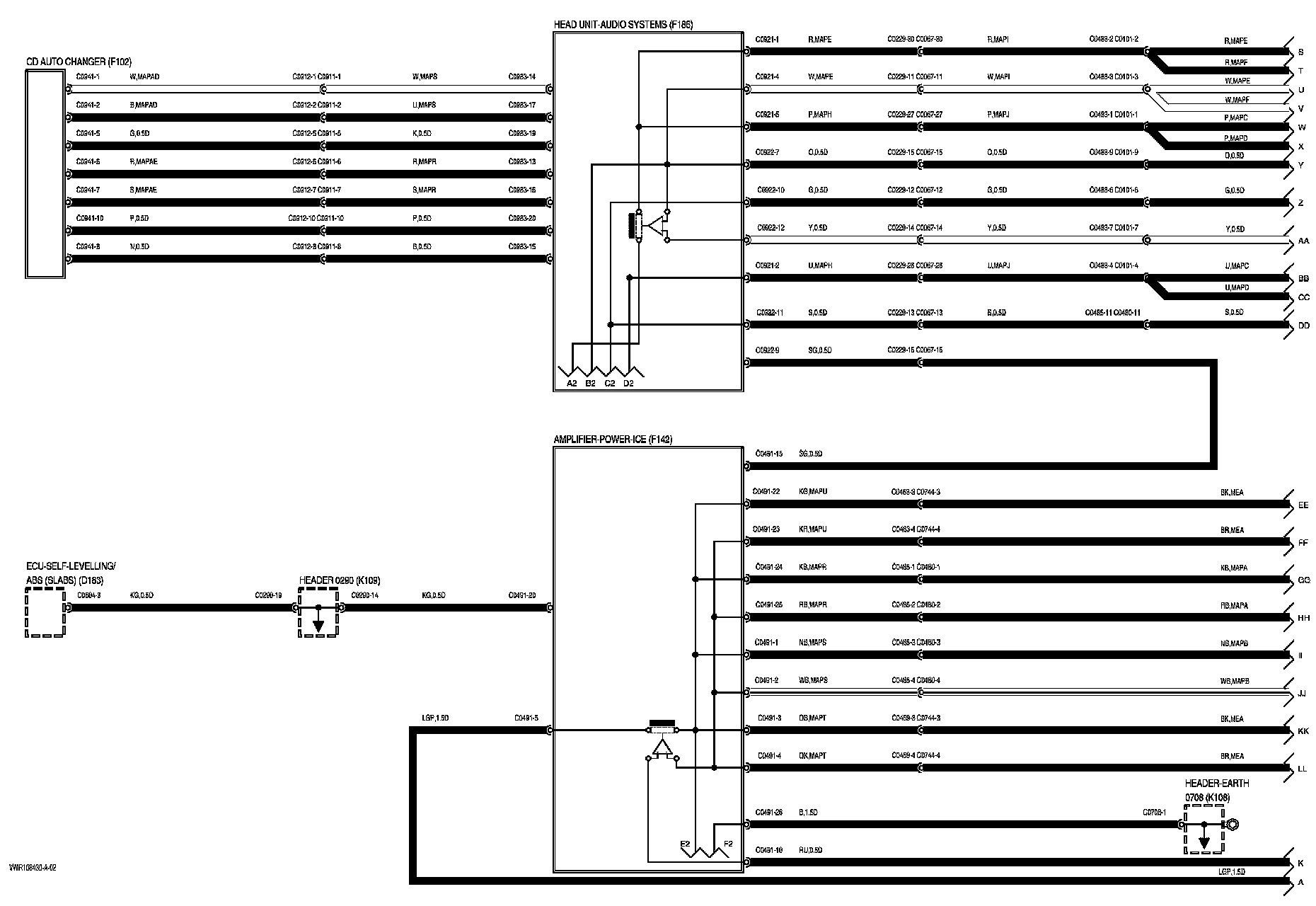

Audio System-High Line - Part 4:
