High Line - Lear Amplifier

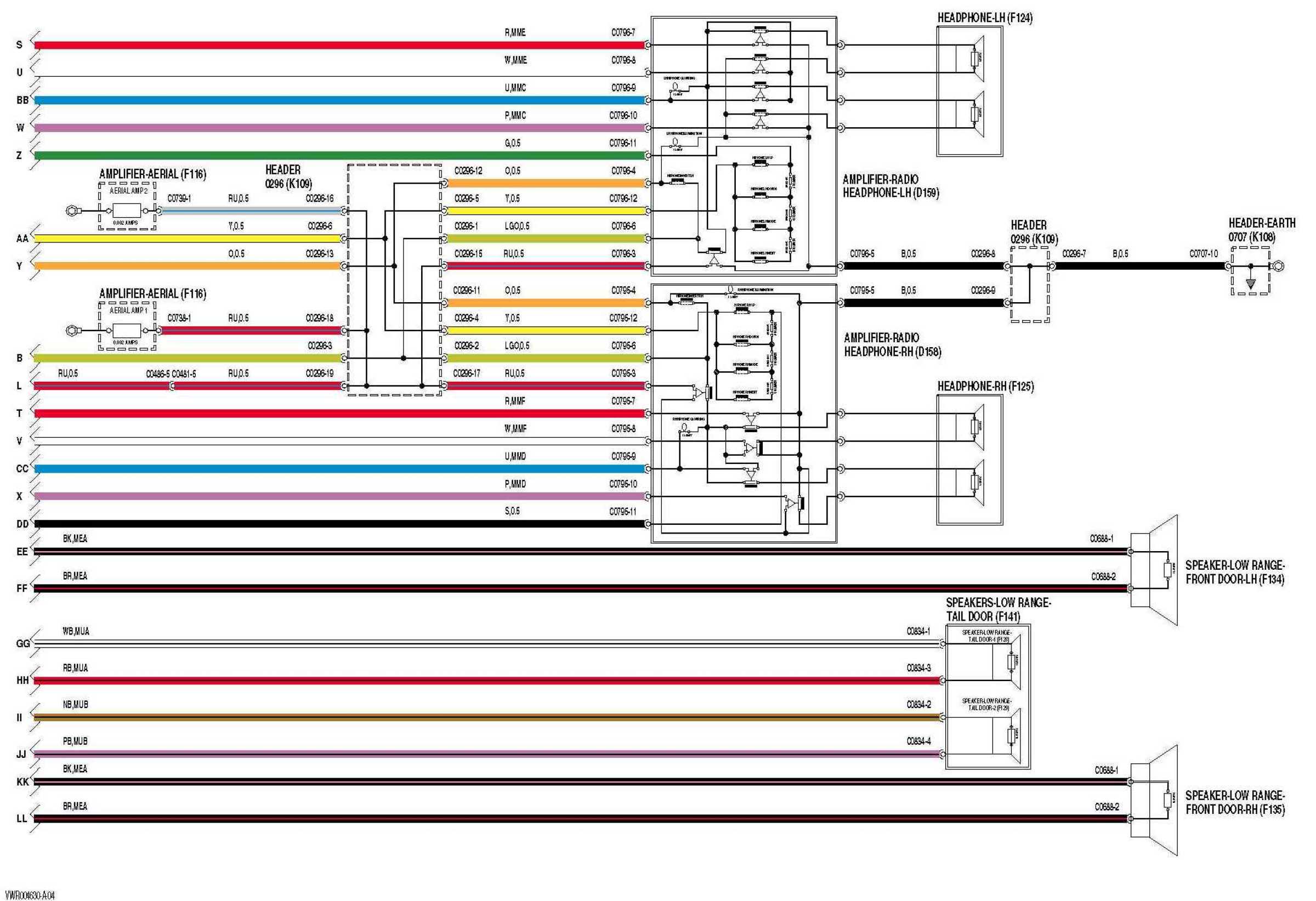

Audio Systems - High Line - Lear Amplifier - Part 1:

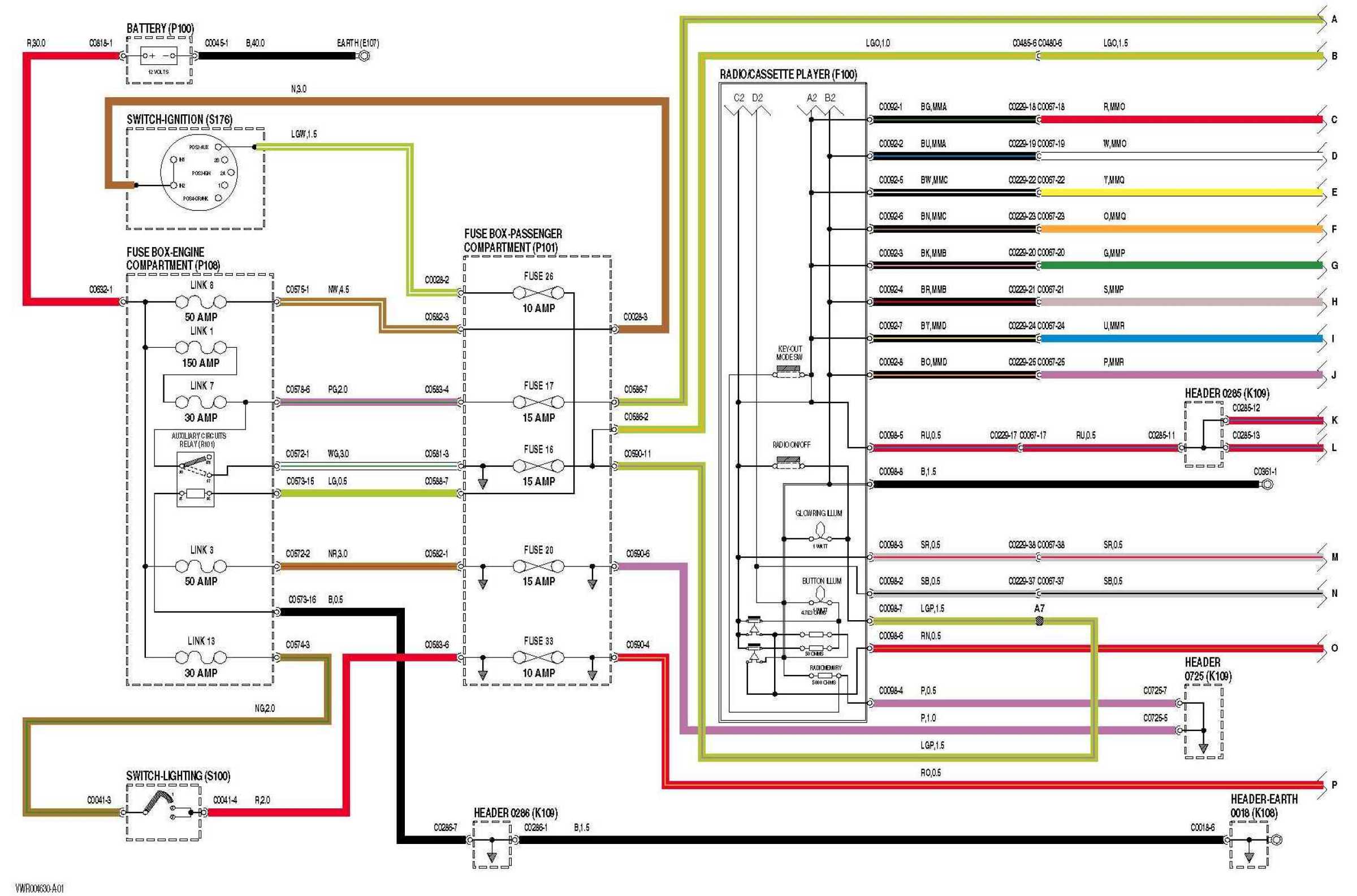

Audio Systems - High Line - Lear Amplifier - Part 2:

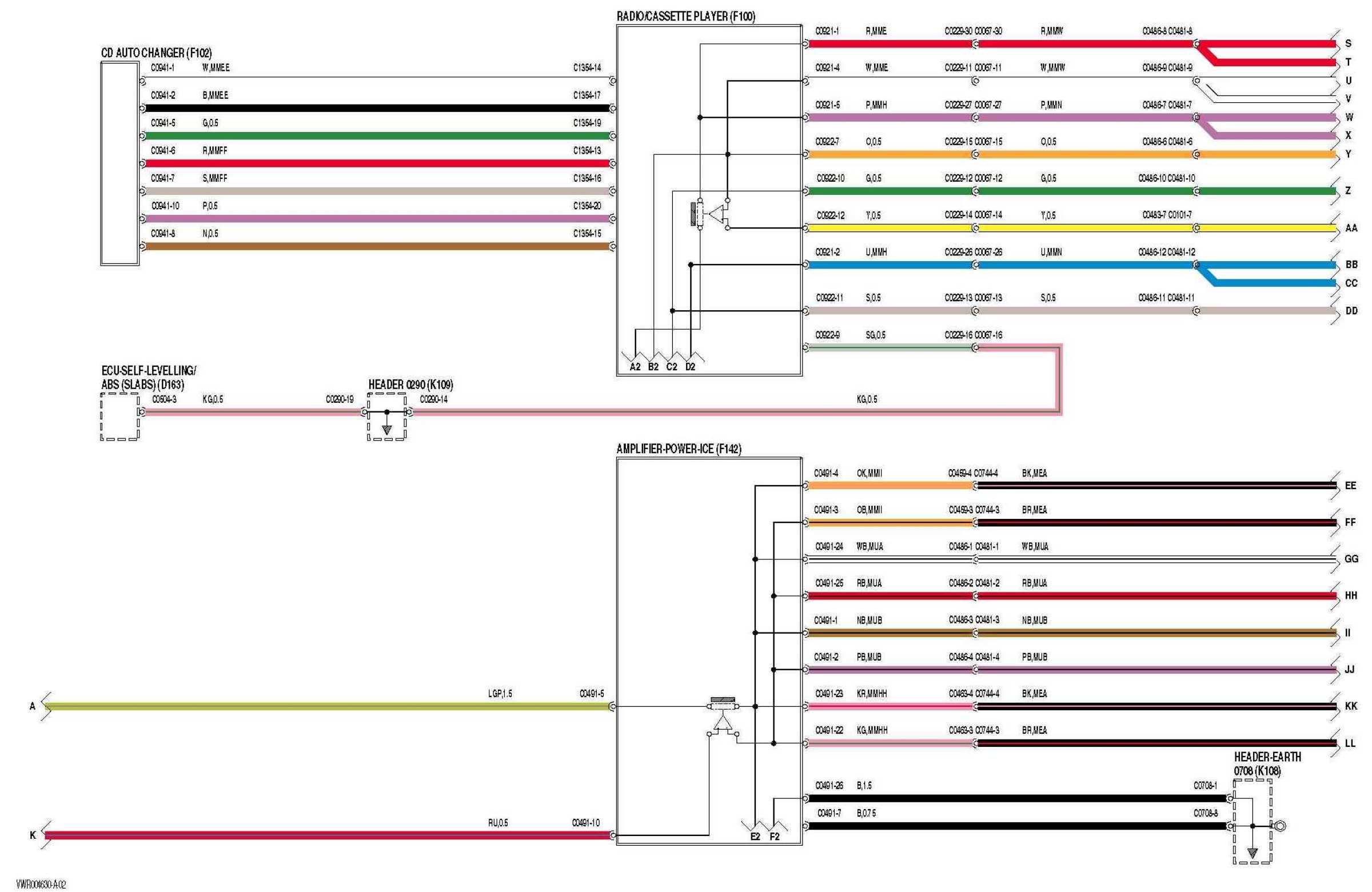

Audio Systems - High Line - Lear Amplifier - Part 3:

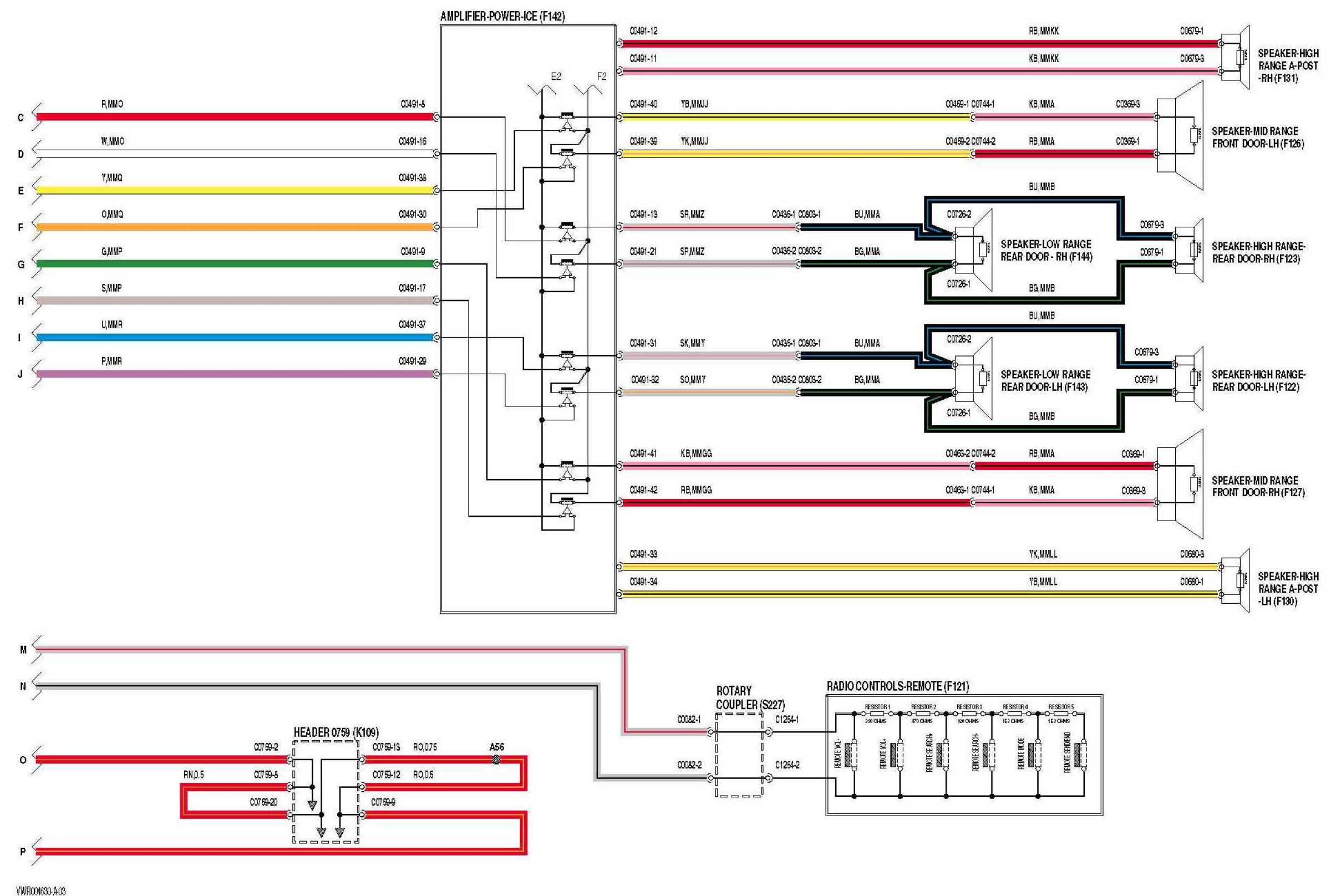

Audio Systems - High Line - Lear Amplifier - Part 4:
