Panel - Fascia Access - Driver's Side

Panel - Fascia Access - Driver's Side

Service Repair No - 76.46.40

Remove

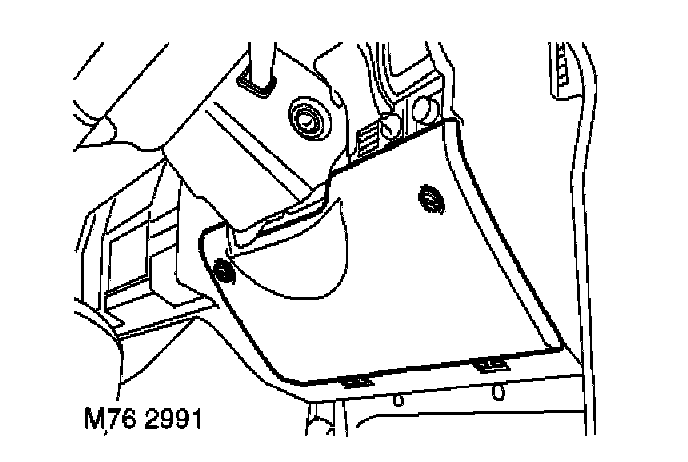

1. Remove 4 bolts securing fascia access panel to fascia.
2. Release 2 quarter turn screws securing fascia access panel to fascia.
3. Remove fascia access panel,

Refit
1. Position fascia access panel to fascia and secure with quarter turn screws.
2. Position base of fascia access panel to fascia and secure with bolts.
