Drink Holders: Service and Repair

76.46.41 Drink Tray Assembly - Centre Fascia

Remove

1. Remove coin tray and ash tray.

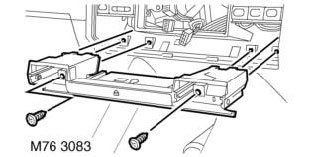

2. Remove 6 screws securing drink tray assembly to fascia.
3. Remove drink tray.

Refit

1. Position drink tray assembly to fascia and secure with screws.
2. Fit ash tray and coin tray to drink tray assembly.
