Front Bumper Valance

Front Bumper Valence

Service Repair No - 76.22.72

Remove
1. Raise the vehicle.

WARNING: Support on safety stands.

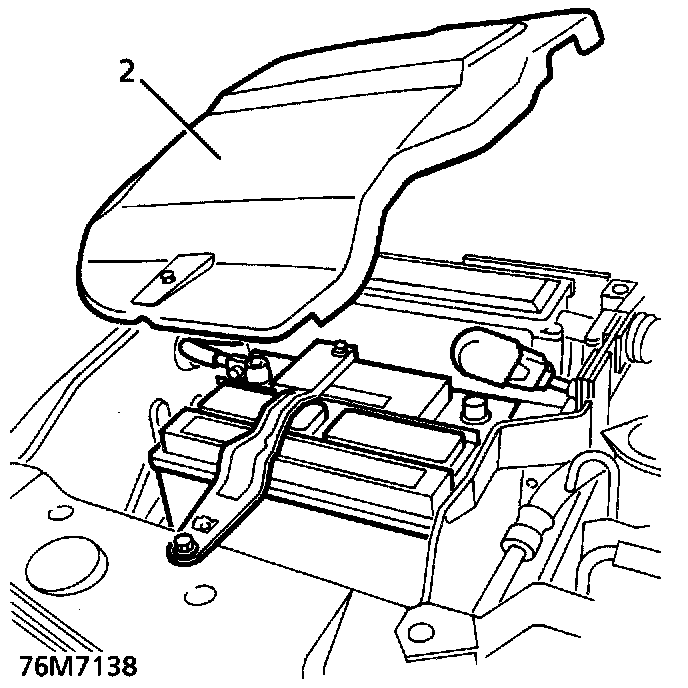

2. Remove battery cover for access to RH fog lamp.

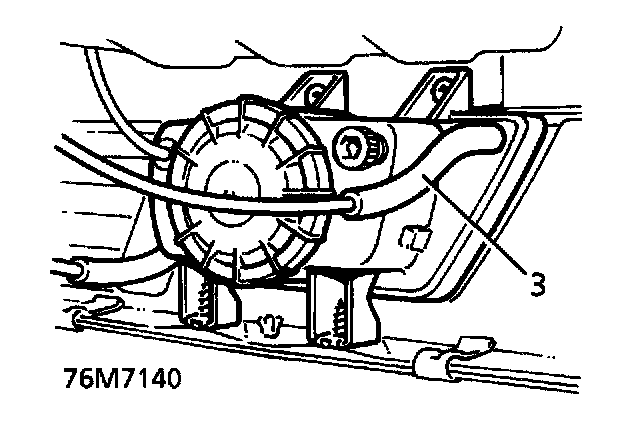

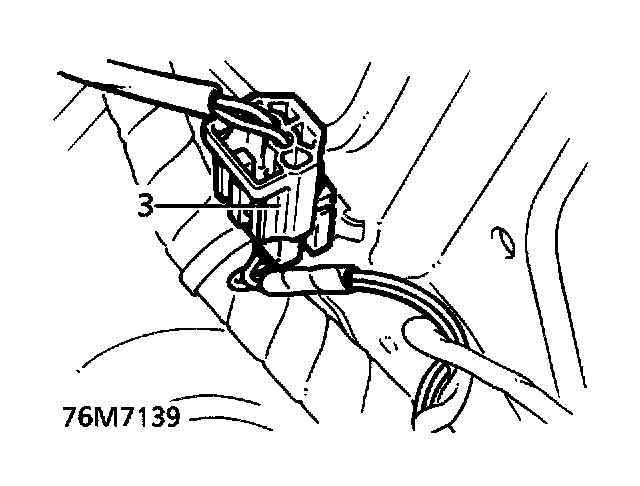

3. Disconnect fog lamp multiplugs and breather hoses.

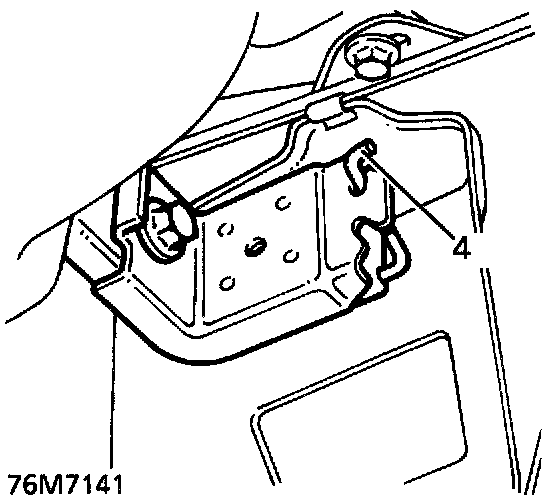

4. Release 2 clips securing bumper ends to mounting brackets.





CAUTION: Loosen bolts securing bumper end mounting brackets to chassis frame to avoid damage to sealing rubber during bumper remove and refit.

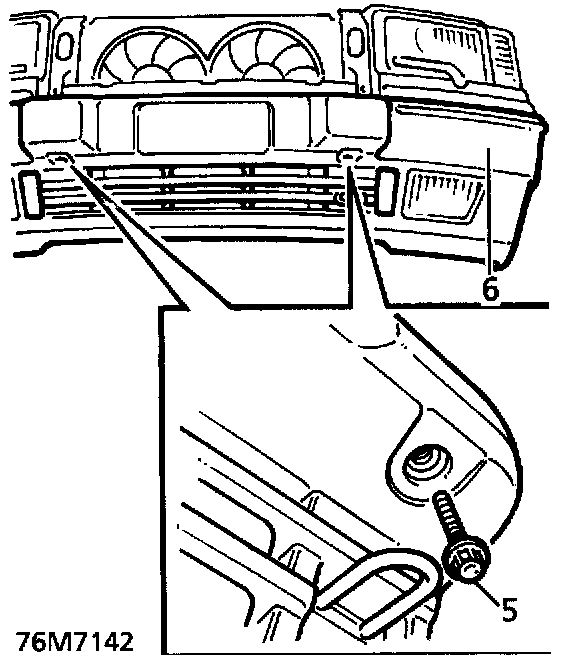

5. Remove 2 bumper bolt access plugs from bumper valance. Remove bolts.





6. With assistance remove bumper assembly.
Do not carry out further dismantling it component is removed for access only.

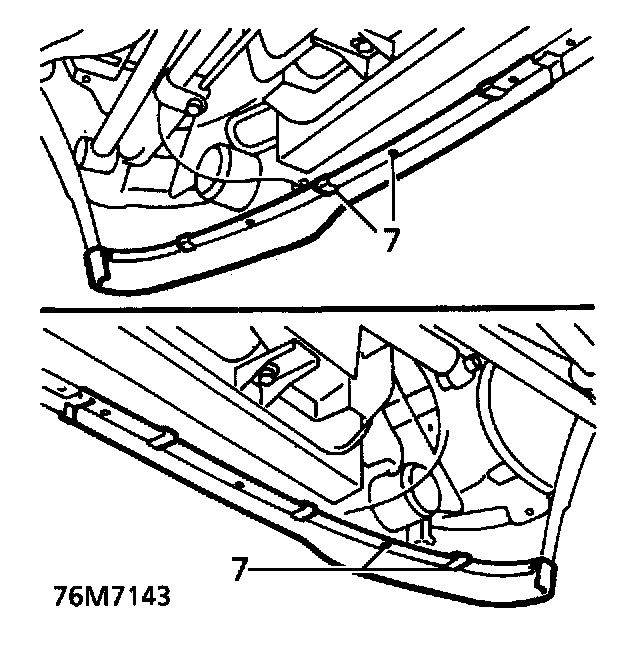

7. Remove 8 studs and 6 clips securing extensions spoiler. Remove extension.

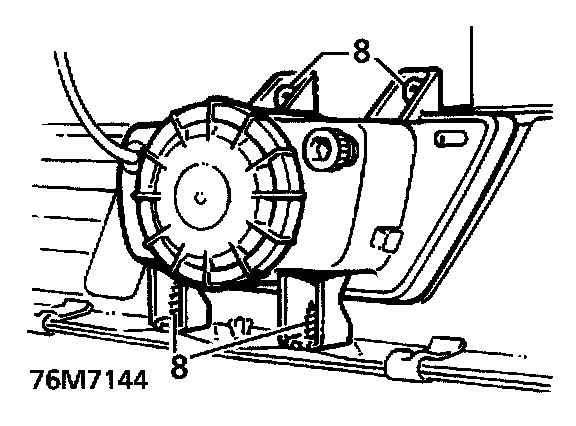

8. Remove 8 screws securing fog lamps. Remove lamps.

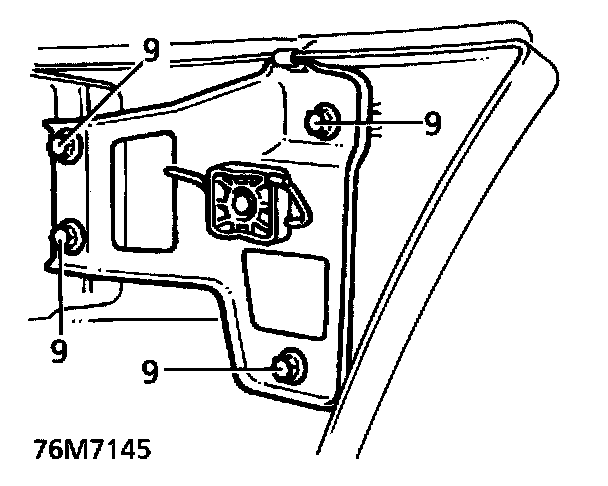

9. Remove 8 bolts securing bumper end brackets to bumper. Remove brackets.





WARNING: If front bumper is damaged due to impact, the impact cans must be inspected. There must be no visible deformation. The overall length must be 188.25 mm 0.5 mm. Replace the impact cans if necessary.

Refit
10. Fit end brackets and secure with bolts. Fit fog lamps and secure with screws.
11. Fit extension and secure with clips and studs.
12. With assistance fit bumper assembly, tighten bolts to 70 Nm (52 ft. lbs.)
13. Fit bolt access plugs.
14. Align end brackets, tighten bolts and secure bumper end clips.
15. Connect fog lamp multiplugs and breather hoses, fit battery cover.
16. Remove safety stands. Lower vehicle.
