Base and Mid Line Ice System Control Diagram
Base and Mid Line Ice System Control Diagram

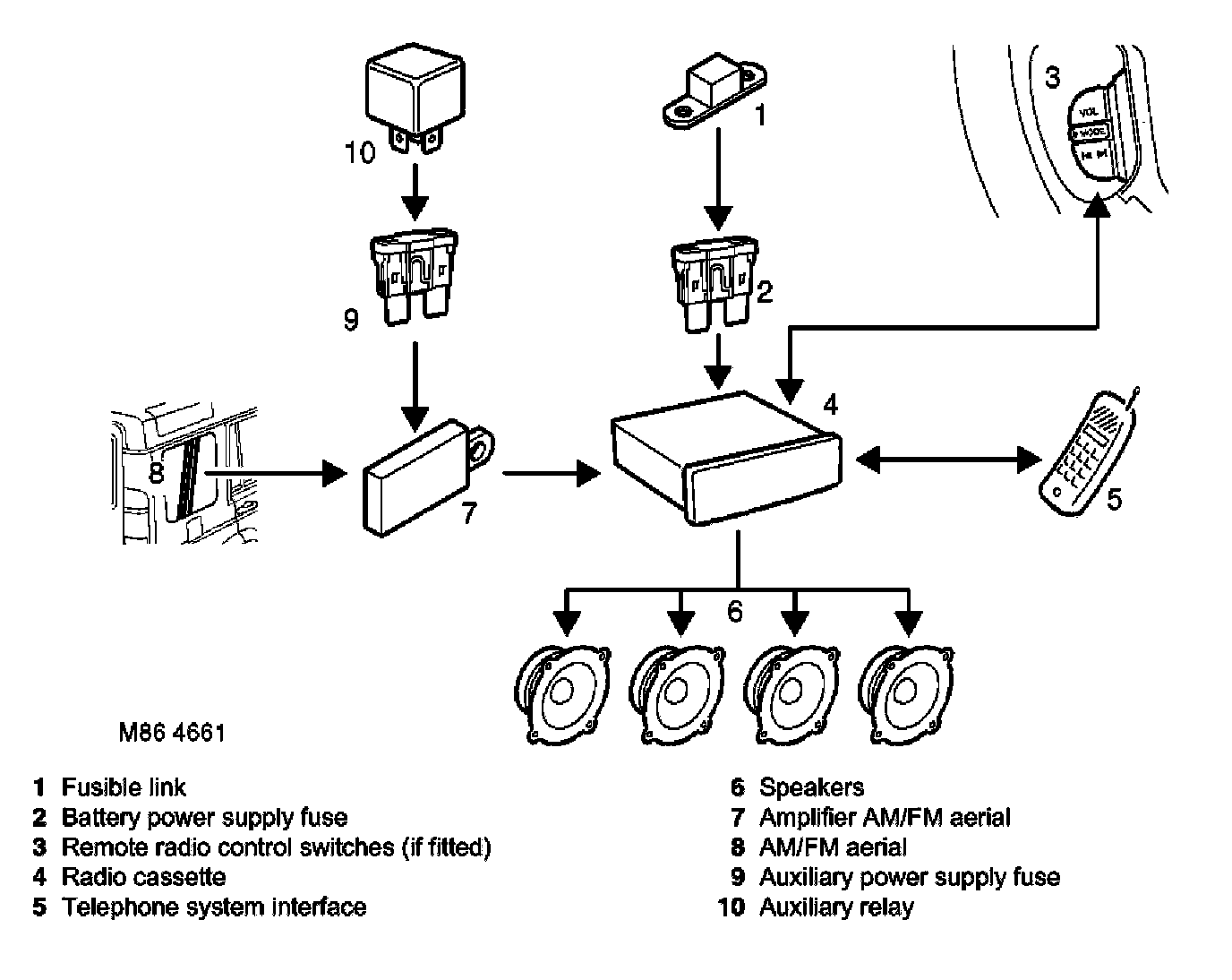

Base and mid line ICE system control diagram
