Coil - Passive Immobilisation

Coil - Passive Immobilisation

Service Repair No - 86.77.35

Remove

1. Remove steering column nacelle.

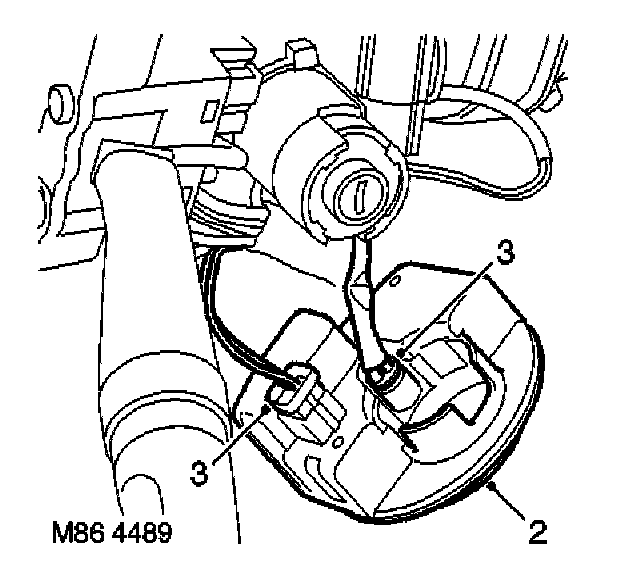

2. Release passive coil from steering lock.
3. Disconnect illumination bulb holder and multiplug and remove passive coil.

Refit

1. Position passive coil, connect multiplug and illumination bulb holder.
2. Fit passive coil to steering lock.
3. Fit steering column nacelle.
