Steering Column Cover: Service and Repair

Steering Column Shroud

REMOVAL
1. Disconnect battery negative lead.

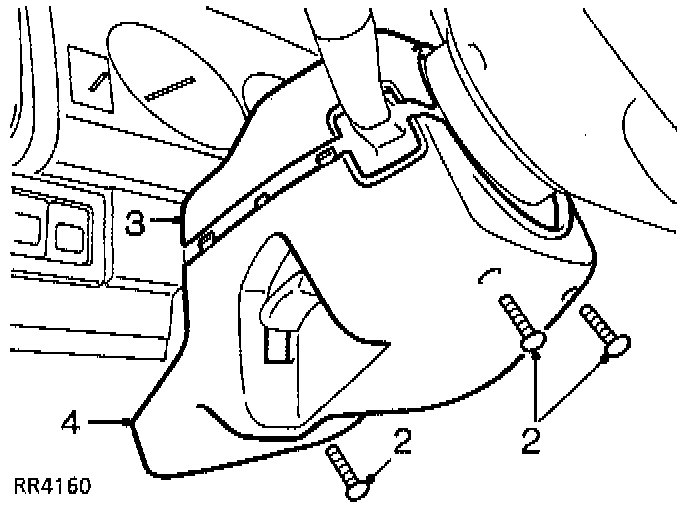

Steering Column Shroud:

2. Remove 3 screws (2) securing shroud.
3. Carefully release upper shroud (3) from lower shroud (4).
4. Maneuver lower shroud (4) clear of steering column.

INSTALLATION
1. Position upper and lower shrouds (3 & 4) to steering column ensuring plastic tags on lower shroud are correctly located.
2. Clip both halves of shroud together.
3. Install and tighten 3 screws (2).
