Drag Link Ends

REMOVE





1. Loosen clamp bolts (8).
2. Unscrew ball joints (9).
3. Clean internal threads in drag link (10).

INSTALLATION
1. Install replacement ends (9).
- Loosely fit clamp bolts (8).

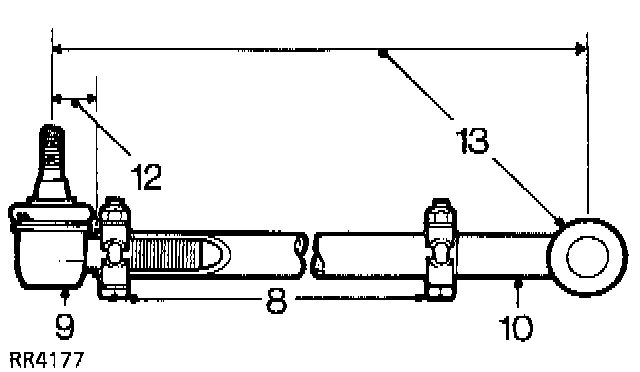

2. Set ball joints to drag link distance to (12) 28.5 mm as shown.
3. Adjust ball joint pin centers to nominal length (13) of 924.0 mm this length is adjusted during install.
