Air Register: Service and Repair

Dash Panel Central Louvre Panel

Remove
1. Disconnect battery negative lead.
2. Remove radio.

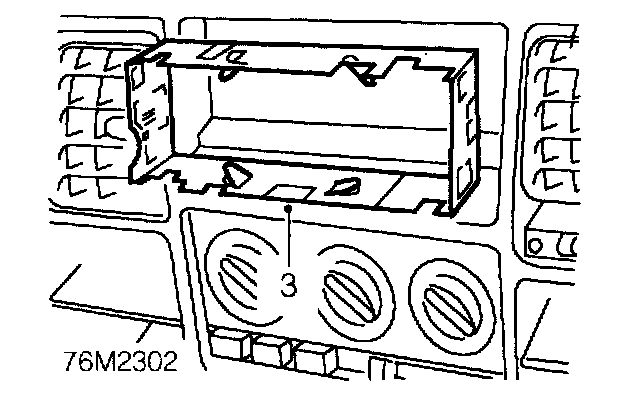

3. Release tags securing radio cage to louvre and remove cage.
4. Remove clock.

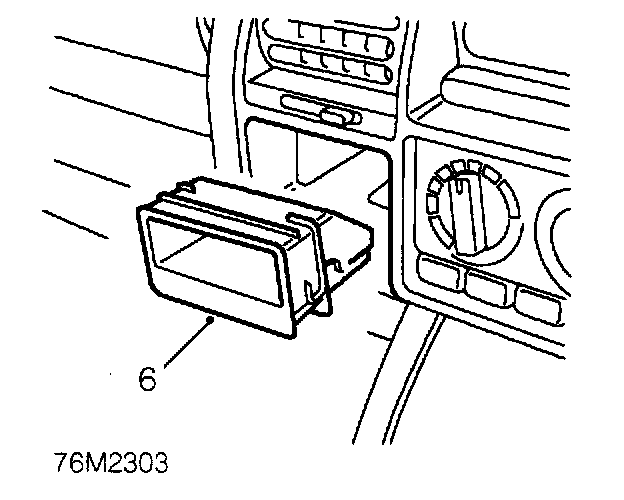

5. Release 4 coin tray securing tags.







6. Remove coin tray.

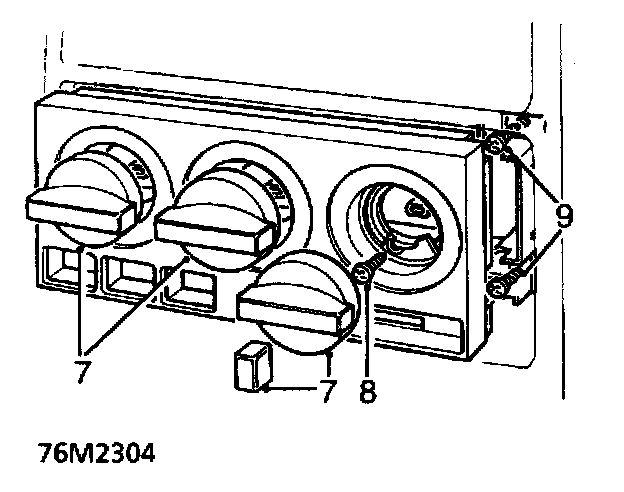

7. Remove 3 heater control and blower switch knob.
8. Remove 2 screws securing heater graphic display panel and remove panel.
9. Remove 4 screws securing heater control unit to panel.

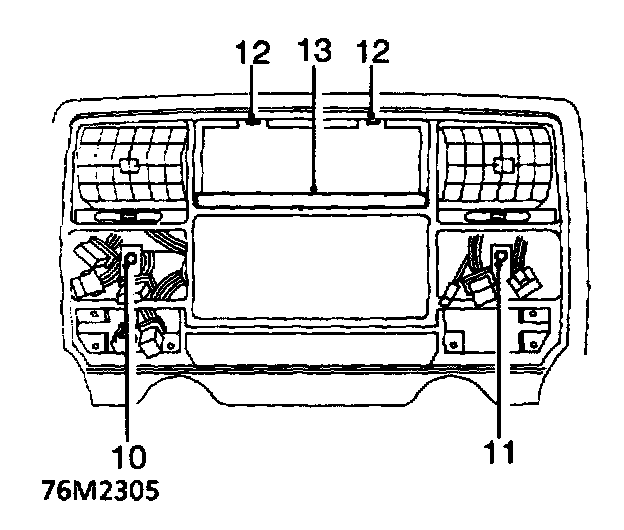

10. Working through coin tray aperture, remove screw securing panel.
11. Working through clock aperture, remove screw securing panel.
12. Loosen 2 uppermost panel retaining screws.


NOTE: On some models the panel is fitted with an LED. In this case, manoeuvre LED from panel and disconnect.


13. Remove panel retaining screw cover.







14. Remove 2 screws securing louvre panel.
15. Remove louvre panel from dash panel.

Refit
16. Position louvre panel, feed harness connectors through their correct apertures, and align to dash panel.


CAUTION: When refitting avoid trapping of electrical wiring.


17. Fit and tighten screws securing louvre panel.
18. Fit panel retaining screw cover.
19. Position heater control unit to panel and secure with screws.
20. Fit heater graphic display panel and secure with screws.
21. Fit heater control and blower switch knobs.
22. Fit clock.
23. Position coin tray and secure to tags.
24. Position radio cage, feed electrical connectors and aerial through cage, and position to panel.
25. Bend back radio cage retaining tags.
26. Fit radio.
27. Connect battery negative lead.
