Home >> Land Rover >> 1999 >> Discovery I (LJ) V8-4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Fog/Driving Lamp

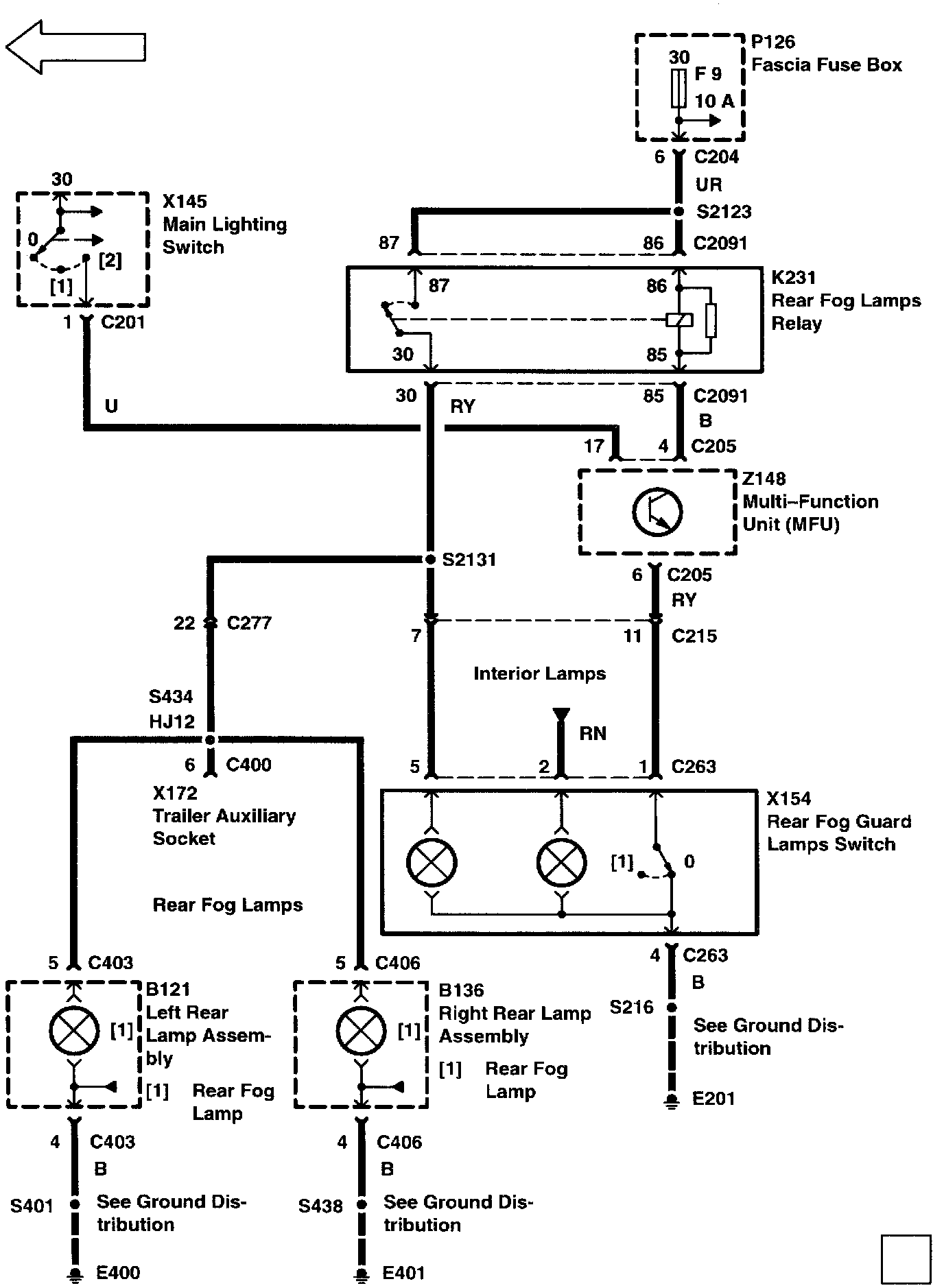

Fog/Driving Lamp

Fog Guard Lamps H9-1:



Fog Guard Lamps H9-3:
