Steering Gear: Adjustments

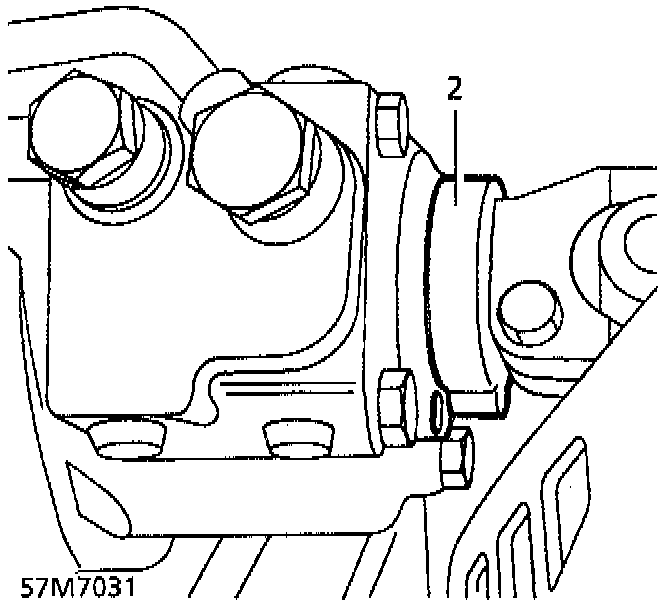

NOTE: Markings on steering box and pinion indicate when steering box is centralized.

CHECK
1. Move backward then forward by at least 2 vehicle lengths to ensure that road wheels are pointing straight ahead.





2. Check for correct alignment of steering box markings.

ADJUST





1. Loosen drag link adjuster clamp nuts and bolts (6).
2. Rotate adjuster (4) to align steering box.

CAUTION: Ensure adjuster clamp nuts and bolts are positioned clear of drop arm.

3. Recheck steering box alignment.
4. Tighten adjuster clamps as follows:
- 8 mm: 22 Nm (16 ft. lbs.).
- 10 mm: 47 Nm, (35 ft. lbs.).
5. Check steering wheel for correct alignment.
- If necessary, remove steering wheel and centralize.
6. Carry out a short road test over an even surface.
- Check for correct alignment of steering wheel.
- Ensure that vehicle follows a straight track.
