Canister Purge Solenoid: Service and Repair

Service repair no - 17.15.47

Remove
1. Disconnect battery earth lead.

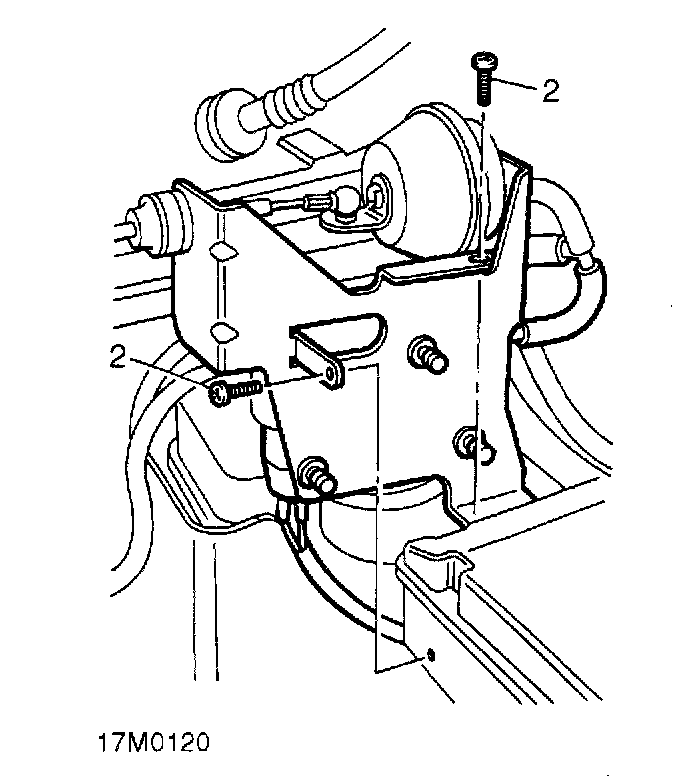

2. Remove 2 screws securing cruise control actuator bracket to suspension control box.
3. Position cruise control actuator assembly aside.







4. Release vent solenoid from EVAP canister bracket for access to hose clip and connector.

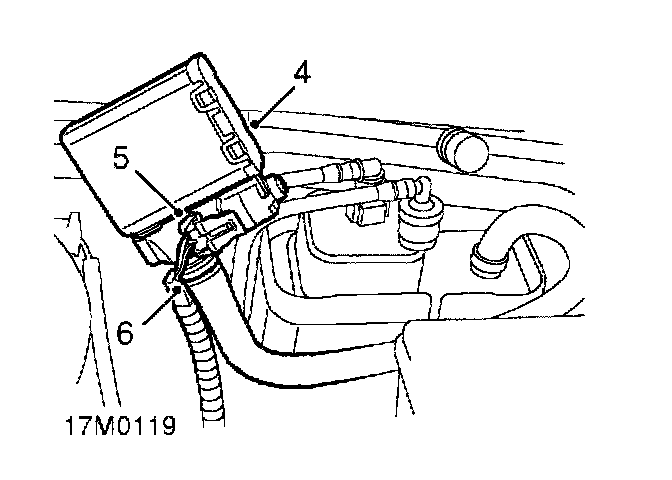

5. Disconnect multiplug from vent solenoid.
6. Release clip and remove vent solenoid from hose.

Refit
7. Fit vent solenoid to hose and secure hose clip.
8. Connect multiplug to vent solenoid.
9. Position vent solenoid to bracket and engage clip.
10. Align cruise control actuator bracket to suspension control box and secure with screws.
11. Connect battery earth lead.
