Range Rover SE (LP) V8-4.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

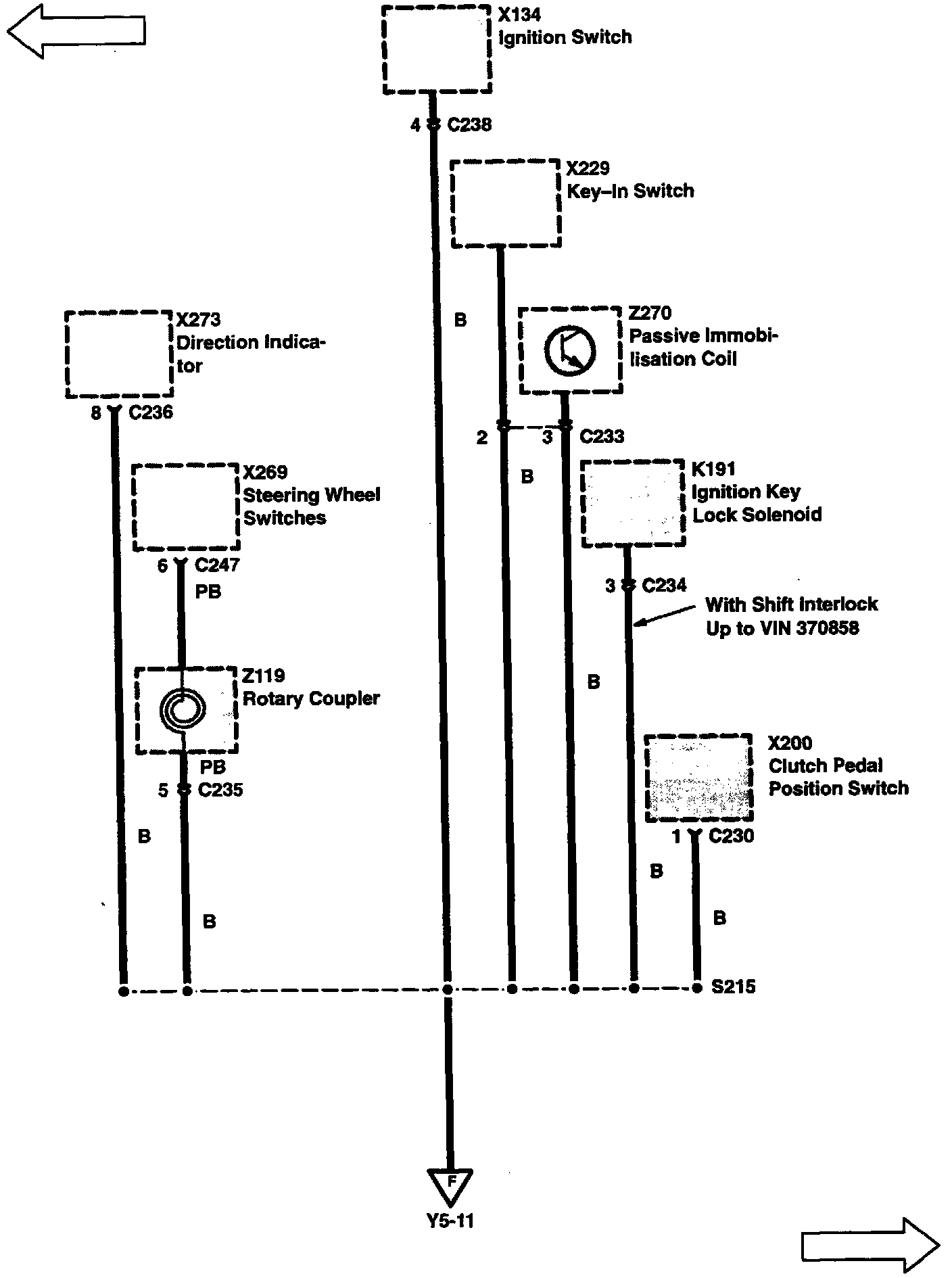

Splice Distribution
>>
S215
S215
Y5-9:
