Land Rover
>>
1997
>>
Range Rover SE (LP) V8-4.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

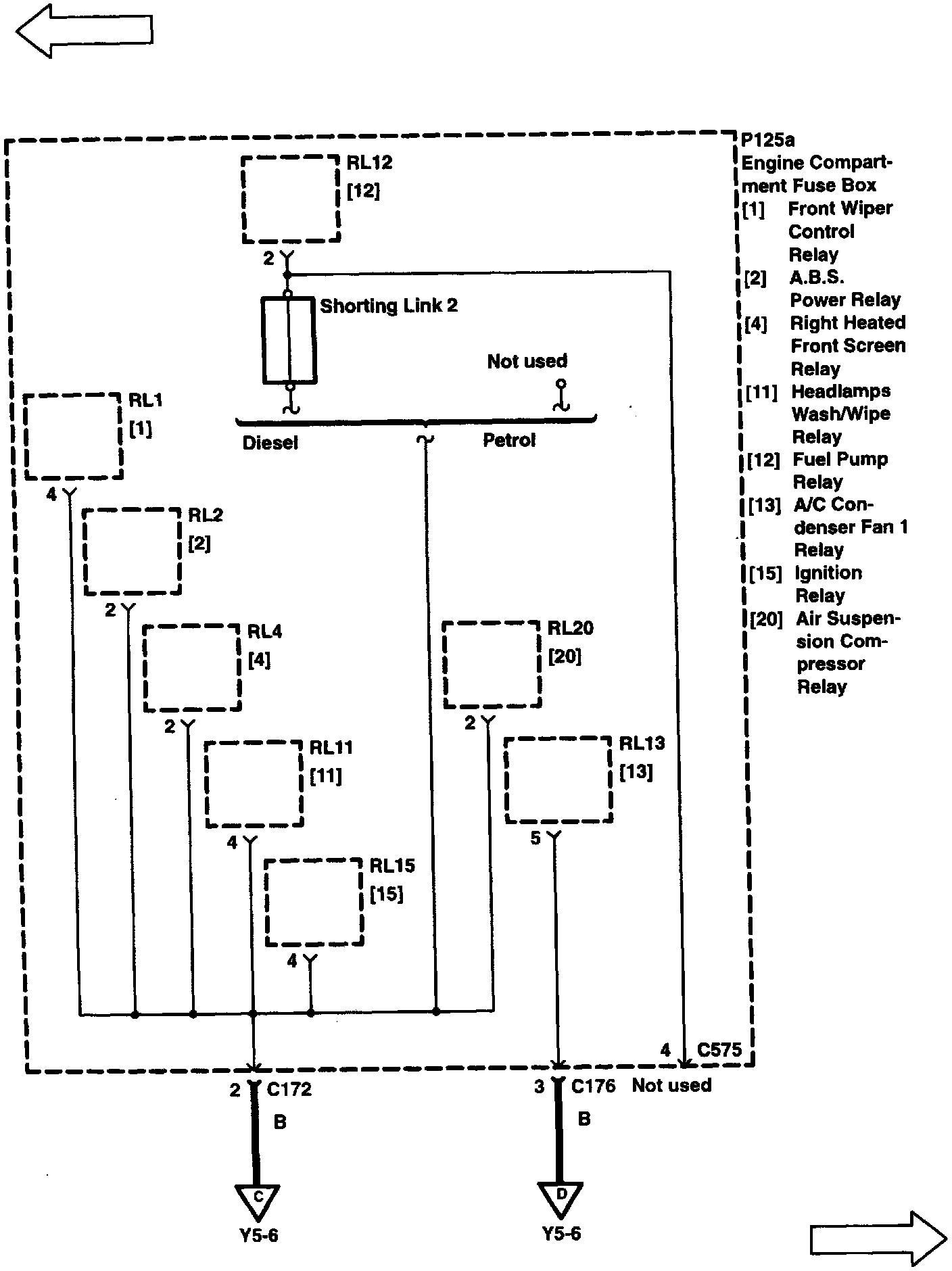

Ground Distribution
>>
E167
E167
Y5-5:
