Home
>>
Land Rover
>>
1997
>>
Range Rover SE (LP) V8-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>

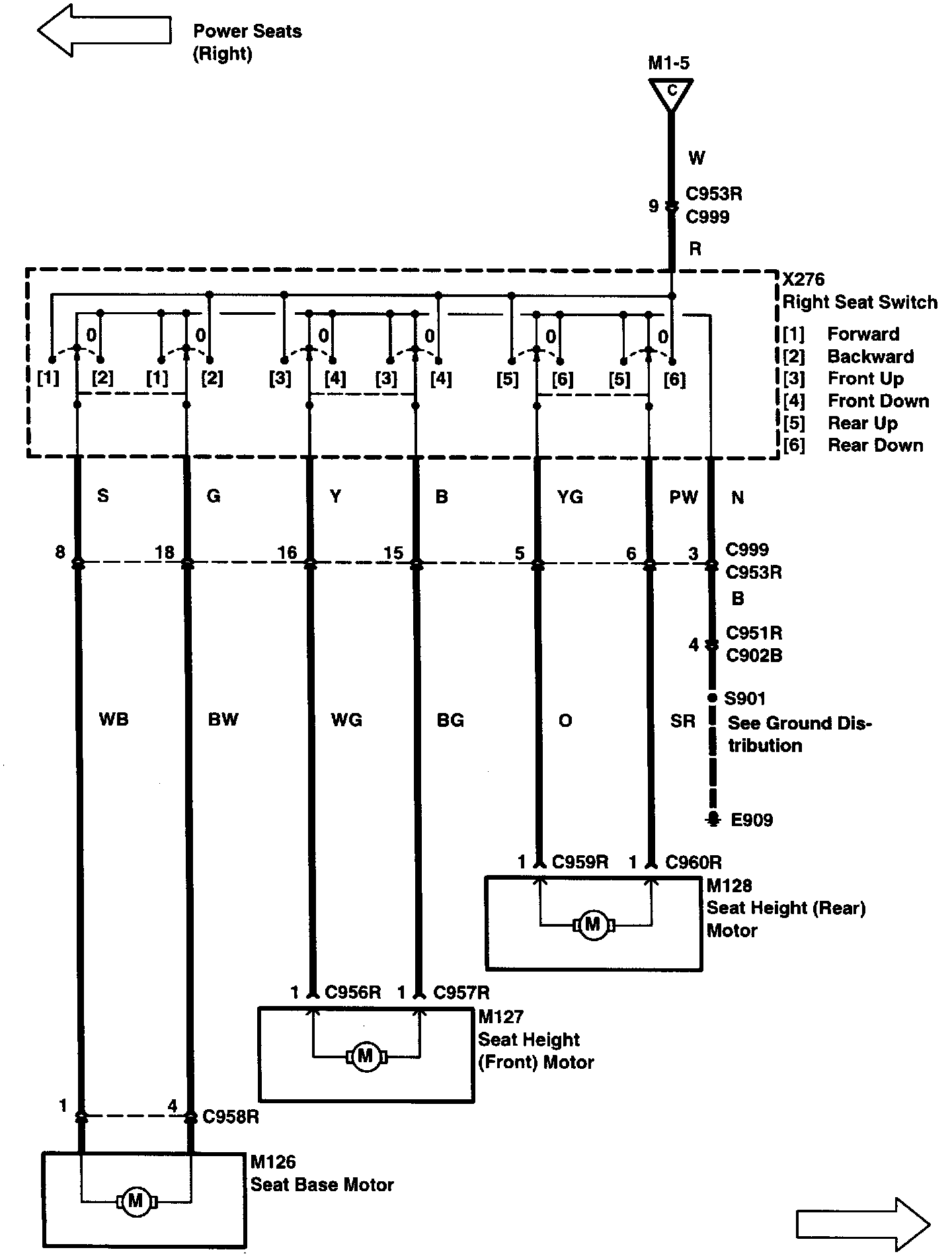

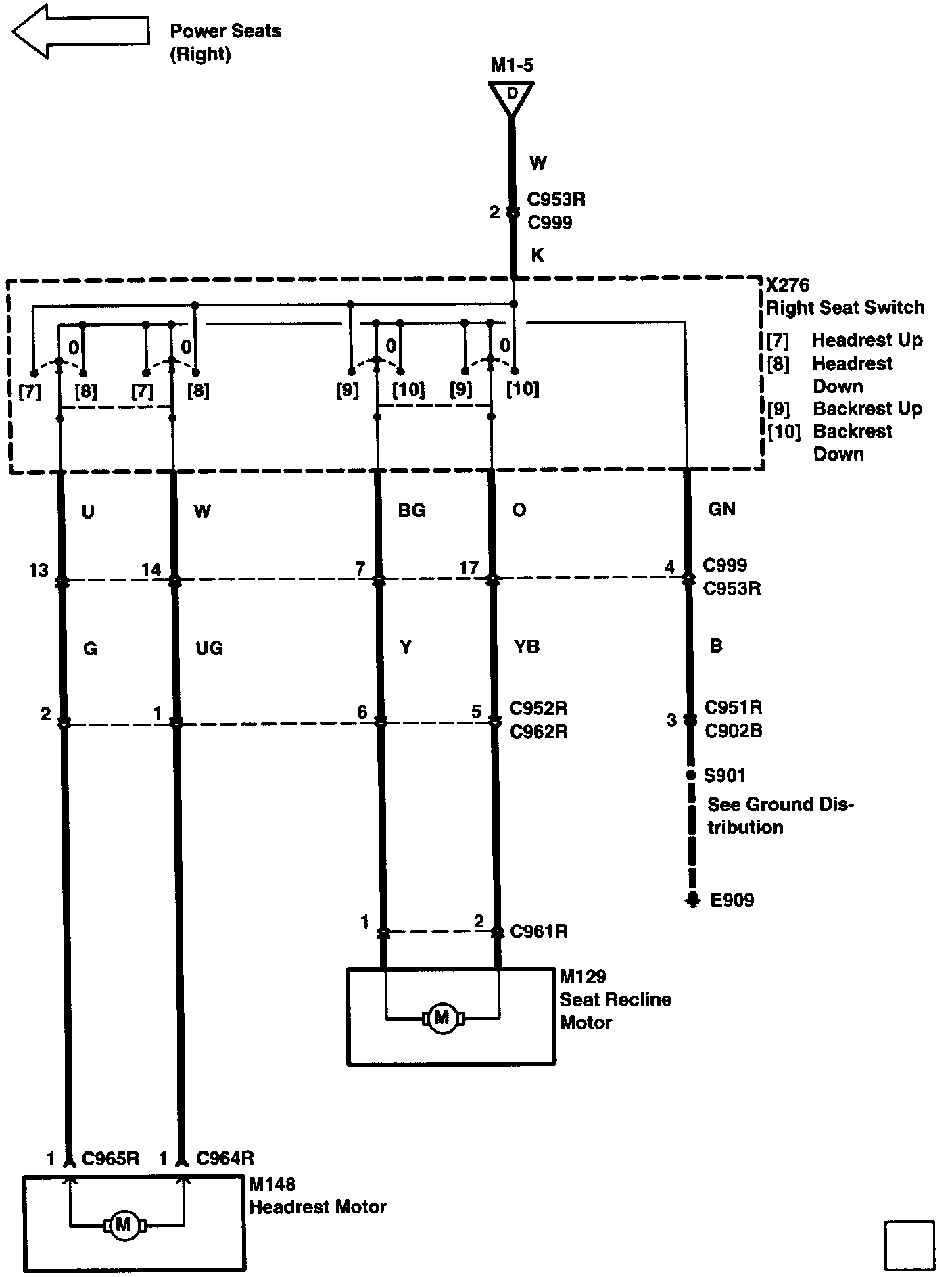

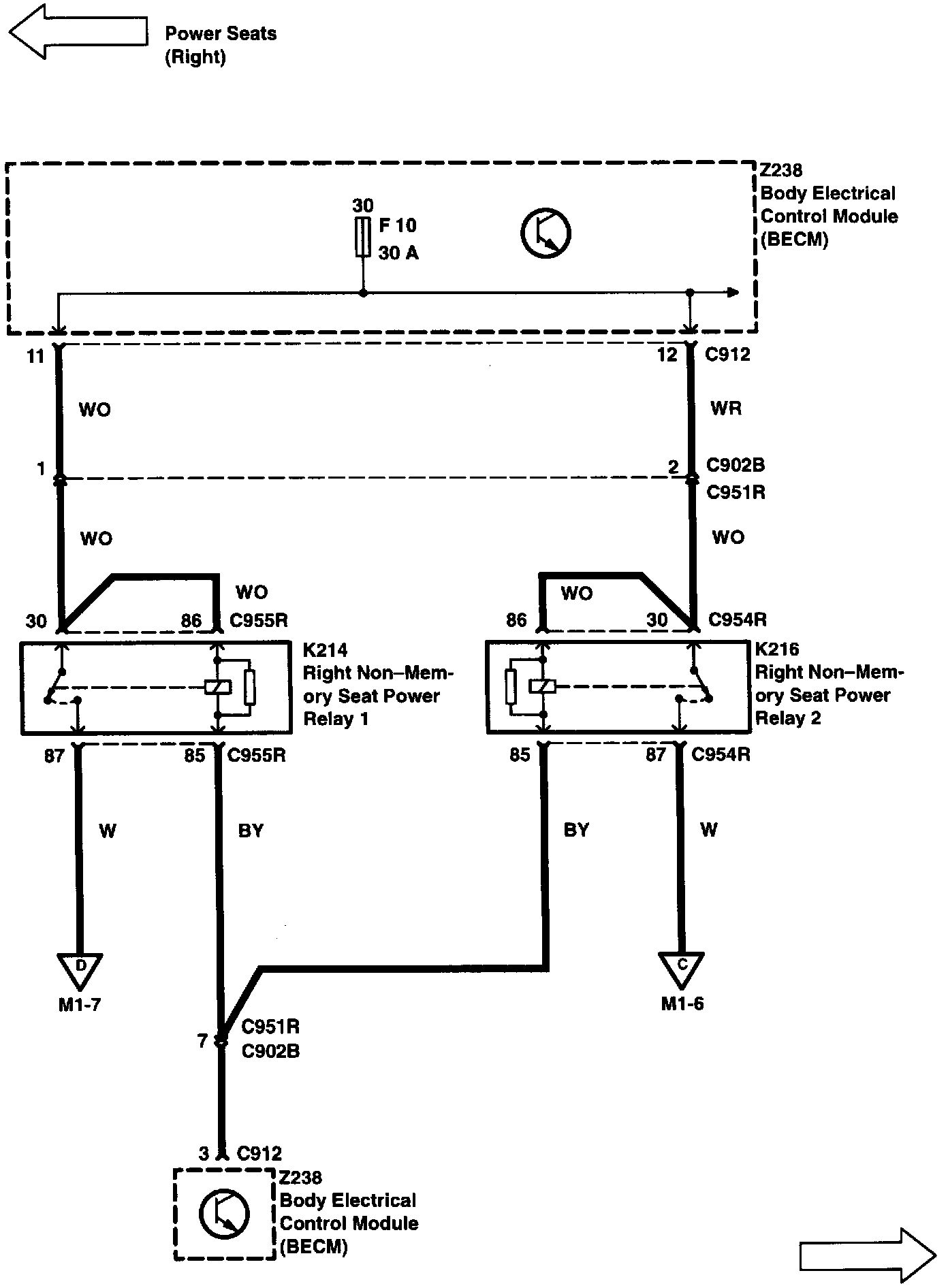

System Diagram
>>
Power Seats
>>
Right
Right
M1-5:
M1-6:
M1-7:
