Home
>>
Land Rover
>>
1997
>>
Range Rover SE (LP) V8-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>

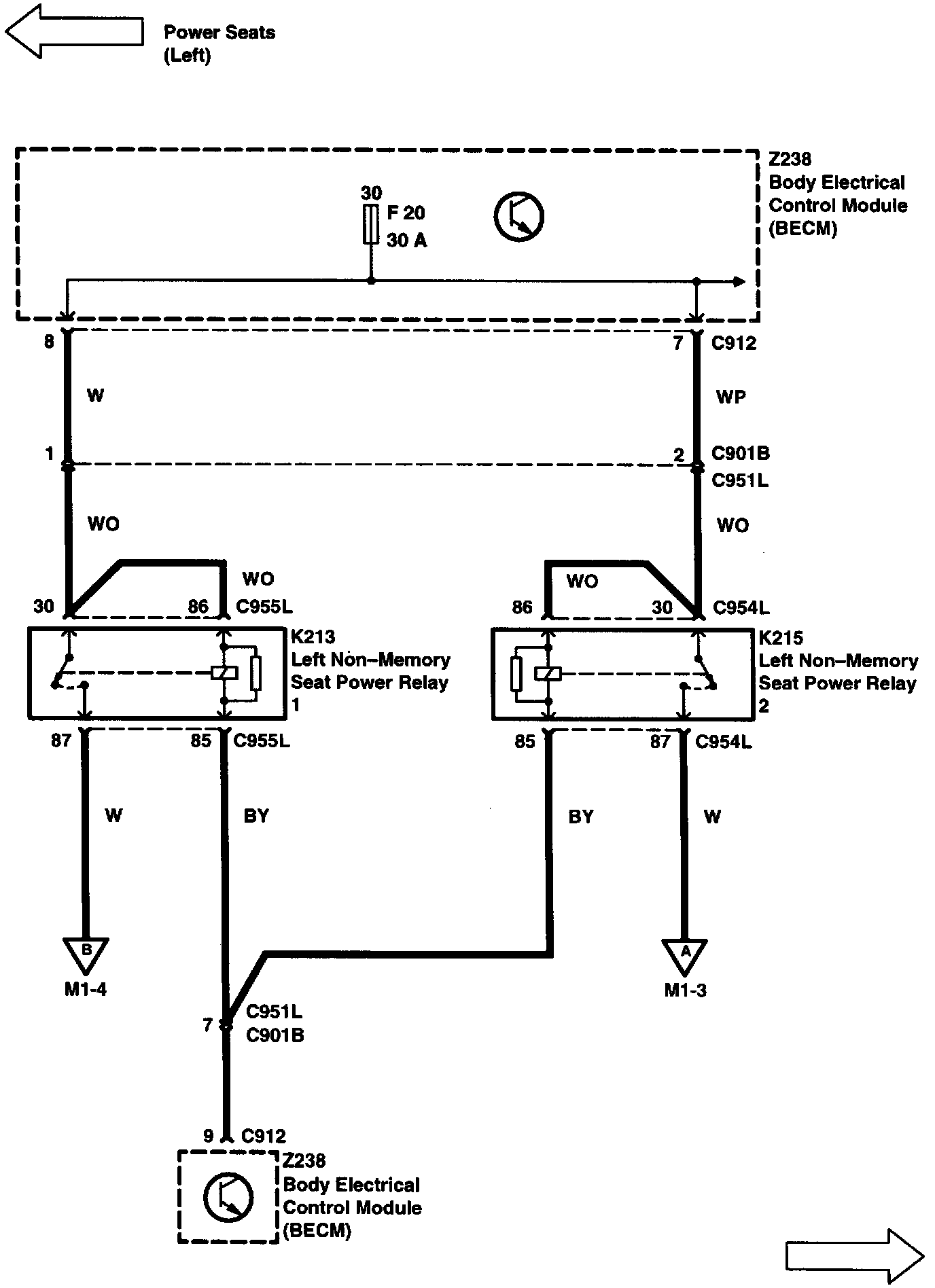

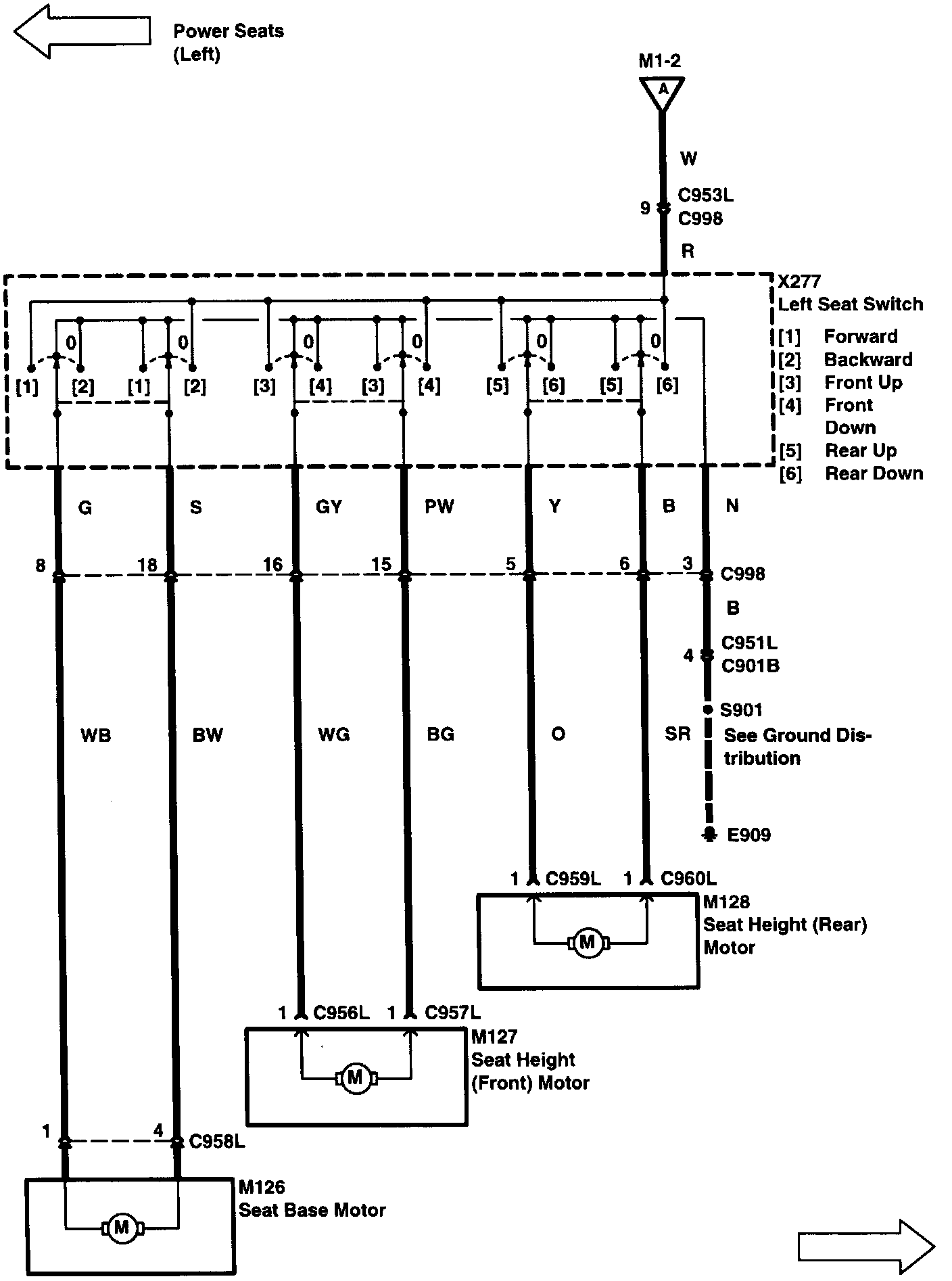

Power Seats
>>
Left
Left
M1-2:
M1-3:
M1-4:
