Range Rover SE (LP) V8-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>

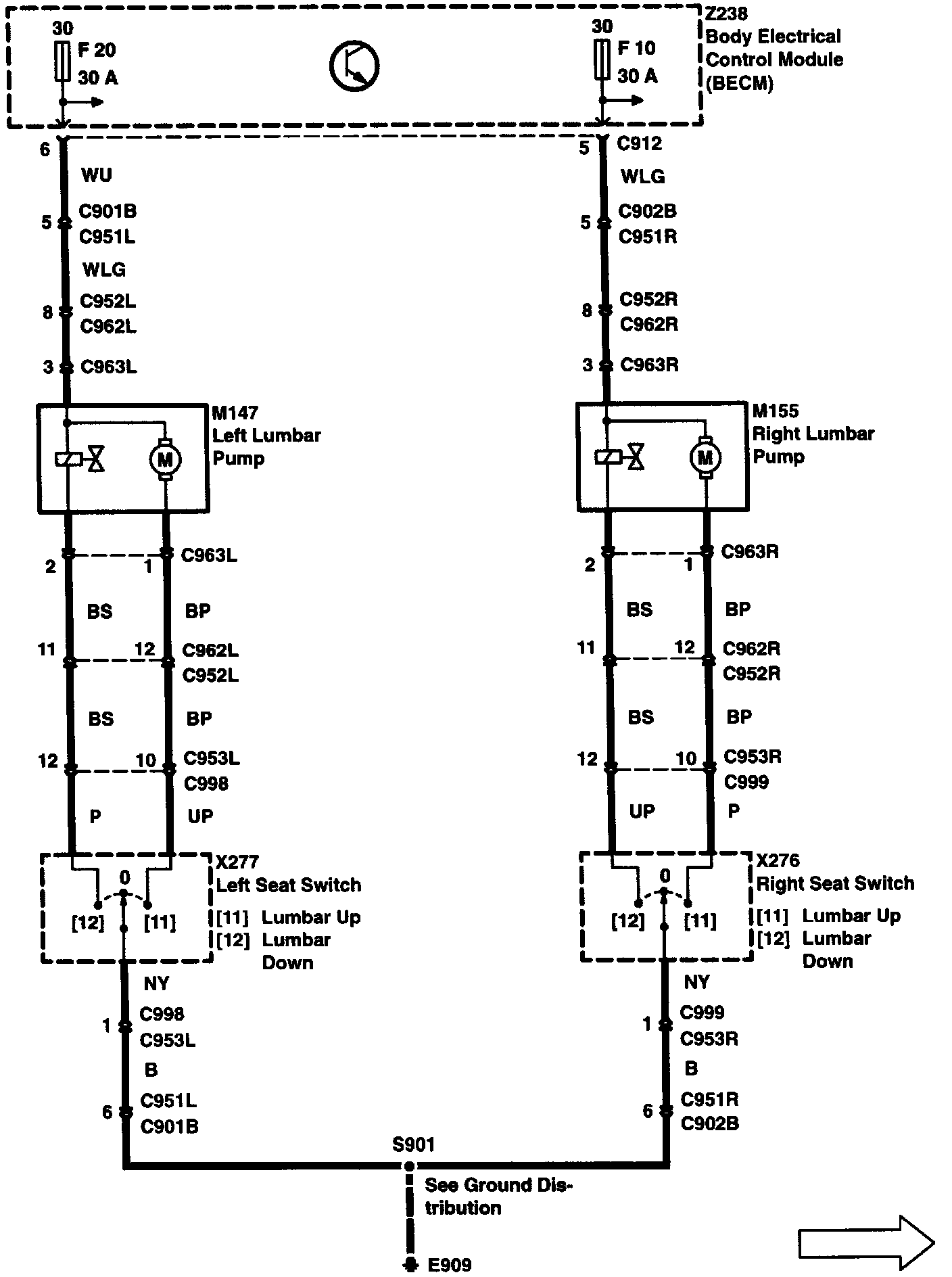

Power Seats
>>
General
General
M1-1:
