Home >> Land Rover >> 1997 >> Range Rover SE (LP) V8-4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Mirrors >> System Diagram >> Power Mirrors

Power Mirrors

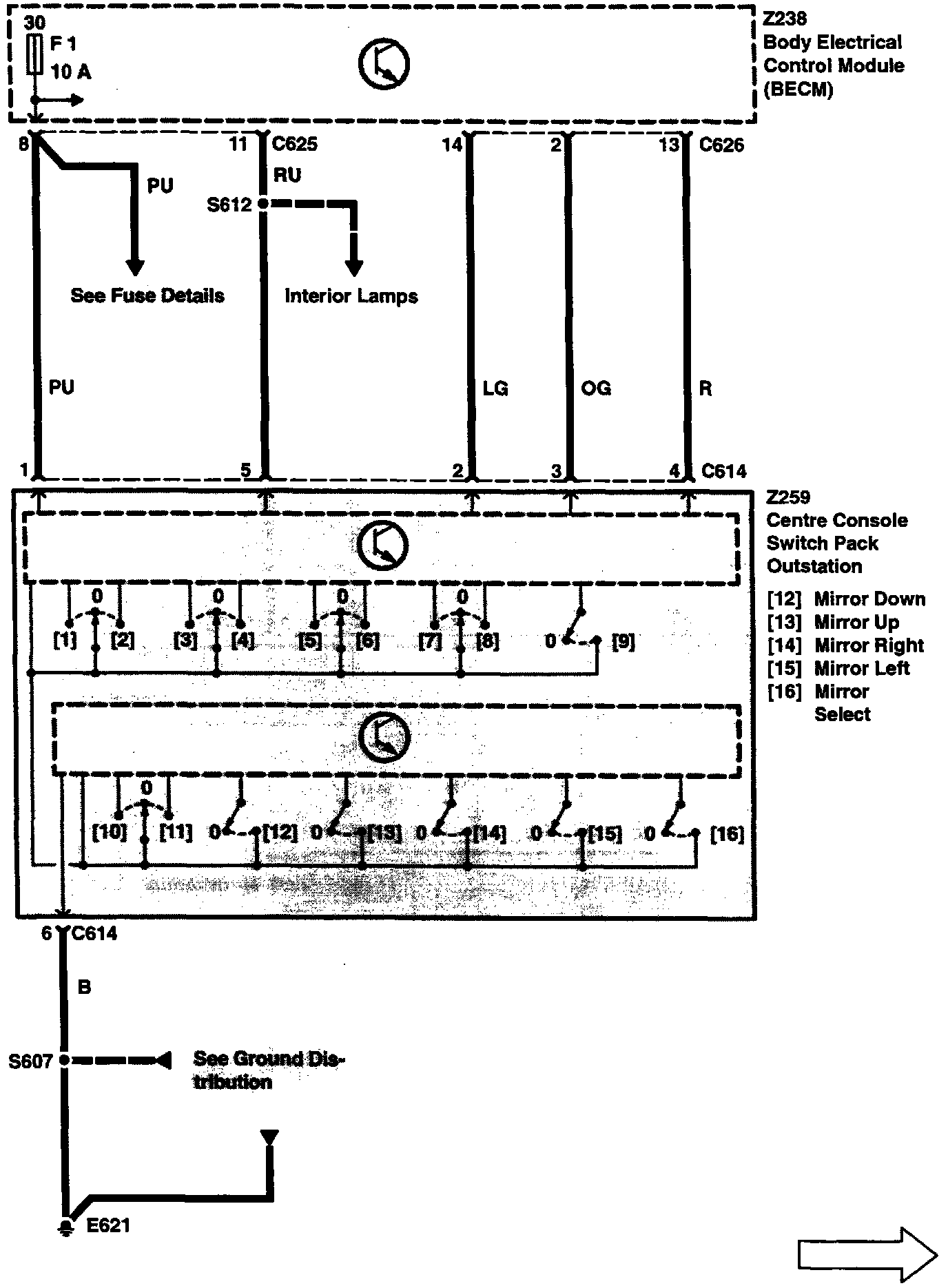

M3-1:

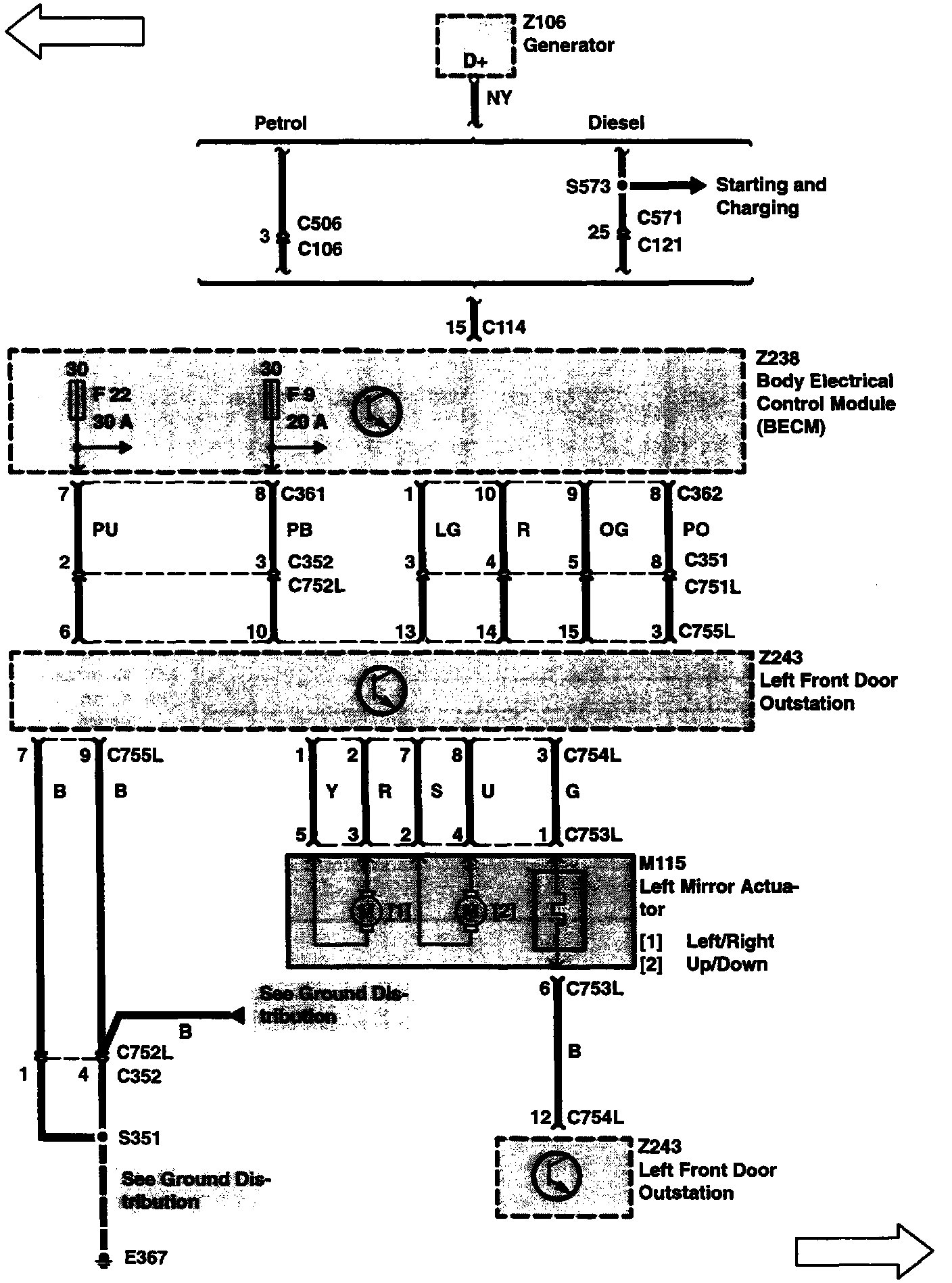

M3-2:

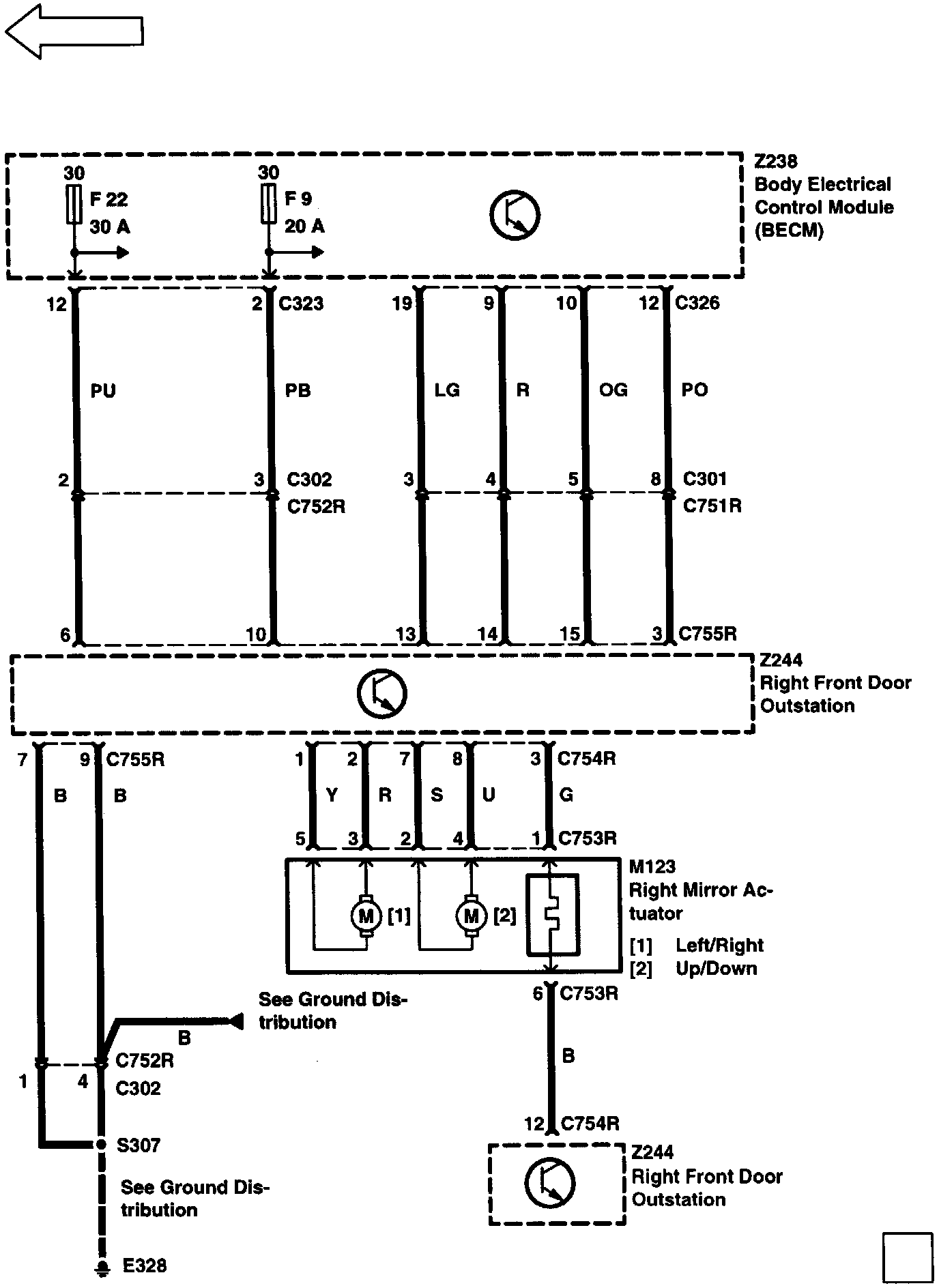

M3-3:
