Rear

REMOVAL
1. Remove two nuts, bolts, washers and rubber bushings from ball joint links and lower anti-roll bar (1) to clear links.
2. Remove cotter pin and loosen castellated (2) nut a few turns.

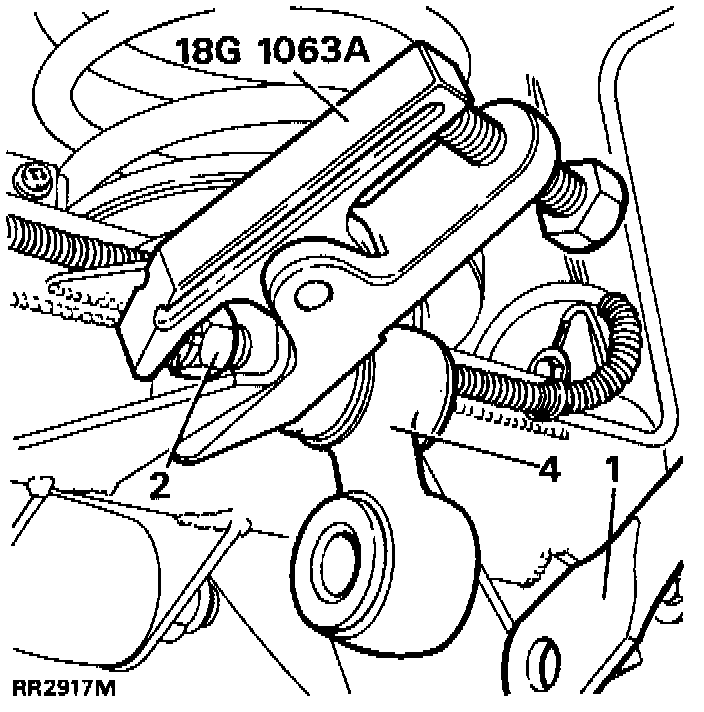

3. Release ball joint using special tool No. 1 8G 1 063A, or equivalent, as shown.
4. Remove castellated nut (2) and ball joint link (4).

INSTALLATION
1. Install ball joint link (4) arm and castellated nut (2).
- Point ball joint link (4) arm down as shown, then tighten to 40 Nm and install new cotter pin.
2. Align anti-roll bar (1) to ball joint links.
3. Install bolts, washers and rubber bushings using new self locking nuts to secure anti-roll bar (1) to ball joint links (4), then tighten to 68 Nm.
