Land Rover
>>
1997
>>
Discovery I (LJ) V8-4.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Splice Distribution
>>

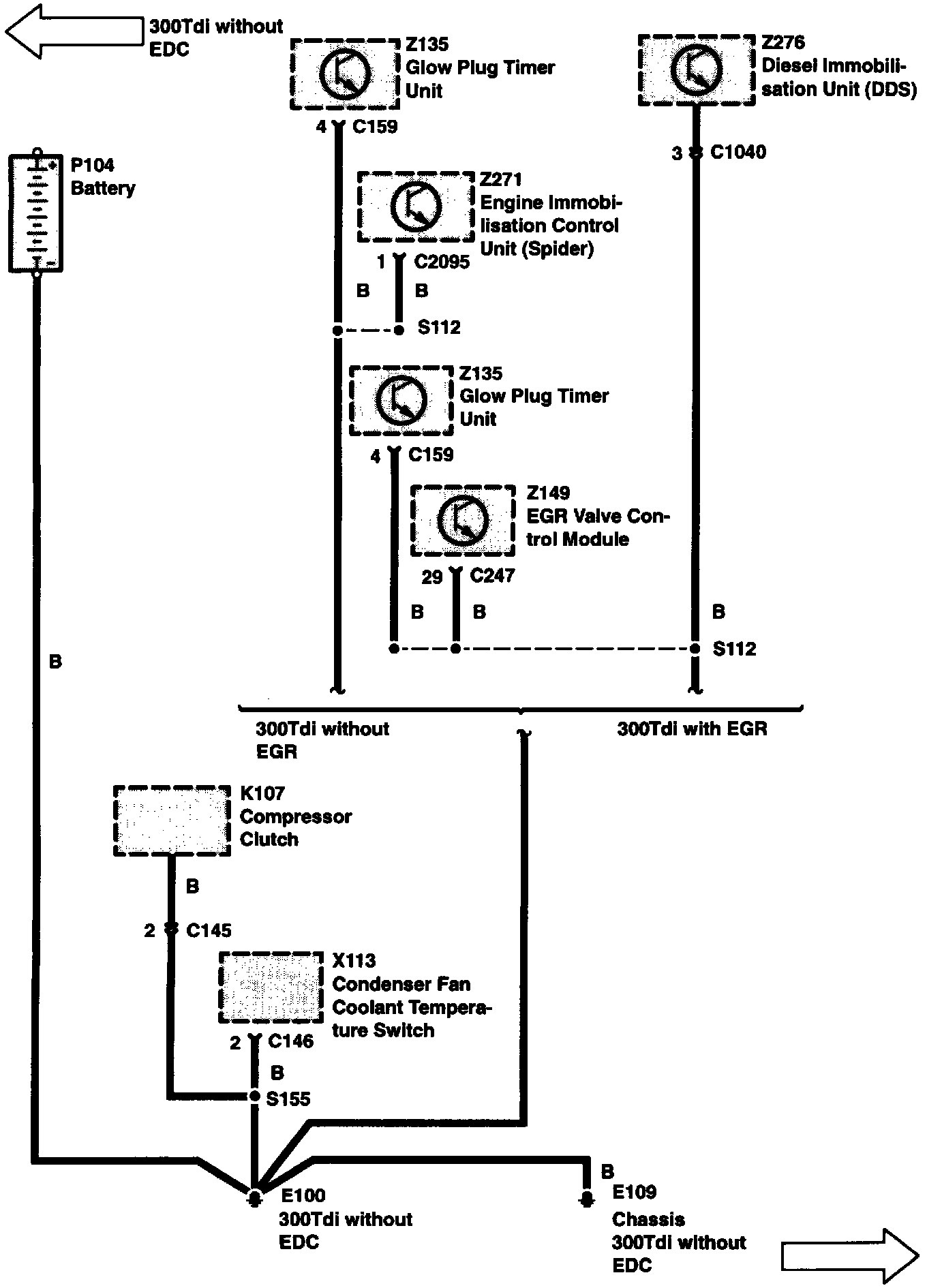

S155
S155
Y5-6:
