Throttle Valve Cable/Linkage: Adjustments

1. Release and remove kick-down cable clevis pin.
2. Loosen locknut and release kickdown cable from abutment bracket.
3. Release outer cable sleeve from clip on rear of LH cylinder head.
4. Holding cable as straight as possible, extend inner cable to first detent.

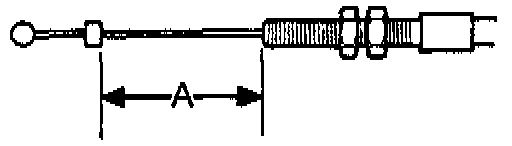

5. With inner cable extended, check dimension A between end of threads and crimped sleeve.
Dimension A = 42 mm ±3 mm (1.65 ±0.10 inch).
6. Connect cable to abutment bracket and install locknut.
7. Secure outer cable sleeve to clip on rear of LH cylinder head.
8. Connect kick-down cable to throttle lever and secure with clevis pin.

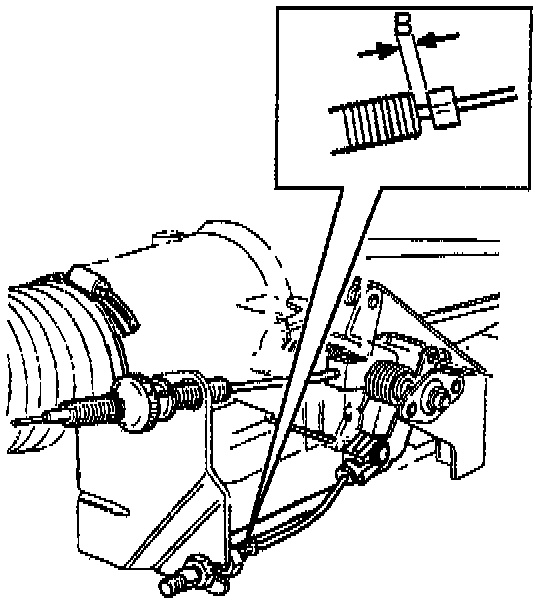

9. Adjust outer cable until crimped sleeve is dimension B from end of outer cable.
Dimension B = 1 mm (0.04 inch).
10. Tighten locknut.
