Front Seat Belts

Remove

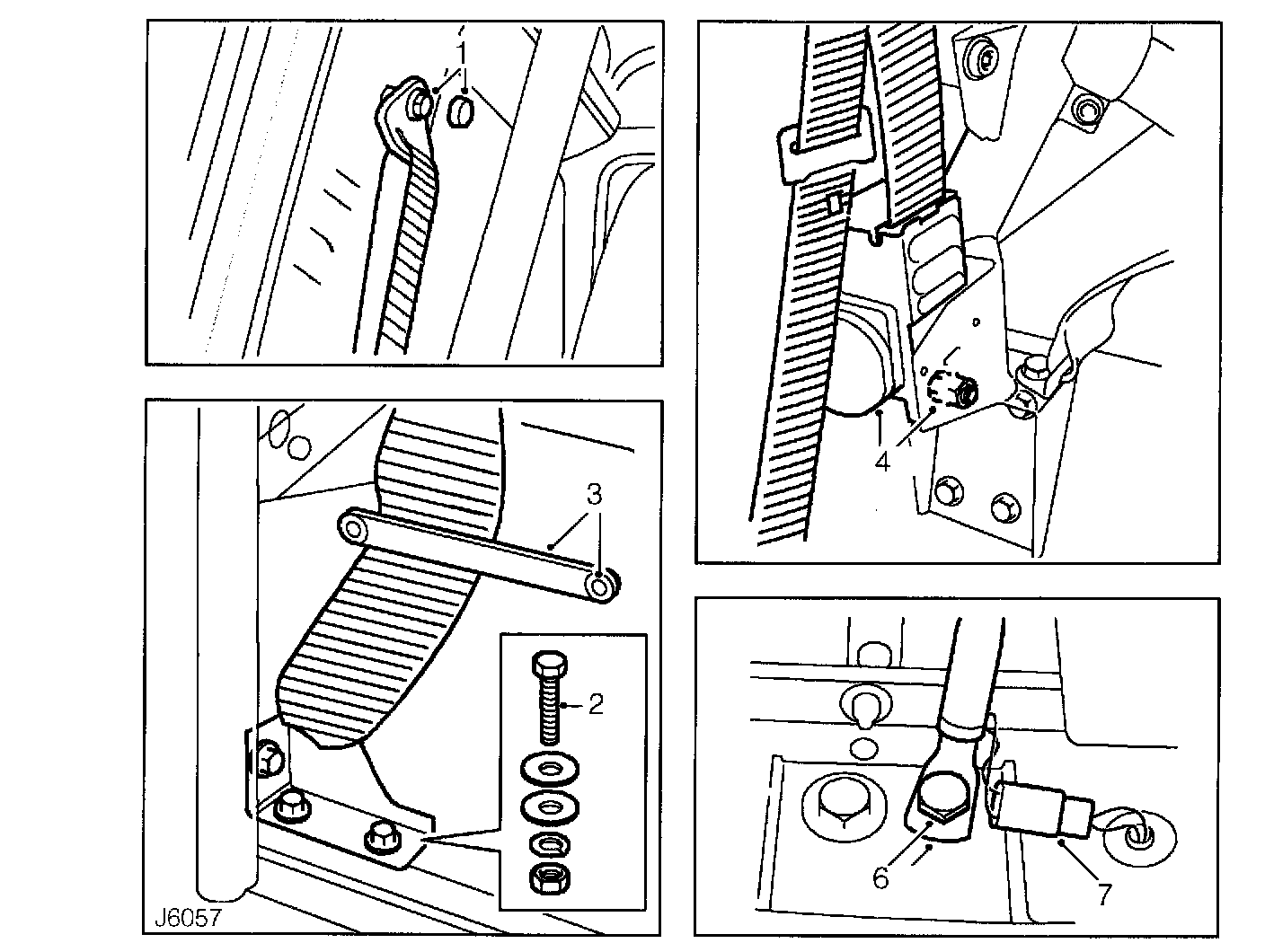

1. Remove cap and unscrew seat belt guide bracket fixing bolt from 'B/C' post.
2. Remove 3 bolts and plain washers securing seat belt mounting bracket to body on outside of seat base.





3. Prise seat belt retaining clip from side of seat mounting and remove trim studs.
4. Unscrew bolt and remove seat belt inertia reel from roll-over bar mounting bracket.
5. Remove seat belt and inertia reel assembly.
6. Unscrew bolt and washer and remove seat belt buckle stalk from roll-over mounting bracket.
7. On the driver's side, disconnect harness plug connector of audible warning circuit at buckle stalk.


Refit
8. Reconnect harness plug of audible warning circuit.
9. Position stalk on roll-over bar mounting bracket and tighten fixing bolt to 32 Nm, 24 lbf ft.
10. Secure seat belt inertia reel to roll-over bar mounting and tighten bolt to 32 Nm, 24 lbf ft.
11. Secure seat belt bracket to floor on outside of seat base and tighten bolts to 23 Nm, 17 lbf ft).
12. Fit seat belt retaining clip to side of seat base and secure with trim studs.
13. Extend belt from inertia reel, secure slide bracket to 'B/C' post and tighten bolt to 32 Nm, 24 lbf ft.
14. Refit fixing bolt cap.
