Canister Purge Control Valve: Service and Repair

EVAP CANISTER AND PURGE CONTROL VALVE

Remove

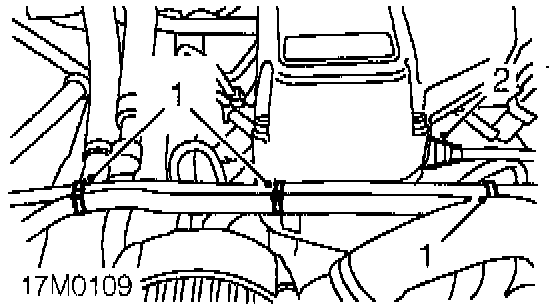

1. Remove 3 clips securing purge pipe to coolant hose.
2. Depress tags and disconnect purge pipe from plenum chamber.

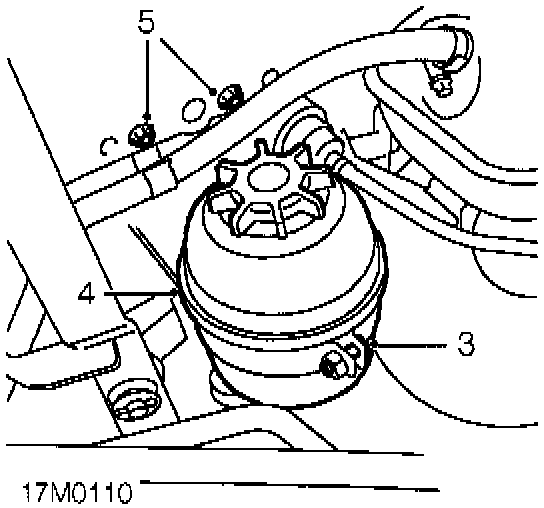

3. Remove PAS reservoir clamp bracket bolt.
4. Open clamp and release reservoir from bracket.
5. Remove 2 nuts securing bracket to wing.

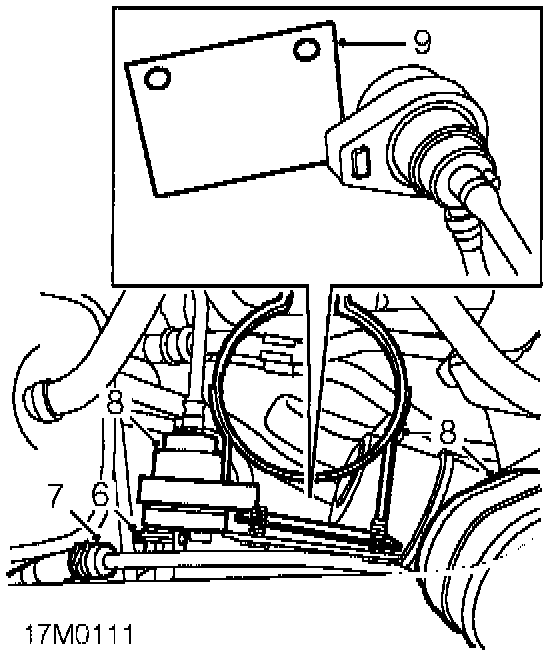

6. Release bracket from wing and disconnect multiplug from purge valve.
7. Release clip and disconnect fuel tank vapor separator pipe from canister pipe.
8. Move PAS reservoir aside, release and remove charcoal canister, purge valve and bracket assembly.

Do not carry out further dismantling if component is removed for access only.

9. Remove bracket from purge valve.

Refit
10. Fit bracket to purge valve.
11. Position assembly, connect vapor separator pipe to canister pipe and secure with clip.
12. Locate purge valve bracket and expansion hose clip to studs and locate assembly to wing.
13. Fit and tighten nuts.
14. Locate PAS reservoir to bracket clip, compress clip, fit bolt and tighten to 8 Nm, 6 lb ft.
15. Connect purge pipe to plenum chamber.
16. Secure purge pipe to coolant hose with clips.
