Fuses and Diodes

Fuses And Diodes:

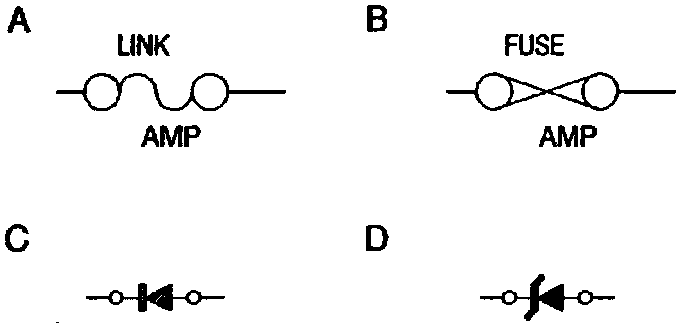

Fusible links (A) and current rated fuses (B), are identified as shown.

The direction of the 'arrow' in a Diode symbol (B) indicates the direction of current flow. The Zener Diode (C) prevents current flow until a precise voltage is reached.
