Side, Tail and Indicator Lamps

Parking Lamp, Indicator Lamp, Tail Lamp, Indicator Lamp, Reverse Lamp

Remove

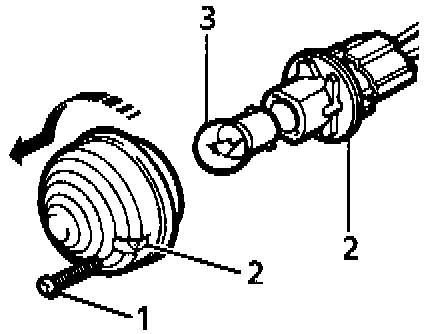

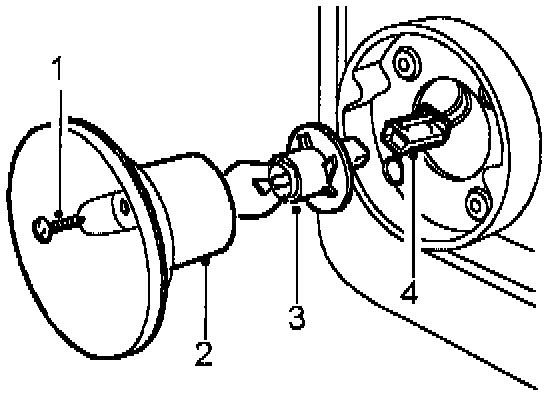

1. Release 2 screws and withdraw lens.
2. Twist counter-clockwise and withdraw bulb holder.
3. Remove bulb, bayonet fixing.
4. Disconnect bulb holder from multiplug.
5. If necessary, remove 2 screws and withdraw lamp boss.

Refit
6. Fit lamp boss, if applicable.
7. Connect bulb holder to multiplug.
8. Fit bulb of same wattage, if renewed.
9. Fit lens.
