Home >> Land Rover >> 1997 >> Defender 90 (LD) V8-4.0L >> Repair and Diagnosis >> Lighting and Horns >> License Plate Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

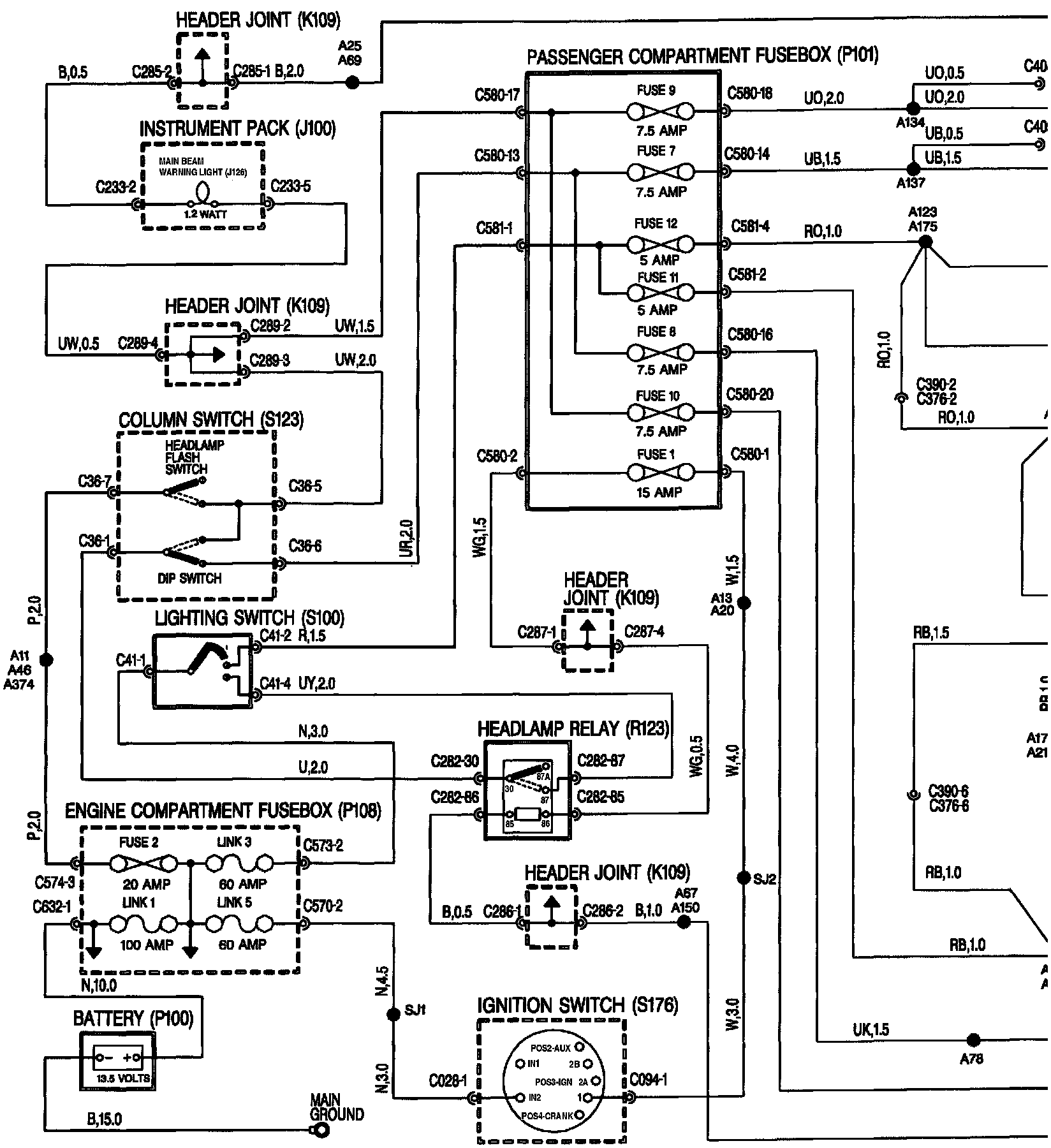

�BI0Exterior Lamps: Head, Side, Tail And Number Plate Lamps:
