Headlamp: Service and Repair

Remove

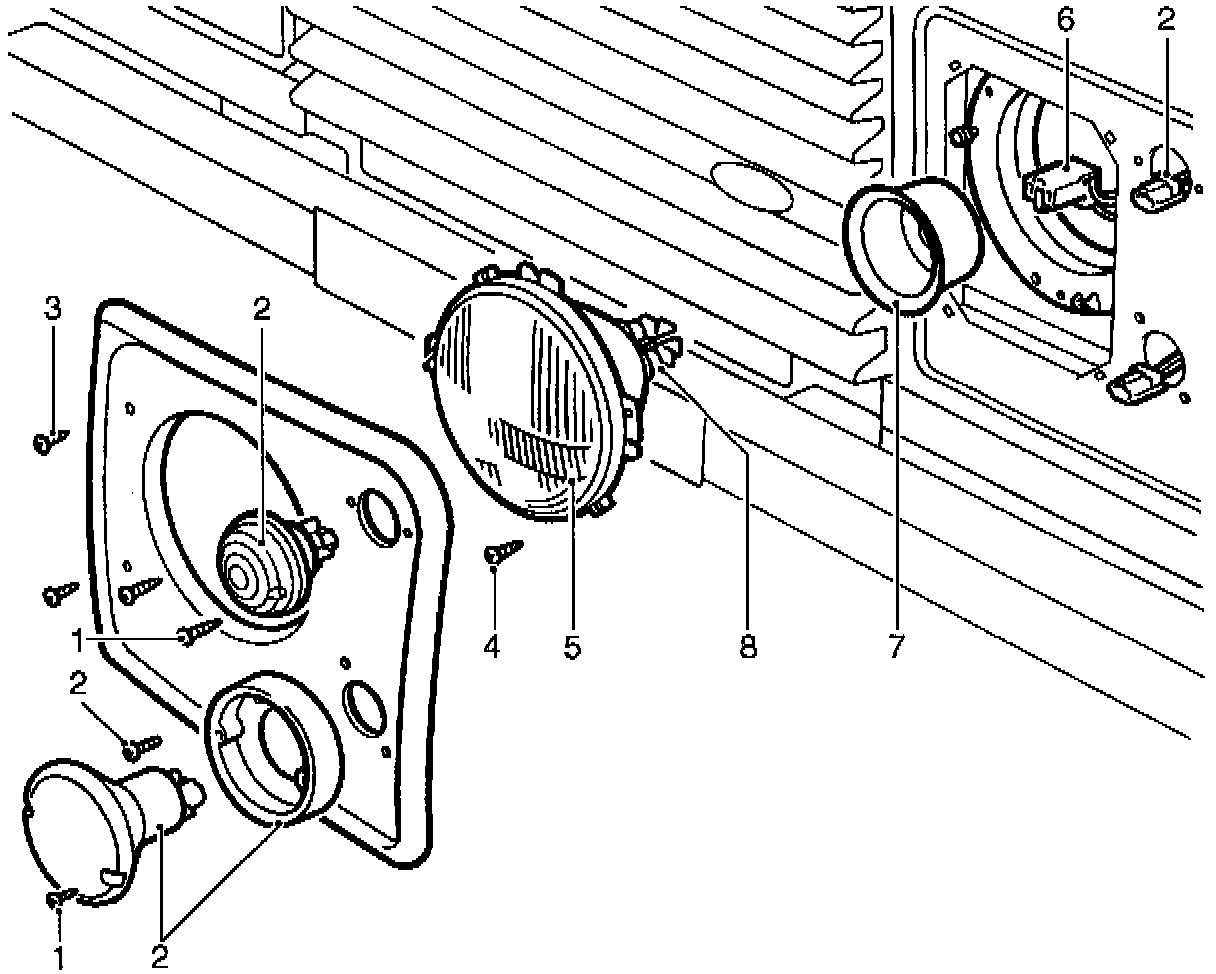

1. Remove screws retaining side and direction indicator lamps.
2. Withdraw lamp units and disconnect plugs. Remove 2 screws and release indicator lamp boss from headlamp finisher.
3. Remove 2 screws and withdraw headlamp finisher.
4. Remove 2 headlamp retaining screws.
5. Rotate headlamp clockwise, disengage from body, and lift out headlamp.
6. Disconnect multi-plug to release headlamp.
7. Remove rubber cover.
8. Remove headlamp assembly.

Refit
9. Fit rubber cover and reconnect multi-plug.
10. Locate headlamp in body and rotate anti-clockwise to engage.
