Headlamp Switch: Service and Repair

Main Light Switch Replacement
1. Remove steering column nacelle.

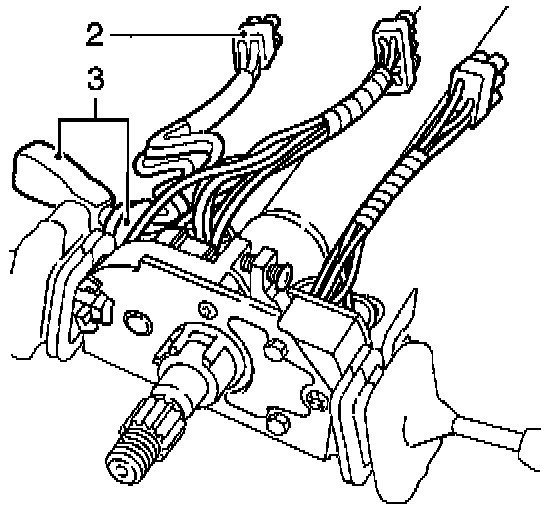

2. Disconnect main light switch multi-plug from main harness.
3. Slacken locknut and release light switch from slot in mounting bracket.

Refit
4. Fit light switch in mounting bracket.
5. Reconnect switch multi-plug.
6. Fit steering column nacelle.
