Brake Lamp: Service and Repair

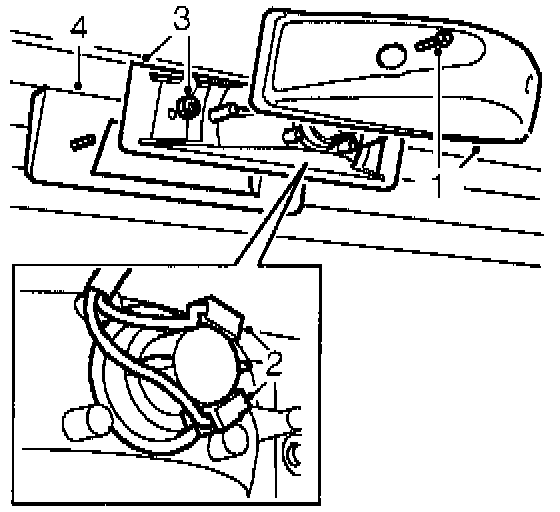

Remove





1. Remove 2 screws and remove stop lamp cover.
2. Disconnect Lucars from bulb holder.
3. Unscrew 2 nuts and remove lamp unit from fixing studs and rubber gasket.
4. Remove gasket.

Refit
5. Position gasket and stop lamp. Secure with two nuts.
6. Connect Lukars to bulb holder.
7. Position cover and secure with screws.
