Tachometer: Service and Repair
Remove1. Remove instrument panel. Service and Repair
2. Release illumination bulb holder and wiring connectors from tachometer.
'-' = BLACK
'+' = WHITE
'2' = RED

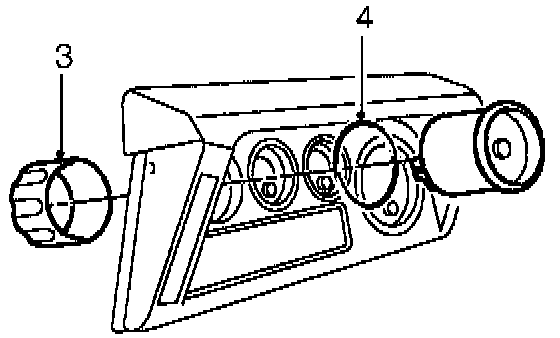

3. Unscrew retaining ring and remove tachometer.
4. Remove 'O' ring from tachometer.
Refit
5. Fit 'O' ring to tachometer and position tachometer into instrument panel.
6. Fit retaining ring, align tachometer and tighten.
7. Fit instrument panel.
