Speedometer Head: Service and Repair

Remove
1. Remove instrument panel assembly. Service and Repair





2. Release tie sucuring harness and multiplug to speedometer.
3. Disconnect multi-plug from speedometer.

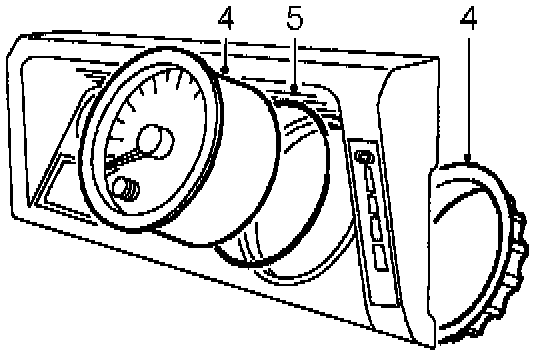

4. Unscrew retaining ring and remove speedometer.
5. Remove 'O' ring from speedometer.

Refit
6. Fit 'O' ring to speedometer and position speedometer into instrument panel.
7. Fit retaining ring, align dial and tighten.
8. Connect multiplug to speedometer.
9. Secure harness and multiplug with tie.
10. Secure instrument panel to fascia cowl.
